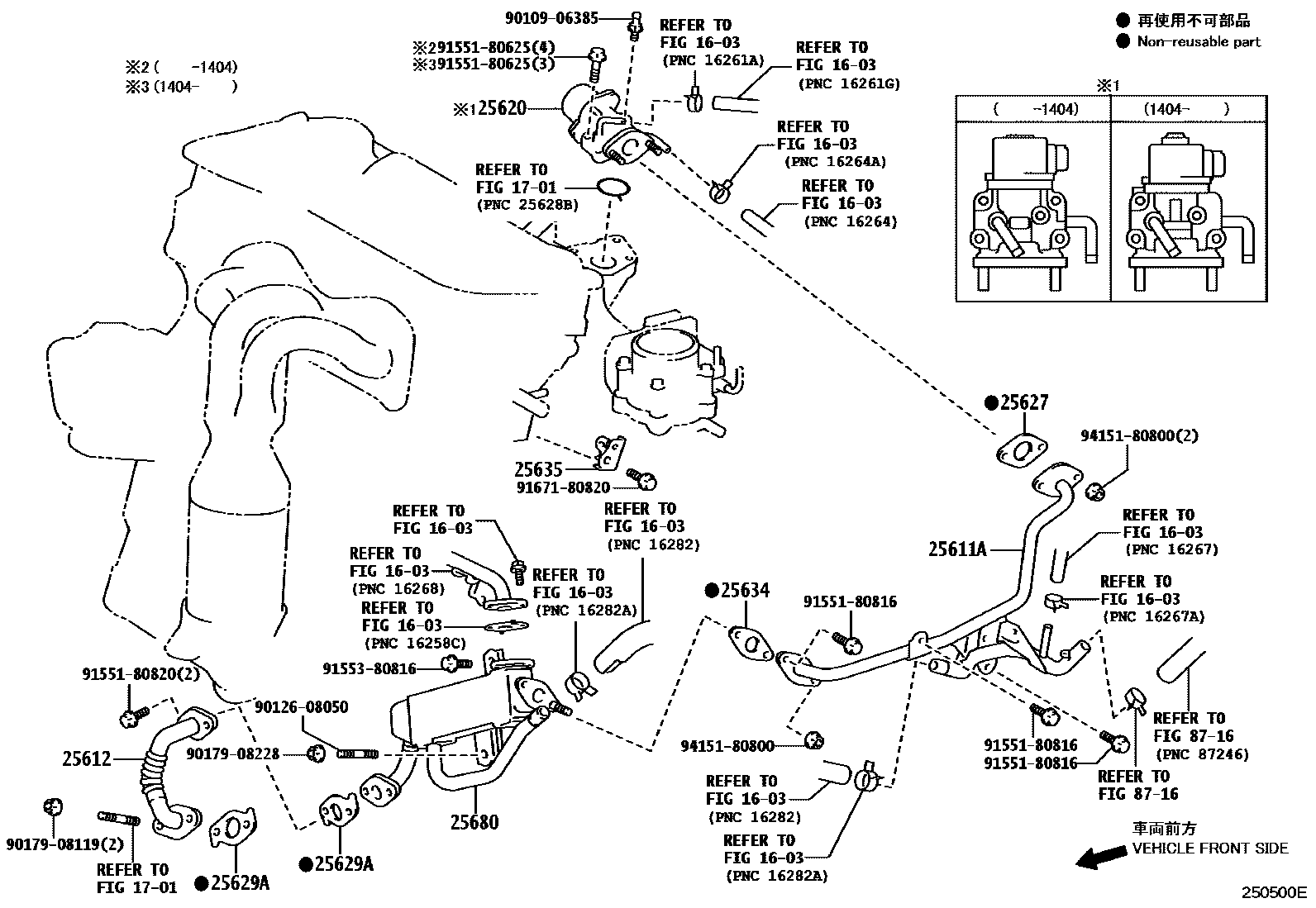

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

1603

1701

25611CONNECTOR, EGR PIPE

main25611-0V020i6ARFSE..ASV51201703

(L)

main25611-36020i6ARFSE..ASV51201703

(J)

main25611-36020i6ARFSE..ASV51201503-201703

25611APIPE, EGR, NO.1

main25611-36011i2ARFXE..AVV50..RHD201310-201704

25612PIPE, EGR, NO.2

main25612-0V020i6ARFSE..ASV51201611

main25612-36010i2ARFXE..AVV50..RHD201310-201704

main25612-36030i6ARFSE..ASV51201503-201610

25620VALVE ASSY, EGR

main25620-36030i2ARFXE..AVV50..RHD201310-201404

sub25620-36060

main25620-36050i6ARFSE..ASV51201503

main25620-36060i2ARFXE..AVV50..RHD201404-201704

25627GASKET, EGR VALVE

main25627-0V010i6ARFSE..ASV51201503

main25627-36010i2ARFXE..AVV50..RHD201310-201704

25629AGASKET, EGR PIPE, NO.2

main25629-0V010i6ARFSE..ASV51201503

main25629-36010i2ARFXE..AVV50..RHD201310-201704

25634GASKET, EGR PIPE

main25634-36010i2ARFXE..AVV50..RHD201310-201704

25635BRACKET, EGR PIPE, NO.1

main25635-36010i2ARFXE..AVV50..RHD201310-201704

25680COOLER ASSY, EGR

main25680-0V010i6ARFSE..ASV51201503

main25680-36010i2ARFXE..AVV50..RHD201310-201401

sub25680-36011

sub16282-36022

main25680-36011i2ARFXE..AVV50..RHD201401-201402

sub25680-36012

main25680-36012i2ARFXE..AVV50..RHD201403-201704

8716

9010906385

main90109-06385

9012608050

main90126-08050

9017908119

main90179-08119

9017908228

main90179-08228

9155180625

main91551-80625

9155180816

main91551-80816

9155180820

main91551-80820

9155380816

main91553-80816

9167180820

main91671-80820

9415180800

main94151-80800

22 parts on this diagram · 2 diagrams in section
