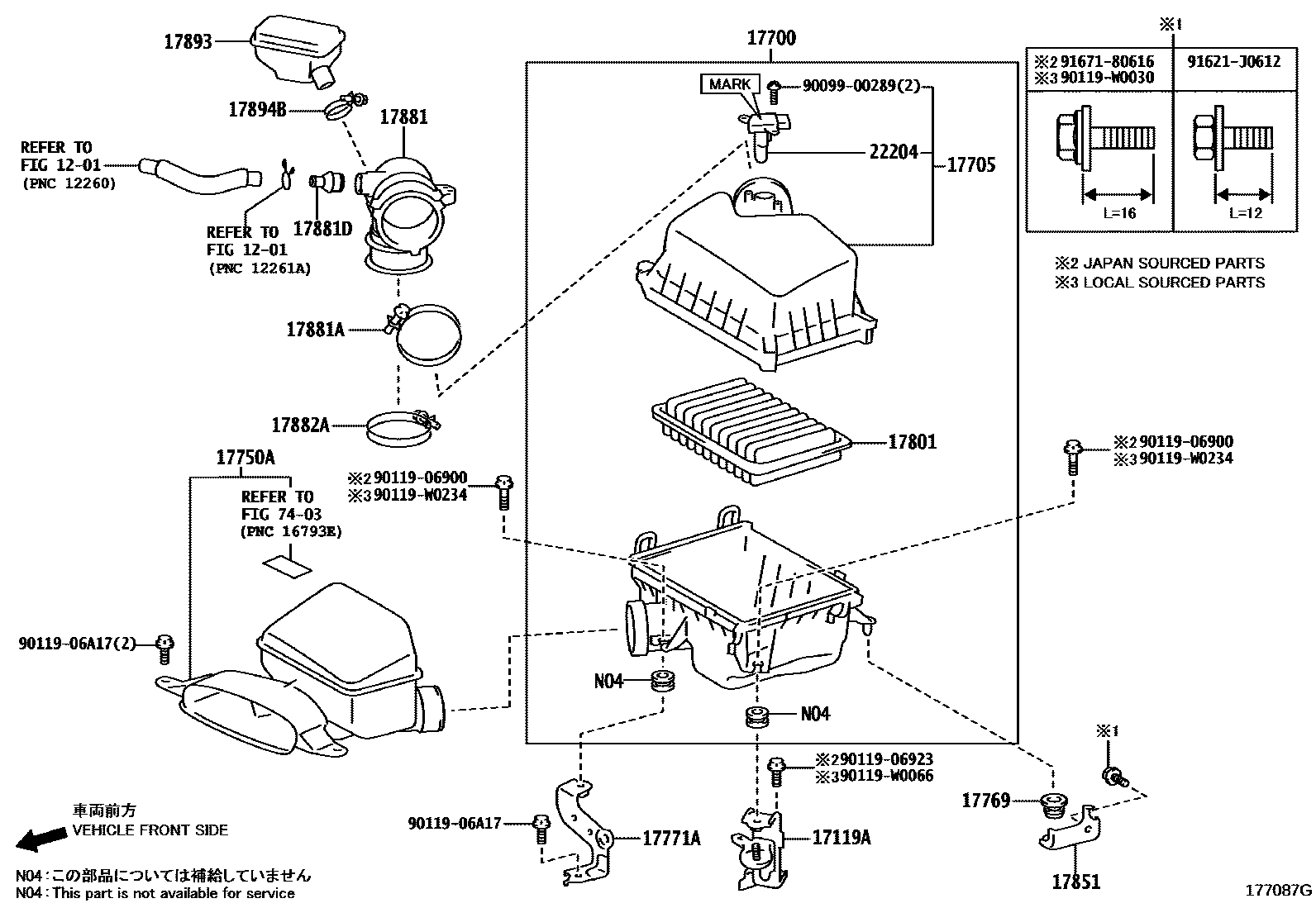

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1

1201

17119ABRACKET, AIR CLEANER

main17119-36010i2ARFE..ASV50..JPP201108-201409

main17119-36020i2ARFXE..AVV50201409-201704

17700CLEANER ASSY, AIR

main17700-0V170i6ARFSE..ASV51201503

main17700-28411i1AZFE..ACV51201208-201411

main17700-31A00i2GRFE..GSV50..JPP201108-201409

main17700-36230i2ARFE..ASV50..RUP201409

main17700-36250i2ARFXE..AVV50201409-201704

17705CAP SUB-ASSY, AIR CLEANER

main17705-0V180i6ARFSE..ASV51201503

main17705-28351i1AZFE..ACV51201208-201411

main17705-31400i2GRFE..GSV50..RUP201108-201411

main17705-36060i2ARFE..ASV50..RUP201108-201411

main17705-36070i2ARFXE..AVV50201409-201704

17750AINLET ASSY, AIR CLEANER

main17750-0H100i1AZFE..ACV51201208-201411

main17750-0V150i6ARFSE..ASV51201503

main17750-36020i2ARFE..ASV50201409-201601

main17750-36021i2ARFE..ASV50..JPP201602-201704

main17750-36030i2ARFXE..AVV50201108-201111

main17750-36031i2ARFXE..AVV50201409-201704

17769SUPPORT, AIR CLEANER

main90480-18006i2ARFE..ASV50..RUP201409

17771ABRACKET, AIR CLEANER

main17771-36030i2ARFE..ASV50..RUP201108-201411

main17771-36040i2ARFXE..AVV50201108-201409

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0V040i6ARFSE..ASV51201503

(L)

main17801-28030i2ARFE..ASV50..JPP201108-201409

main17801-31131i2GRFE..GSV50..JPP201409-201704

main17801-38011i6ARFSE..ASV51201503

(J)

17851BRACKET, AIR CLEANER SUPPORT

main17851-36020i2ARFE..ASV50..JPP201108-201409

17881HOSE, AIR CLEANER, NO.1

main17881-28250i1AZFE..ACV51201208-201411

main17881-31270i2GRFE..GSV50..JPP201409-201704

main17881-36100i2ARFE..ASV50..JPP201108-201409

main17881-36110i2ARFXE..AVV50201108-201409

main17881-36160i6ARFSE..ASV51201503

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10880i2ARFE,6ARFSE..ASV5#..RUP201409

main96111-10900×2i2GRFE..GSV50..JPP201409-201704

17881DTUBE, UNION(FOG AIR CLEANER HOSE)

main90904-06008i2AR#..ASV50,AVV50..JPP201108-201409

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-62002i1AZFE..ACV51201108-201411

main96111-10750i6ARFSE..ASV51201503

main96111-10850i2ARFE..ASV50..JPP201108-201409

17893RESONATOR, INTAKE AIR

main17893-28050i1AZFE..ACV51201208-201411

main17893-31150i2GRFE..GSV50..JPP201108-201409

main17893-36050i2ARFE..ASV50..JPP201409-201704

main17893-36060i2ARFXE..AVV50201409-201704

main17893-36160i6ARFSE..ASV51201503

17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)

main96111-10400i1AZFE..ACV51201208-201411

main96111-10430i2ARFE..ASV50..RUP201409

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0H010i1AZFE..ACV51201208-201411

MARK 22204-0H010

main22204-0P010i1AZFE..ACV51201208-201411

MARK 22204-0P010

main22204-0T010i1AZFE..ACV51201208-201411

MARK 22204-0T010

main22204-0T040i2AR#..ASV50,AVV50..JPP201108-201409

MARK 22204-0T040

main22204-0V010i2GRFE..GSV50..RUP201409

MARK 22204-0V010

main22204-0V020i2ARFE..ASV50..RUP201409

MARK 22204-0V020

main22204-28010i2ARFE..ASV50..RUP201409

MARK 22204-28010

main22204-31020i1AZFE..ACV51201208-201411

MARK 22204-31020

main22204-75040i6ARFSE..ASV51201503

7403

9009900289

main90099-00289

9011906900

main90119-06900

9011906923

main90119-06923

9011906A17

main90119-06A17

90119W0030

main90119-W0030

90119W0066

main90119-W0066

90119W0234

main90119-W0234

91621J0612

main91621-J0612

9167180616

main91671-80616

26 parts on this diagram · 5 diagrams in section
