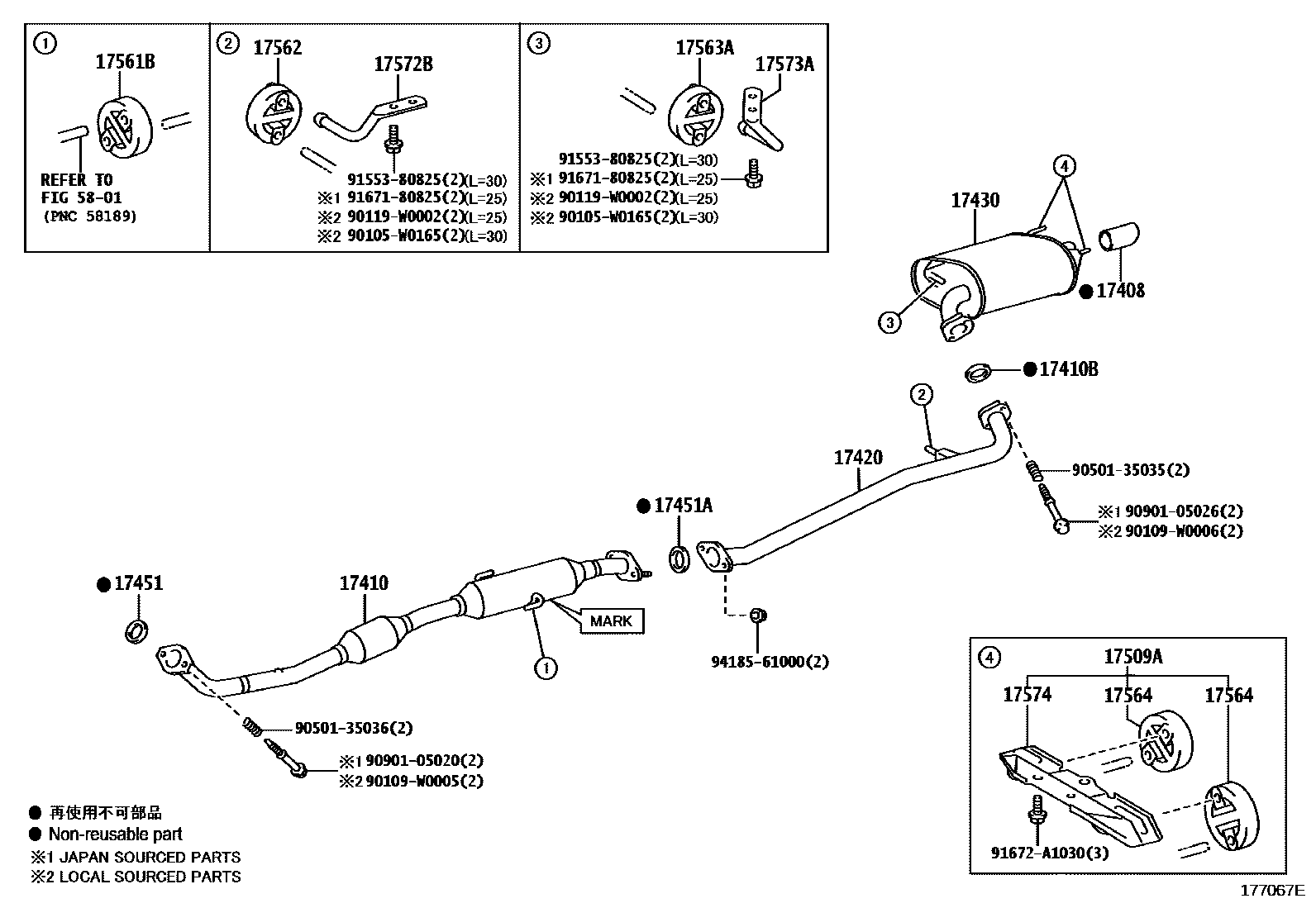

EXHAUST PIPE
17408BAFFLE SUB ASSY, EXHAUST TAILPIPE
17410PIPE ASSY, EXHAUST, FRONT
MARK MY
MARK MX
*114=TOYOTA/X66/Y
*114=TOYOTA/GZ3GX4/Y
*114=TOYOTA/UD2/Y
ECUADOR SPEC
17410BGASKET, EXHAUST PIPE
17451GASKET, EXHAUST PIPE
17451AGASKET, EXHAUST PIPE, NO.2
17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17561BSUPPORT, EXHAUST PIPE, NO.1
(L)
(J)
17562SUPPORT, EXHAUST PIPE, NO.2
(L)
(L)
(J)
(J)
17563ASUPPORT, EXHAUST PIPE, NO.3
(L)
(J)
17564SUPPORT,EXHAUST PIPE, NO.4
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
17574BRACKET, EXHAUST PIPE SUPPORT, NO.4
5801
90105W0165
main90105-W0165
90109W0005
main90109-W0005
90109W0006
main90109-W0006
90119W0002
main90119-W0002
9050135035
main90501-35035
9050135036
main90501-35036
9090105020
main90901-05020
9090105026
main90901-05026
9155380825
main91553-80825
9167180825
main91671-80825
91672A1030
main91672-A1030
9418561000
main94185-61000
29 parts on this diagram · 3 diagrams in section
