V-BELT

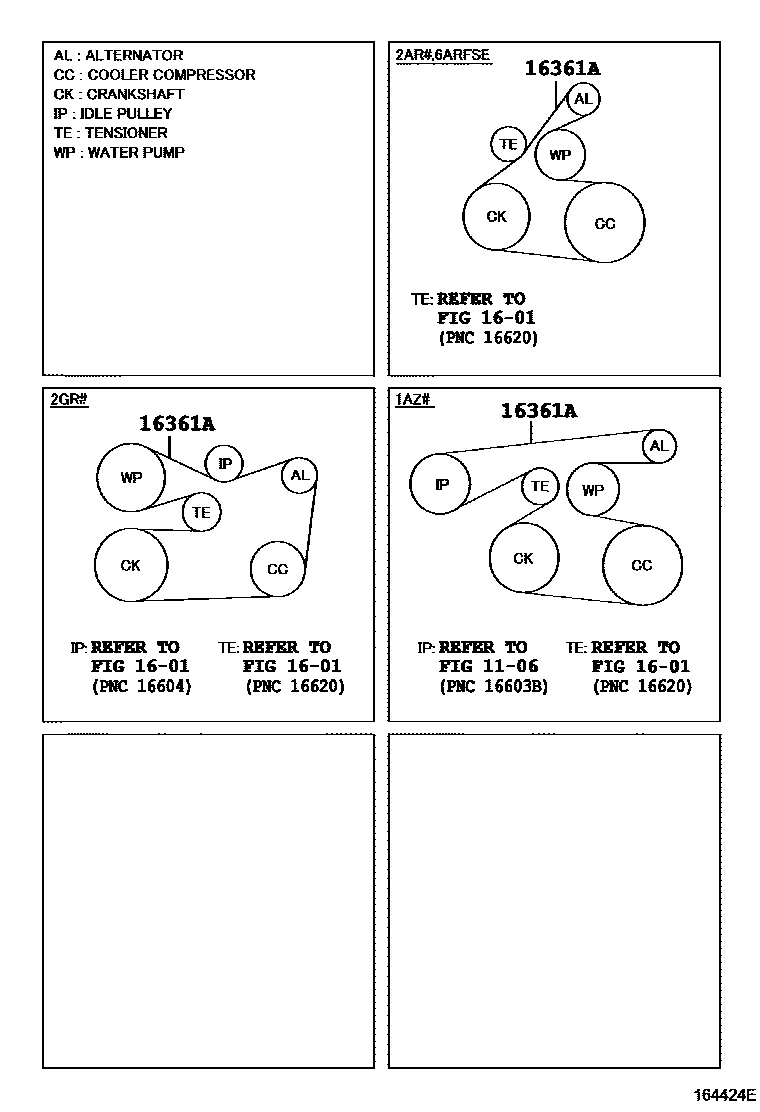

Parts diagram

1106

1601

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02667i201108-201704

BANDO

main90916-02668i201108-201704

MITSUBOSHI

main90916-02731i201503

main99367-C1550i201108-201610

main99367-J1960i201208-201411

main99367-K1550i201611-201704

3 parts on this diagram · 1 diagram in section
