WATER PUMP

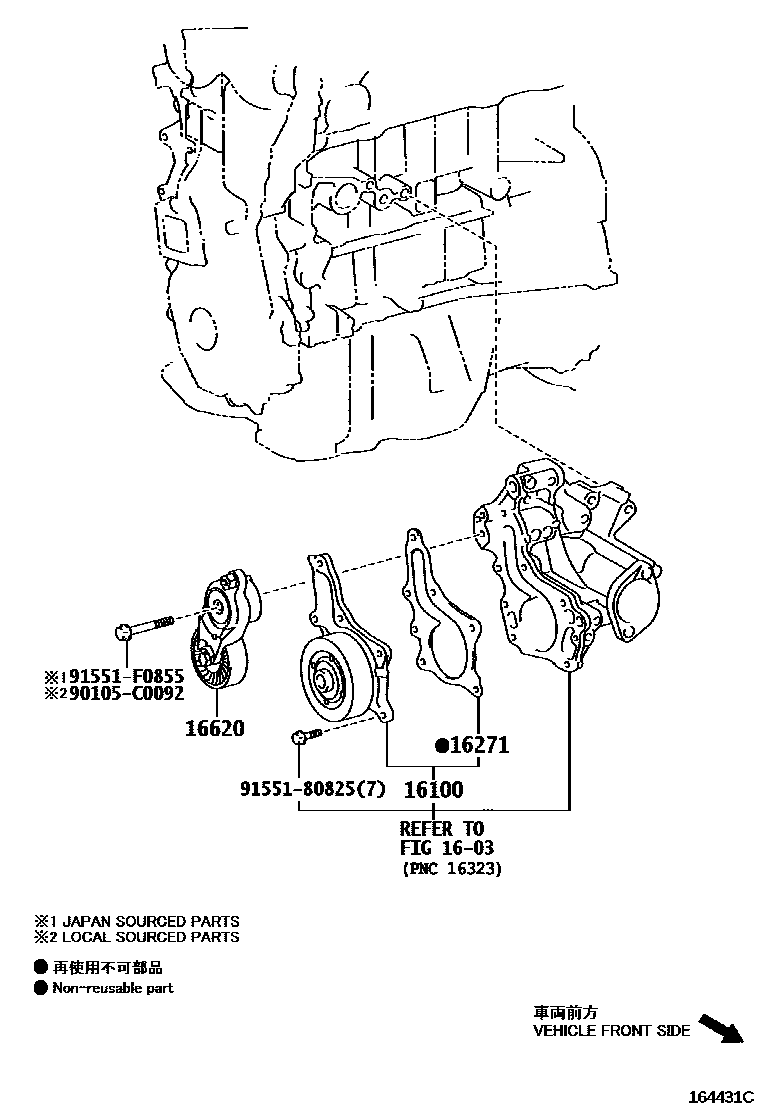

Parts diagram

1603

16100PUMP ASSY, ENGINE WATER

main16100-09600i201411

main16100-09600i201306-201411

*347

main16100-09700i201503

main16100-0H040i¥15,000201208-201411

sub16100-0H050¥13,000

main16100-39456i¥13,800201108-201704

main16100-39515i¥11,800201409-201704

sub16100-39516¥11,800

main16100-39515i¥11,800201108-201411

*107

sub16100-39516¥11,800

main161A0-39025i¥21,000201108-201704

16271GASKET, WATER PUMP

main16271-0V010i¥670201503

main16271-31030i¥1,360201108-201704

main16271-36010i¥610201306-201411

*347

main16271-36010i¥610201108-201411

*107

main16271-36010i¥610201409-201704

main16271-36020i¥460201108-201704

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0H020i¥29,100201208-201301

sub16620-0H021¥24,200

main16620-0H021i¥24,200201301-201411

main16620-0V041i201306-201401

*347

main16620-0V042i201410-201801

*347T/P A:REF.ILLUST

main16620-0V042i201401-201410

*347

main16620-0V050i¥16,100201410-201508

*347T/P B:REF.ILLUST

sub16620-0V051¥11,200

main16620-0V050i¥16,100201503-201508

sub16620-0V051¥11,200

main16620-0V051i¥11,200201509

main16620-0V051i¥11,200201509-201801

*347T/P B:REF.ILLUST

main16620-31040i¥16,700201108-201704

main16620-36010i¥16,100201108-201402

*107

sub16620-36011¥16,100

main16620-36011i¥16,100201402-201509

*107

sub16620-36012¥13,400

main16620-36012i¥13,400201510-201704

*107

sub16620-36013¥10,100

main16620-36013i¥10,100201801

90105C0092

main90105-C0092

9155180825

main91551-80825¥80

91551F0855

main91551-F0855¥100

7 parts on this diagram · 6 diagrams in section
