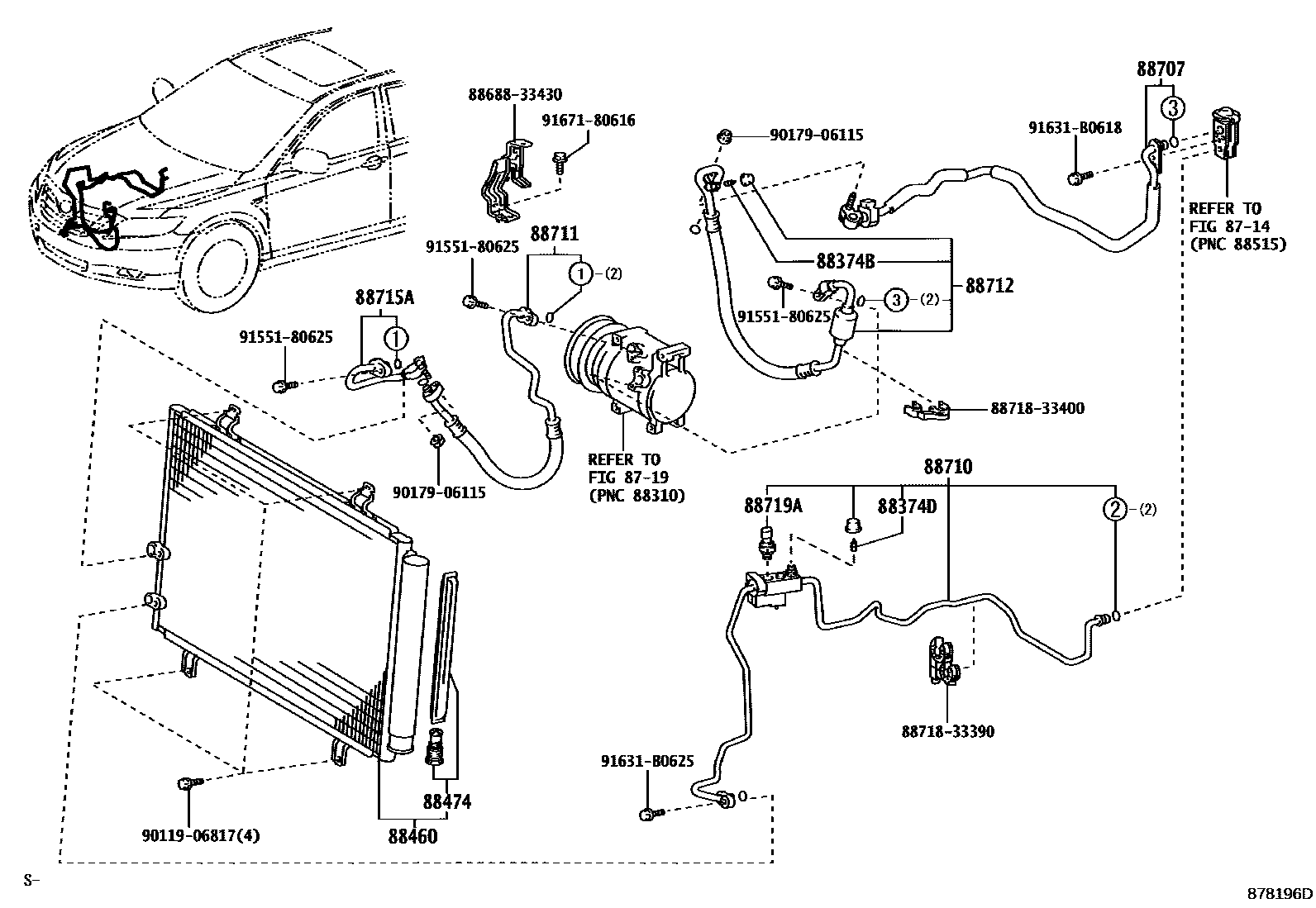

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1O-RING

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iACV40,GSV40200601-201109

88374DVALVE, SERVICE NO.3

main88374-30010iACV40,GSV40200601-201109

88460CONDENSER ASSY, COOLER

main88460-33100iACV40,GSV40200601-201109

88474DRYER, COOLER

main88474-17010iACV40,GSV40200601-201109

88707PIPE SUB-ASSY, SUCTION

main88707-33010iACV40,GSV40..LHD200601-201109

main88707-33020iACV40,GSV40..RHD200601-201108

88710TUBE ASSY, AIR CONDITIONER

main88710-33320iACV40,GSV40..LHD200601-201109

main88710-33330iACV40,GSV40..RHD200601-201108

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-33200iGSV40200601-201109

main88711-33210iACV40200601-201109

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-33250iGSV40200601-201109

main88712-33260iACV40200601-201109

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-33020iACV40,GSV40200601-201109

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iACV40,GSV40200605-201109

main88719-40020iACV40,GSV40200601-200605

8868833430BRACKET, COOLER DIAPHRAGM

main88688-33430

8871833390PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33390

8871833400PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33400

9011906817

main90119-06817

9017906115

main90179-06115

9155180625

main91551-80625

91631B0618

main91631-B0618

91631B0625

main91631-B0625

9167180616

main91671-80616

21 parts on this diagram · 5 diagrams in section
