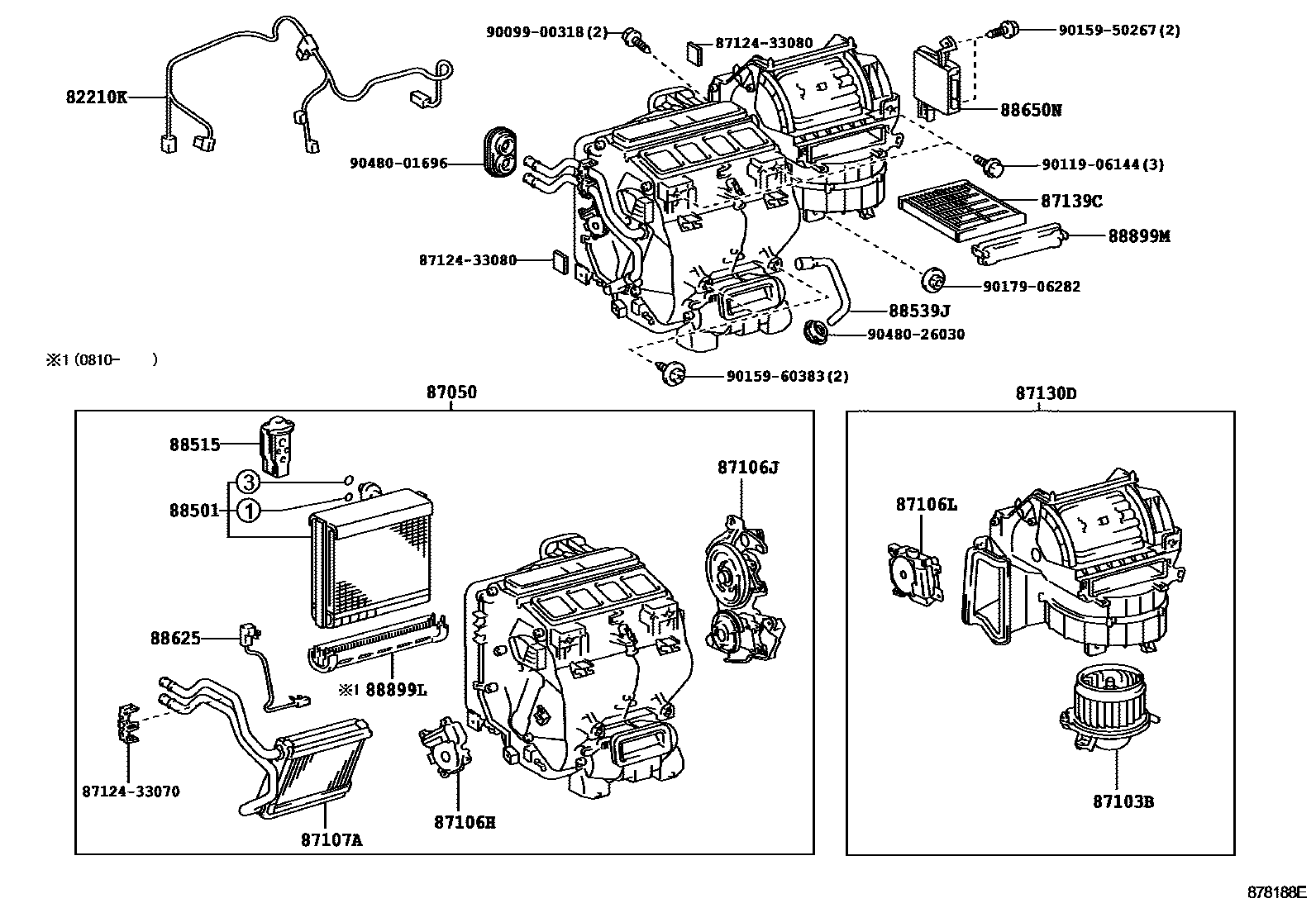

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1O-RING

82210KHARNESS ASSY, AIR CONDITIONER

main82212-33010iACV40,GSV40..RHD200601-200610

main82212-33011iACV40,GSV40..RHD200611-201108

sub82212-33012

main82212-33020iACV40,GSV40..LHD200601-200609

sub82212-28040

main82212-33021iACV40,GSV40..LHD200610-201109

sub82212-33022

87050RADIATOR ASSY, AIR CONDITIONER

main87050-33540iACV40,GSV40..LHD..ATM200601-200701

sub87050-33541

main87050-33541iACV40,GSV40..LHD..ATM200701-200702

sub87050-33542

main87050-33542iACV40,GSV40..LHD..ATM200703-200803

sub87050-33543

main87050-33543iACV40,GSV40..LHD..ATM200803-201109

main87050-33580iACV40..LHD..5F200601-200612

sub87050-33581

main87050-33581iACV40..LHD..5F200701-200802

sub87050-33582

main87050-33582iACV40..LHD..5F200803-201109

main87050-33590iACV40,GSV40..RHD..ATM200601-200702

sub87050-33591

main87050-33591iACV40,GSV40..RHD..ATM200703-200802

sub87050-33592

main87050-33592iACV40,GSV40..RHD..ATM200803-201108

main87050-33600iACV40..RHD..5F200601-200802

sub87050-33601

main87050-33601iACV40..RHD..5F200803-201108

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-33090iACV40,GSV40..LHD..ATM200601-200803

main87103-33100iACV40,GSV40..RHD200601-200803

main87103-48070iACV40,GSV40..RHD200803-201108

main87103-48080iACV40,GSV40..LHD200803-201109

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-33260iACV40,GSV40200601-201109

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-33250iACV40,GSV40..ATM200601-201109

main87106-33290iACV40,GSV40..ATM200703-201109

87106LSERVO SUB-ASSY, DAMPER

main87106-33270iACV40,GSV40..LHD200601-201109

main87106-33280iACV40,GSV40..RHD200601-201108

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-33120iACV40,GSV40200601-201109

87130DBLOWER ASSY

main87130-33200iACV40,GSV40..LHD200601-200803

sub87130-28580

main87130-33210iACV40,GSV40..RHD200601-200802

sub87130-48190

main87130-48190iACV40,GSV40..RHD200803-200812

sub87130-48210

main87130-48200iACV40,GSV40..LHD200803-200810

sub87130-48220

main87130-48210iACV40,GSV40..RHD200901-201108

main87130-48220iACV40,GSV40..LHD200810-201109

87139CFILTER, CLEAN AIR

main87139-30040iACV40,GSV40200703-201109

main87139-30070iACV40,GSV40200601-200703

sub87139-30040

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-28400iACV40,GSV40200803-200903

sub88501-48310

main88501-33120iACV40,GSV40..LHD200601-200801

sub88501-28400

main88501-33190iACV40,GSV40..RHD..ATM200701-200803

sub88501-28400

main88501-33200iACV40,GSV40200901-200906

sub88501-48310

main88501-48310iACV40,GSV40200906-201007

sub88501-48311

main88501-48311iACV40,GSV40201007-201109

88515VALVE, COOLER EXPANSION

main88515-33020iACV40,GSV40200601-201109

88539JHOSE, DRAIN COOLER

main88539-33090iACV40,GSV40200601-201109

88625THERMISTOR, COOLER, NO.1

main88625-33190iACV40,GSV40200601-201109

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-33670iACV40200901-200906

sub88650-33671

main88650-33671iACV40200907-201011

sub88650-33672

main88650-33672iACV40201012-201109

main88650-33690iACV40200601-200702

sub88650-33691

main88650-33691iACV40200703-200903

main88650-33710iGSV40200601-200702

sub88650-33711

main88650-33711iGSV40200703-200903

main88650-33A00iGSV40200901-201011

sub88650-33A01

main88650-33A01iGSV40201012-201109

88899LPARTS, COOLING UNIT

main88899-33050iACV40,GSV40..RHD200803-201109

88899MPLATE, COVER(FOR AIR FILTER)

main88899-33040iACV40,GSV40200601-201109

8712433070CLAMP, HEATER

main87124-33070

8712433080CLAMP, HEATER

main87124-33080

9009900318

main90099-00318

9011906144

main90119-06144

9015950267

main90159-50267

9015960383

main90159-60383

9017906282

main90179-06282

9048001696

main90480-01696

9048026030

main90480-26030

25 parts on this diagram · 3 diagrams in section
