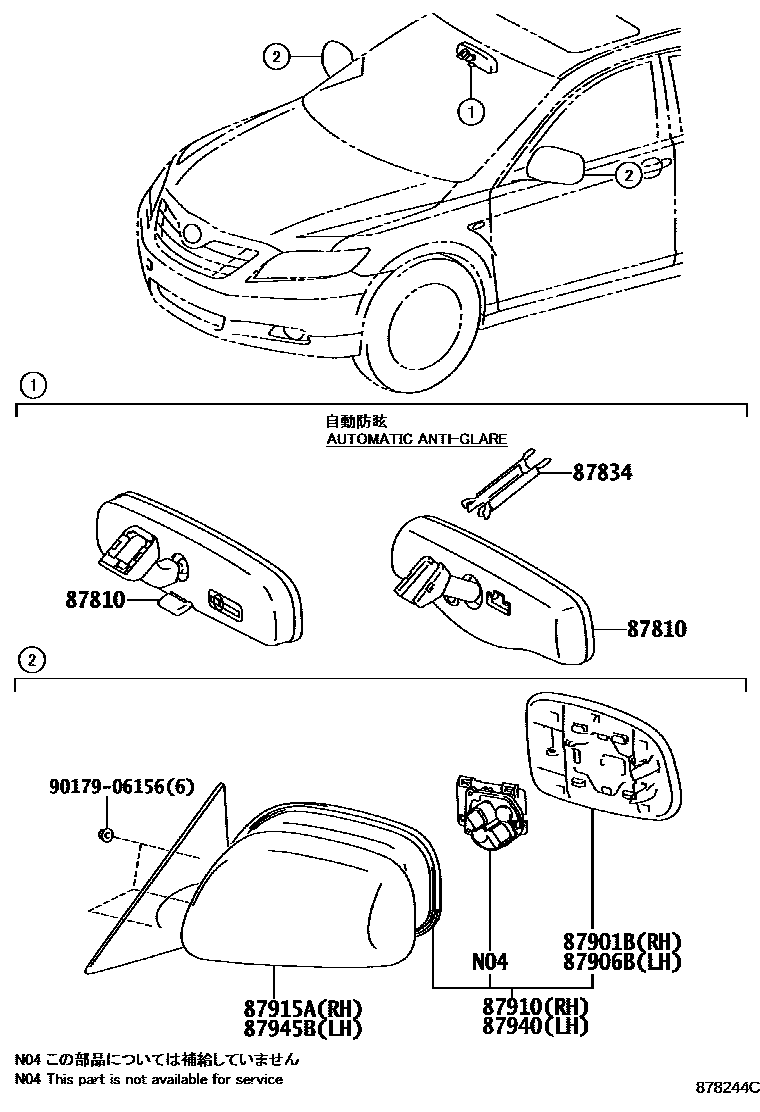

MIRROR
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
INDIA SPEC
INDIA SPEC
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
INDIA SPEC
INDIA SPEC
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,INDIA SPEC
NO PAINT REQ.,INDIA SPEC
87915ACOVER, OUTER MIRROR, RH
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
RED M.M.,3R3
BEIGE ME.,4T8
DK.GREEN MC.,6V4
TURQUOISE M.M.,776
DK.BLUE MC.,8T5
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,INDIA SPEC
NO PAINT REQ.,INDIA SPEC
87945BCOVER, OUTER MIRROR, LH
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
RED M.M.,3R3
BEIGE ME.,4T8
DK.GREEN MC.,6V4
TURQUOISE M.M.,776
DK.BLUE MC.,8T5
9017906156
main90179-06156
9 parts on this diagram · 2 diagrams in section
