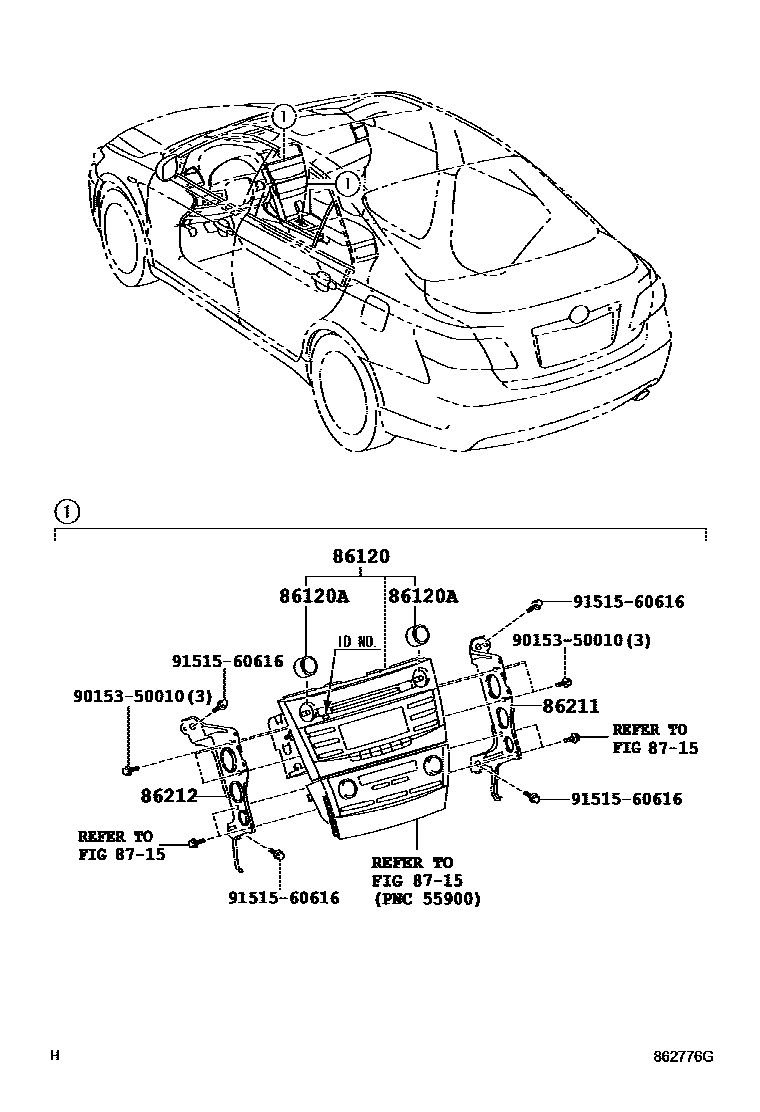

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0003 1 0004 1 0006 1 0007 1CONDENSER 0009 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-33850iACV40,GSV40..LE,XLE200601-200901

FUJITSU TEN,ID=12820,AUDIO-AM9K/FM, CD 2W 6SPEAKER

main86120-33860iACV40,GSV40..LE,XLE200601-200901

FUJITSU TEN,ID=12823,AUDIO-AM10K/FM, CD CHANGER 2W 6SPEAKER

main86120-33870iACV40,GSV40..LE,XLE200601-200901

FUJITSU TEN,ID=12821,AUDIO-AM9K/FM, CD CHANGER 2W 6SPEAKER

main86120-33880iACV40,GSV40..COMF,PREM200712-200805

FUJITSU TEN,ID=13803

sub86120-33881

main86120-33880iACV40,GSV40..LHD..(LE,XLE)200601-200805

FUJITSU TEN,ID=13803,AUDIO-AM/FM, CD CHANGER 2W 6SPEAKER

sub86120-33881

main86120-33881iACV40,GSV40..LHD..(LE,XLE)200806-200901

FUJITSU TEN,ID=13829,AUDIO-AM/FM, CD CHANGER 2W 6SPEAKER

main86120-33881iACV40,GSV40..COMF,PREM200806-200903

FUJITSU TEN,ID=13829

main86120-33D50iACV40,GSV40..LHD..(LE,XLE)200901-201108

FUJITSU TEN,ID=13835,AUDIO-6CD CHANGER,6SPEAKER,BLUETOOTH

main86120-33D50iACV40..COMF200903-201109

FUJITSU TEN,ID=13835

main86120-33D60iACV40,GSV40..LE,XLE200901-201108

FUJITSU TEN,ID=12897,AUDIO-AM9K/FM,CD,6SPEAKER

main86120-33D70iACV40,GSV40..LE,XLE200901-201108

FUJITSU TEN,ID=12898,AUDIO-AM9K/FM,6CD CHANGER,6SPEAKER

main86120-33D80iACV40,GSV40..LE,XLE200901-201108

FUJITSU TEN,ID=12899,AUDIO-AM10K/FM,6CD CHANGER,6SPEAKER

86120AKNOB, RADIO RECEIVER SWITCH

main90010-23025iACV40,GSV40..COMF,PREM200812-200903

AUDIO-AM10K/FM, CD CHANGER 2W 6SPEAKER

main90010-23025iACV40,GSV40..COMF,PREM200812-200903

AUDIO-AM9K/FM, CD CHANGER 2W 6SPEAKER

main90010-23025iACV40,GSV40..COMF,PREM200812-200903

AUDIO-AM9K/FM, CD 2W 6SPEAKER

main90010-23025iACV40,GSV40..LHD..(LE,XLE)200812-200903

AUDIO-AM/FM, CD CHANGER 2W 6SPEAKER

main90010-23025iACV40..COMF200903-201109

main90011-23013iACV40,GSV40..COMF,PREM200712-200812

86211BRACKET, RADIO, NO.1

main86211-33210iACV40,GSV40200601-201109

86212BRACKET, RADIO, NO.2

main86212-33210iACV40,GSV40200601-201109

8715

9015350010

main90153-50010

9151560616

main91515-60616

7 parts on this diagram · 6 diagrams in section
