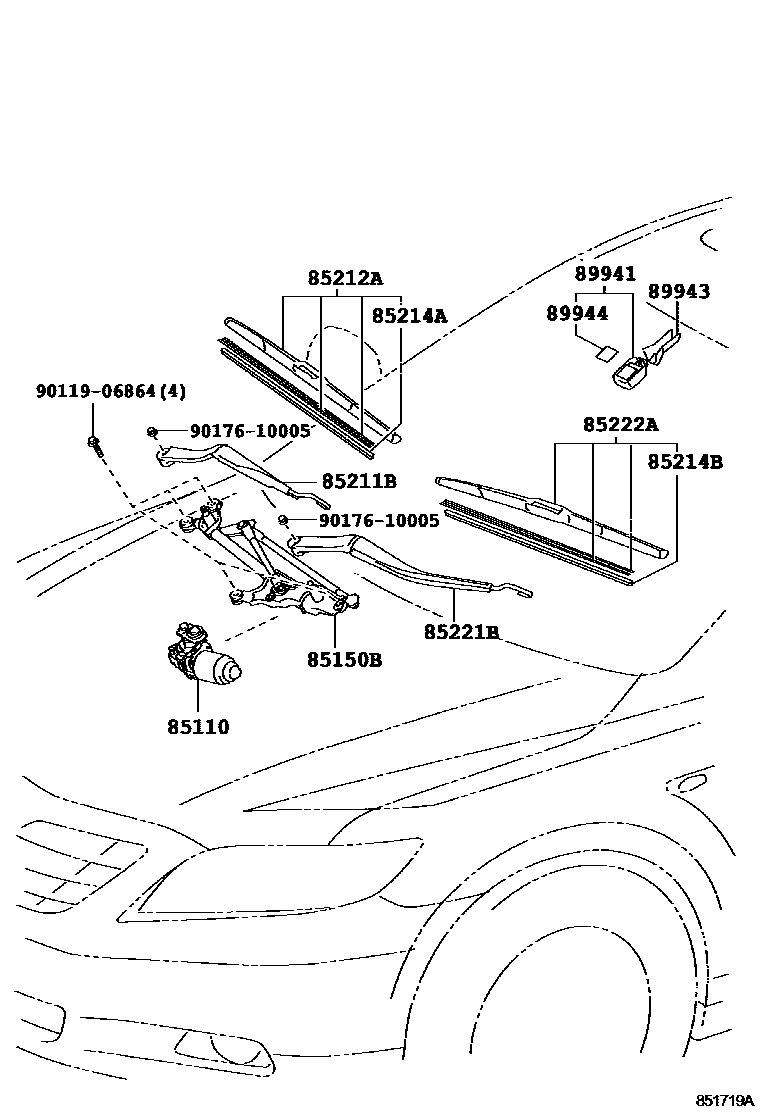

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-33050iACV40,GSV40..LHD200601-201109

main85110-33310iACV40,GSV40..RHD200601-201108

85150BLINK ASSY, WIPER

main85150-33230iACV40,GSV40..LHD200601-201109

main85150-33250iACV40,GSV40..RHD200601-201108

85211BARM, FRONT WIPER, RH

main85211-33270iACV40,GSV40..LHD200601-201109

main85211-33280iACV40,GSV40..RHD200601-201108

85212ABLADE, FR WIPER, RH

main85212-33240iACV40,GSV40..RHD200601-201108

main85212-53080iACV40,GSV40..LHD200601-200701

sub85212-53081

main85212-53081iACV40,GSV40..LHD200701-201109

85214ARUBBER, WIPER, RH

main85214-30380iACV40,GSV40..RHD200601-201108

main85214-53090iACV40,GSV40..LHD200601-201109

85214BRUBBER, WIPER, LH

main85214-30380iACV40,GSV40..LHD200601-201109

main85214-53090iACV40,GSV40..RHD200601-201108

85221BARM, FRONT WIPER, LH

main85221-33260iACV40,GSV40..LHD200601-201109

main85221-33270iACV40,GSV40..RHD200601-200704

sub85221-33271

main85221-33271iACV40,GSV40..RHD200705-201108

85222ABLADE, FR WIPER, LH

main85222-33250iACV40,GSV40..LHD200601-201109

main85222-53060iACV40,GSV40..RHD200601-201108

89941SENSOR, RAIN

main89941-42010iACV40,GSV40200601-201109

89943COVER, RAIN SENSOR

main89943-42010iACV40,GSV40200601-201109

89944TAPE, RAIN SENSOR

main89944-42010iACV40,GSV40200601-201109

9011906864

main90119-06864

9017610005

main90176-10005

13 parts on this diagram · 1 diagram in section
