AIR BAG

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-33010iACV40..LHD;ACV40..RHD..5FC200901-201109

main72277-33021iGSV40..PREM200712-200903

89170SENSOR ASSY, AIRBAG

main89170-33510iACV40,GSV40..LHD200601-200903

main89170-33511iACV40,GSV40..LHD200901-201109

main89170-33520iACV40,GSV40..RHD200601-200903

main89170-33521iACV40,GSV40..RHD200901-201108

89173ASENSOR, AIRBAG, FRONT RH

main89173-39365iACV40,GSV40200601-200903

89174ASENSOR, AIRBAG, FRONT LH

main89173-39365iACV40,GSV40200901-201109

89178ASENSOR, SEAT POSITION AIRBAG

main89178-33040iACV40..LHD;ACV40..RHD..5FC200901-201109

main89178-33050iGSV40..PREM200712-200903

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-42010iACV40,GSV40200601-200903

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-42010iACV40,GSV40200601-200903

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-33030iACV40,GSV40200601-200903

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-33030iACV40,GSV40200601-200903

9011908C48

main90119-08C48

9155380618

main91553-80618

91553A0825

main91553-A0825

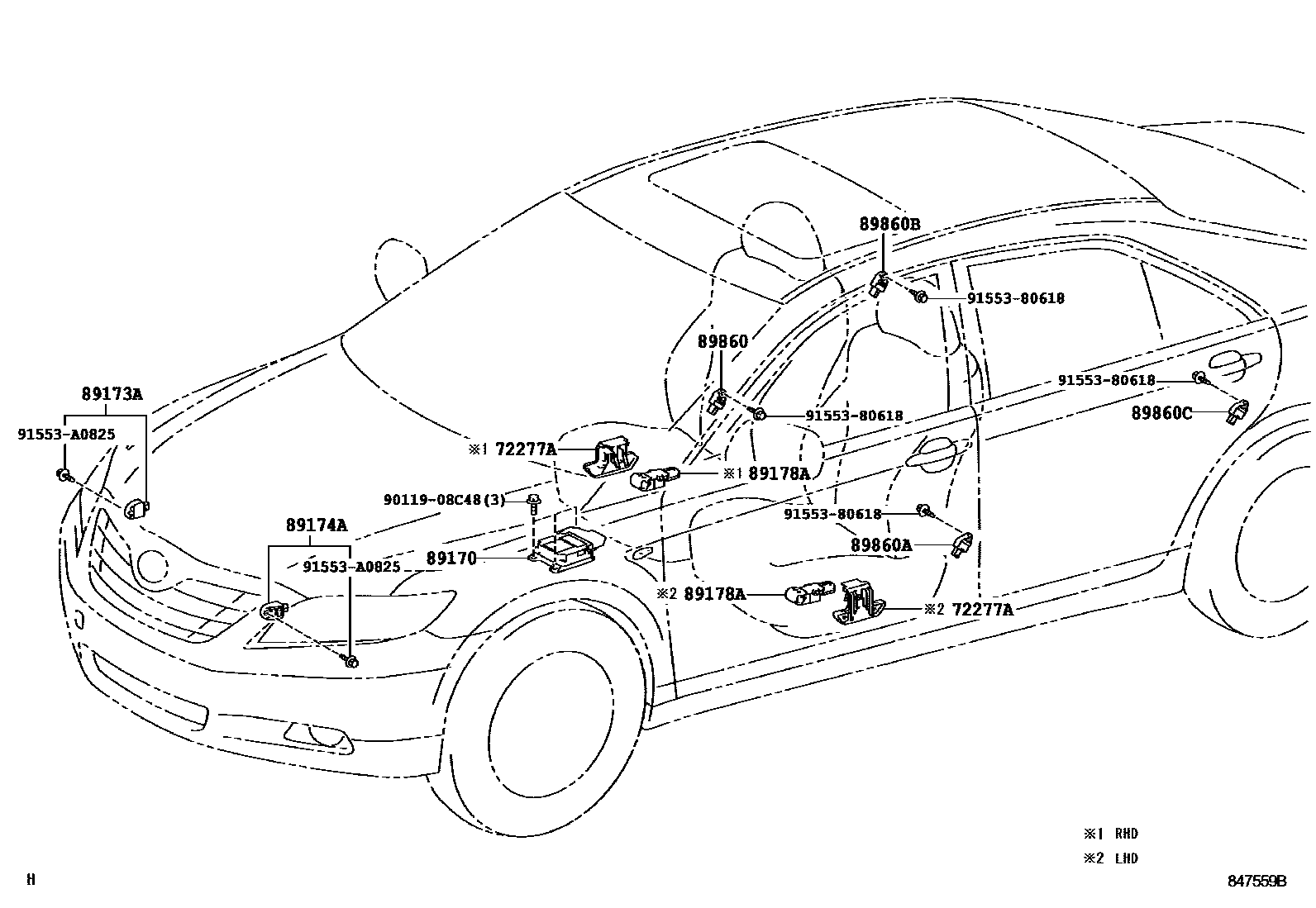

12 parts on this diagram · 1 diagram in section
