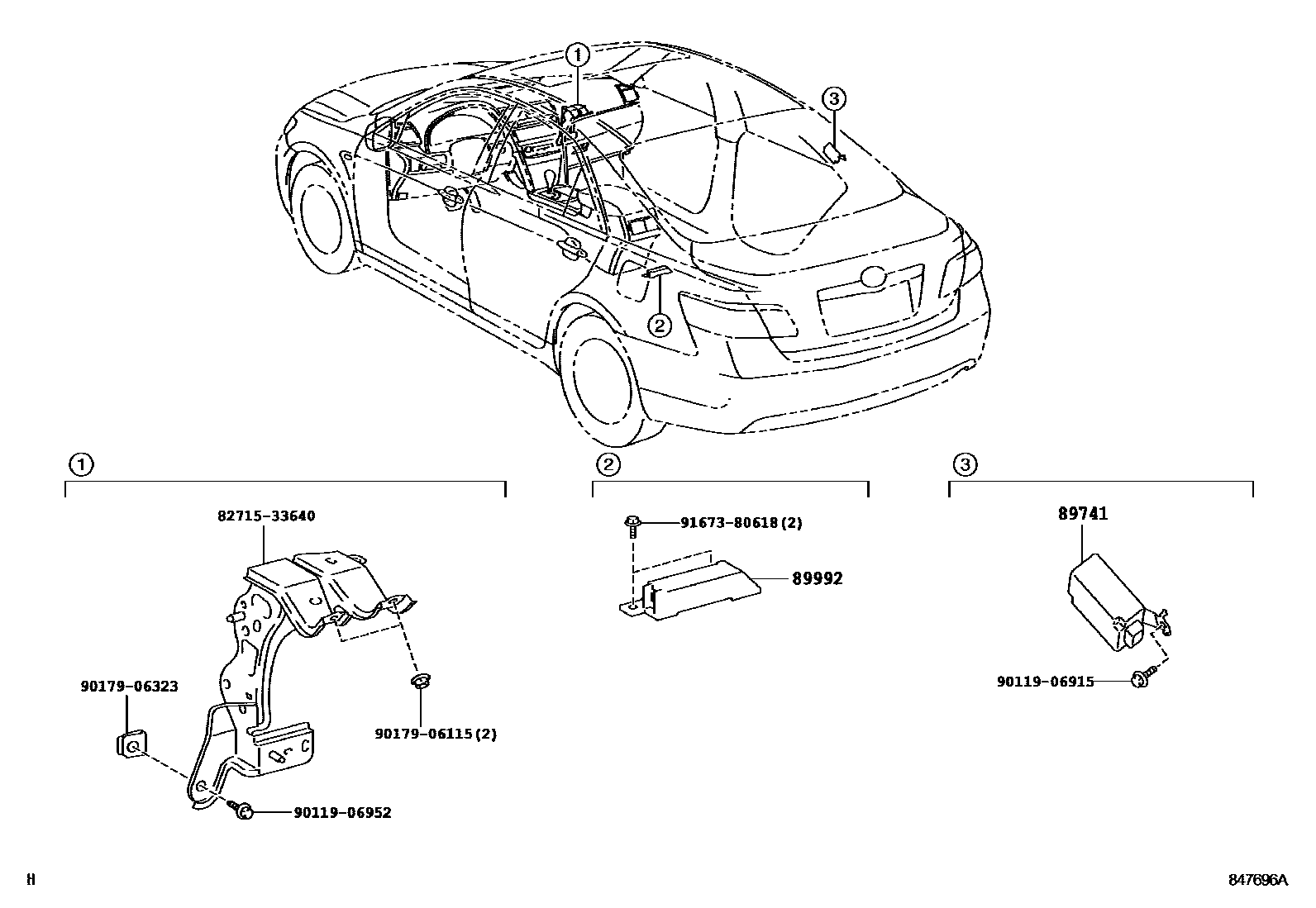

WIRELESS DOOR LOCK

0001 1 0004 1 0006 1 0008 1

89741RECEIVER, DOOR CONTROL

main89740-33070iGSV40200901-201003

sub89740-33071

main89740-33071iGSV40201004-201109

sub89740-33072

main89741-33460iACV40,GSV40200601-201109

main89740-33150iGSV40..RHD200901-201108

HONG KONG SPEC

main89741-33470iACV40,GSV40..RHD..ATM200601-200903

HONG KONG SPEC

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-33030iGSV40200901-201109

NO.2

main89992-33040iACV40200601-201102

main89992-33060iGSV40200901-201109

NO.1

main89992-42010iGSV40200901-201109

NO.3

8271533640BRACKET,WIRING HARNESS CLAMP

main82715-33640

9011906915

main90119-06915

9011906952

main90119-06952

9017906115

main90179-06115

9017906323

main90179-06323

9167380618

main91673-80618

8 parts on this diagram · 4 diagrams in section
