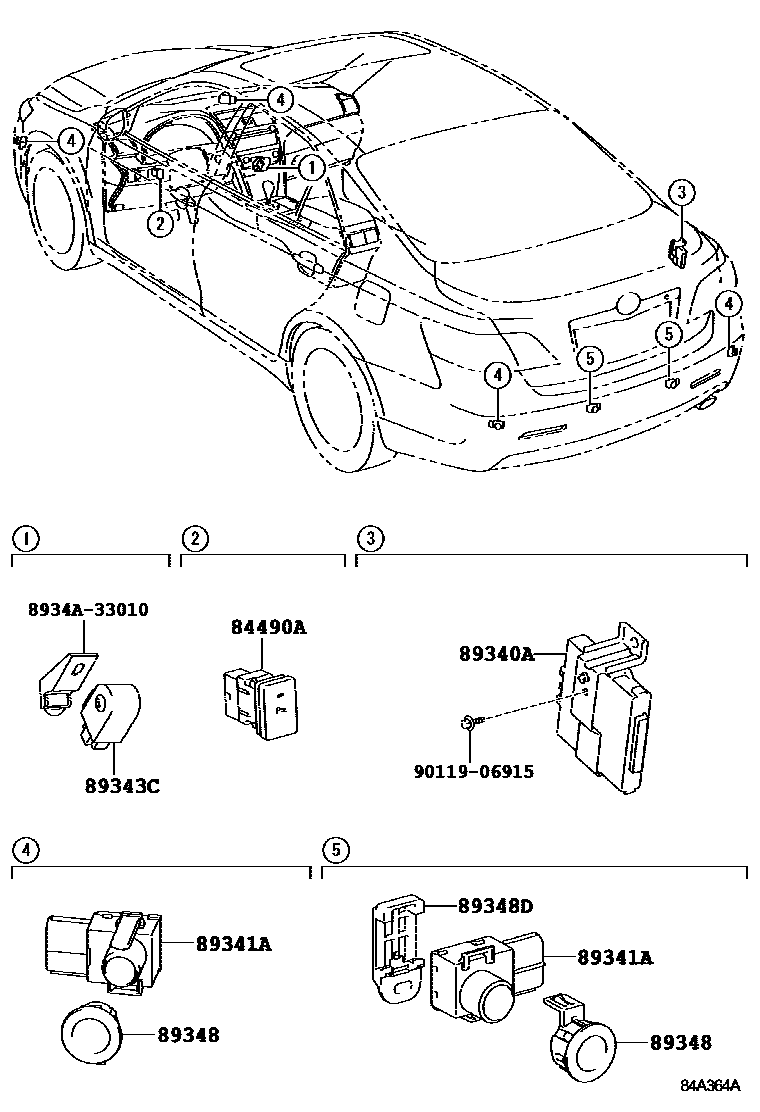

CLEARANCE & BACK SONAR
84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR
sub84490-33021
89340ACOMPUTER ASSY, CLEARANCE WARNING
89341ASENSOR, ULTRASONIC, NO.1
89343CBUZZER, CLEARANCE WARNING, NO.1
89348RETAINER, ULTRASONIC SENSOR, NO.1
89348DCLIP, ULTRASONIC SENSOR
8934A33010
main8934A-33010
9011906915
main90119-06915
8 parts on this diagram · 1 diagram in section
