ABS & VSC

0001 1 0002 1 0003 1 0004 1

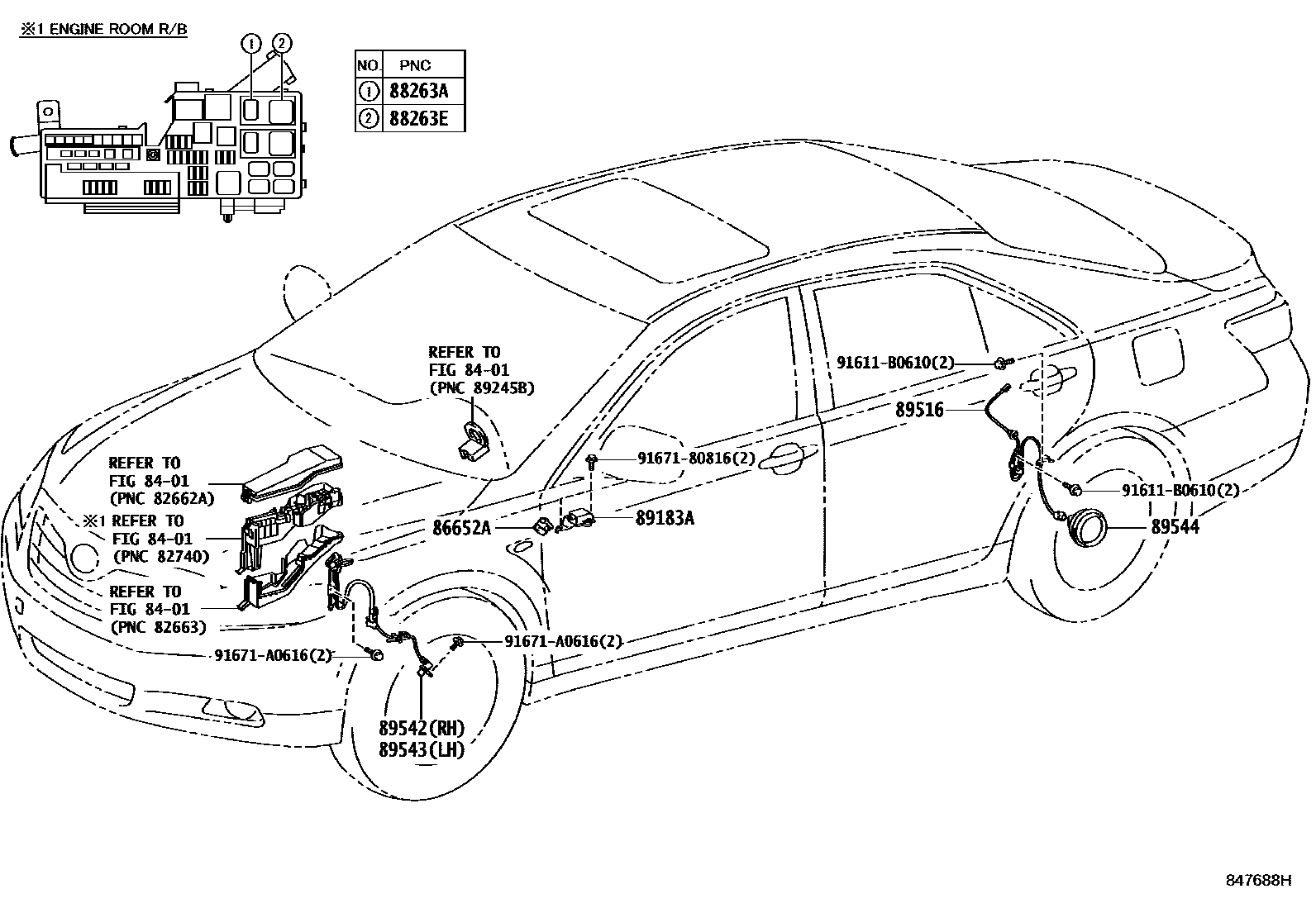

8401

86652ABUZZER ASSY, SKID CONTROL

main86652-48010iGSV40200601-200903

W(VSC)

main86652-48010iGSV40200901-201001

VSC-WITH(WITHOUT-CUT OFF SWITCH)

88263ARELAY, SKID CONTROL

main88263-32070iGSV40200601-200903

W(VSC)

main88263-32070iGSV40200901-201109

VSC-WITH(WITHOUT-CUT OFF SWITCH)

88263ERELAY, SKID CONTROL NO.2

main88263-21010iGSV40200601-200903

W(VSC)

main88263-21010iGSV40200901-201109

VSC-WITH(WITHOUT-CUT OFF SWITCH)

89183ASENSOR, YAWRATE

main89180-33050iGSV40200601-200903

W(VSC)

main89180-33050iGSV40200901-201109

VSC-WITH(WITHOUT-CUT OFF SWITCH)

89516WIRE, SKID CONTROL SENSOR

main89516-33030iACV40,GSV40200601-200903

RH

main89516-33040iACV40,GSV40200601-200903

LH

main89516-33050iACV40,GSV40200901-201109

RH

main89516-33060iACV40,GSV40200901-201109

LH

89542SENSOR, SPEED, FRONT RH

main89542-33090iACV40,GSV40200601-201109

89543SENSOR, SPEED, FRONT LH

main89543-33080iACV40,GSV40200601-201109

89544SENSOR, SKID CONTROL

main89544-48010iACV40,GSV40200601-200903

91611B0610

main91611-B0610

9167180816

main91671-80816

91671A0616

main91671-A0616

12 parts on this diagram · 4 diagrams in section
