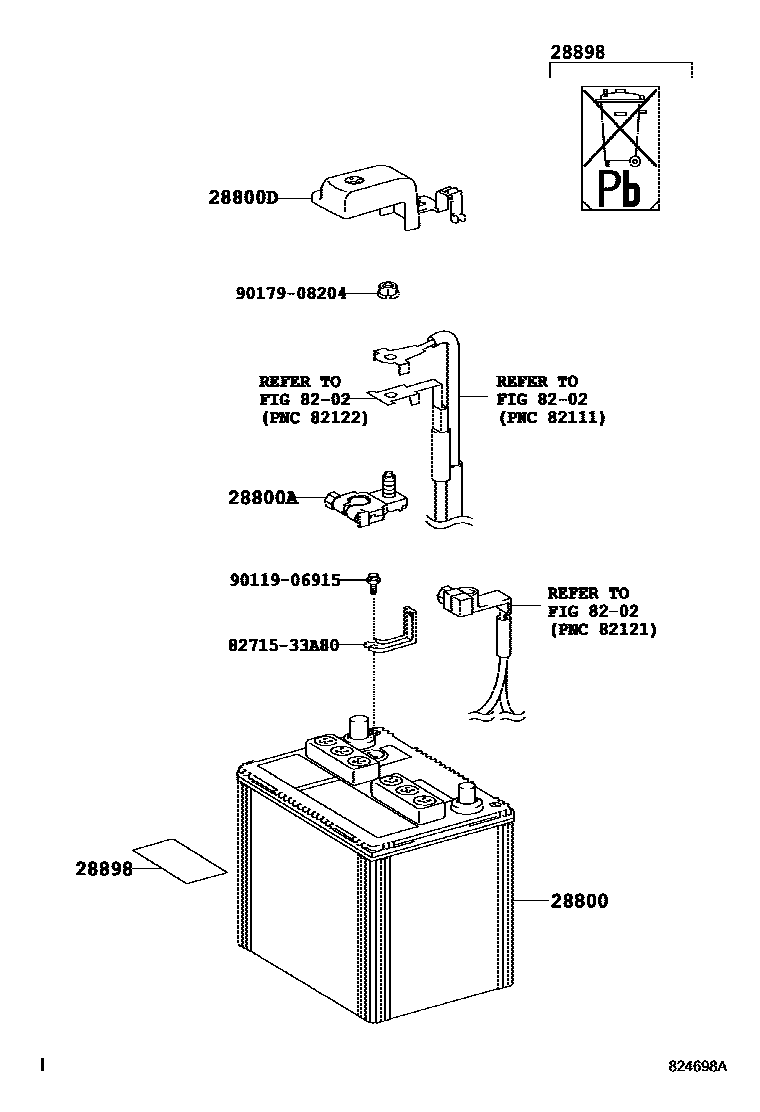

BATTERY & BATTERY CABLE

28800BATTERY

main28800-17121i2AZFE,2GRFE..ACV40,GSV40..LHD..(LE,XLE)200601-201108

80D26L,COLD AREA SPEC,FURUKAWA

sub28800-38080

main28800-17121i2AZFE,2GRFE..ACV40,GSV40..LE,XLE200901-201108

80D26L,SUB COLD AREA SPEC,FURUKAWA

sub28800-38080

main28800-28210i2AZFE,2GRFE..ACV40,GSV40..COMF,PREM200712-201109

80D26L,FURUKAWA

sub28800-28211

main28800-42041i2AZFE,2GRFE..ACV40,GSV40..LE,XLE200709-200901

55D23L,YUASA

sub28800-31260

main28800-42042i2AZFE,2GRFE..ACV40,GSV40200601-200709

55D23L,YUASA

sub28800-42041

main28800-42061i2AZFE,2GRFE..ACV40,GSV40..LE,XLE200601-201108

55D23L,FURUKAWA

sub28800-42062

main28800-54020i2AZFE,2GRFE..ACV40,GSV40..LE,XLE200705-201108

80D26L,COLD AREA SPEC,YUASA

sub28800-67102

main28800-54020i2AZFE,2GRFE..ACV40,GSV40..LHD..(LE,XLE)200901-201108

80D26L,SUB COLD AREA SPEC,YUASA

sub28800-67102

main28800-64132i2AZFE,2GRFE..ACV40,GSV40..LHD200601-200705

80D26L,COLD AREA SPEC,YUASA

sub28800-54020

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i2AZFE,2GRFE..ACV40,GSV40200601-201109

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12490i2AZFE,2GRFE..ACV40,GSV40200601-201109

28898PLATE, BATTERY

main28898-46020i2AZFE,2GRFE..ACV40,GSV40..LE,XLE200601-200903

8202

8271533A80BRACKET,WIRING HARNESS CLAMP

main82715-33A80

9011906915

main90119-06915

9017908204

main90179-08204

8 parts on this diagram · 1 diagram in section
