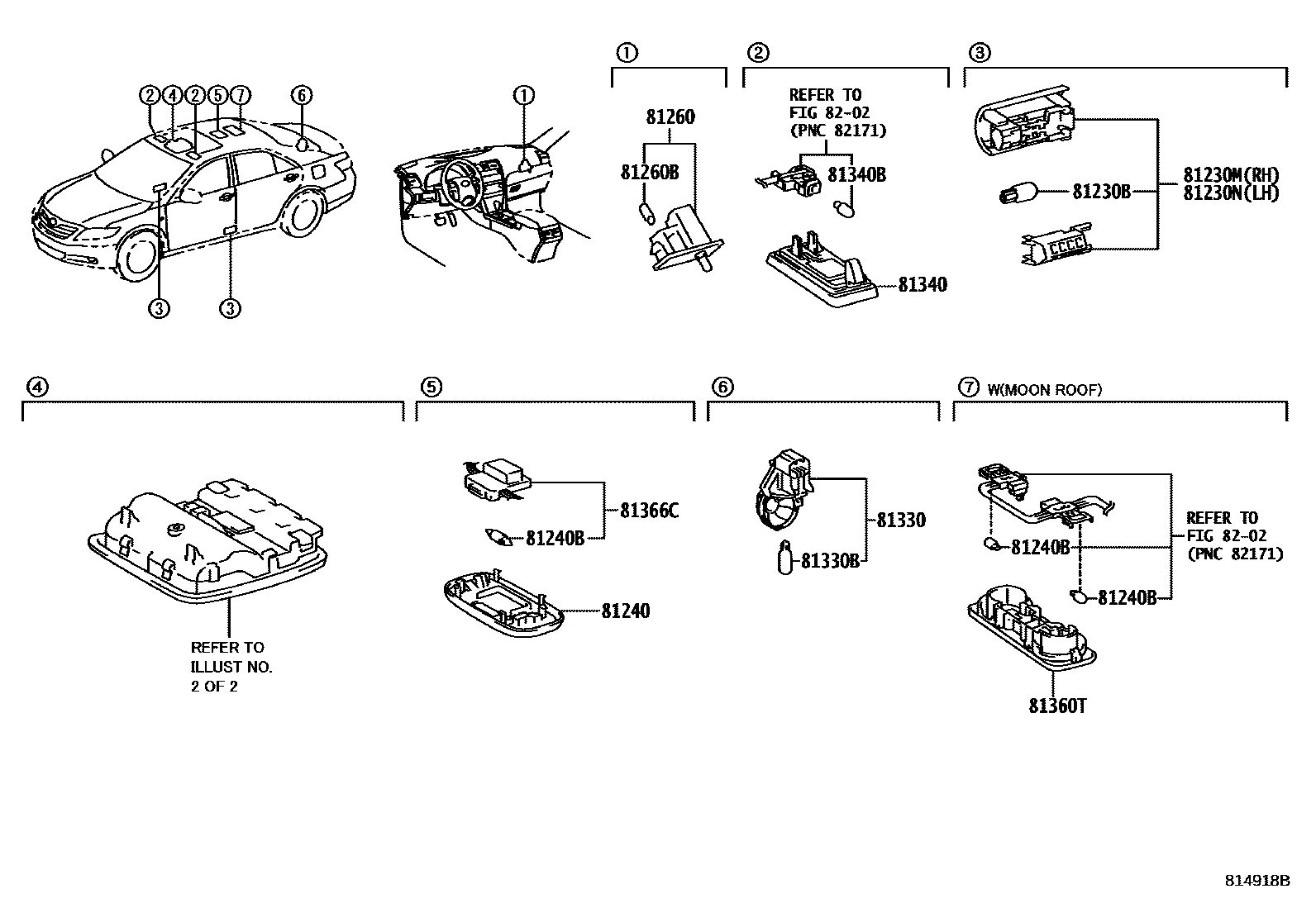

INTERIOR LAMP

0001 1 0002 1

81230BBULB(FOR COURTESY LAMP)

main90981-12010×2iACV40,GSV40200601-200903

12V 5W

81230MLAMP ASSY, COURTESY, RH

main81230-47010iACV40,GSV40200901

sub81230-30200

81230NLAMP ASSY, COURTESY, LH

main81230-47010iACV40,GSV40200901

sub81230-30200

81240LAMP ASSY, ROOM, NO.1

main81240-52040-B0iACV40,GSV40200901-201109

GRAY,TRIM1#

main81240-52040-E0iACV40,GSV40200901-201109

GREGE,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iACV40,GSV40200901

12V 8W

main90981-11062×2iACV40,GSV40..LE,XLE200901

12V 8W,MOON ROOF-WITH

81260LAMP ASSY, GLOVE BOX

main81260-33030iACV40,GSV40200901-201109

81260BBULB(FOR GLOVE BOX)

main90981-11018iACV40,GSV40200601-200903

12V 1.2W W/O SOCKET

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-12020iACV40,GSV40200901

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iACV40,GSV40200601-200903

12V 3.8W

81340LAMP ASSY, VANITY

main81340-30100-B1×2iACV40,GSV40200601-200903

GRAY,TRIM1#

main81340-30100-E1×2iACV40,GSV40200901-201108

GREGE,TRIM4#

81340BBULB (FOR VANITY LAMP)

main90981-11062×2iACV40,GSV40200901

12V 8W

81360TLAMP ASSY, SPOT

main81360-30040-B1iACV40,GSV40..LE,XLE200601-200901

MOON ROOF-WITH,GRAY,TRIM1#

main81360-30040-E0iACV40,GSV40..LE,XLE200601-200901

MOON ROOF-WITH,GREGE,TRIM4#

main81360-30050-B0iACV40,GSV40..LE,XLE200902-201108

MOON ROOF-WITH,GRAY,TRIM1#

main81360-30050-E0iACV40,GSV40..LE,XLE200904-201108

MOON ROOF-WITH,GREGE,TRIM4#

81366CBASE, ROOM LAMP SWITCH

main81366-68010iACV40,GSV40200601-200903

8202

14 parts on this diagram · 2 diagrams in section
