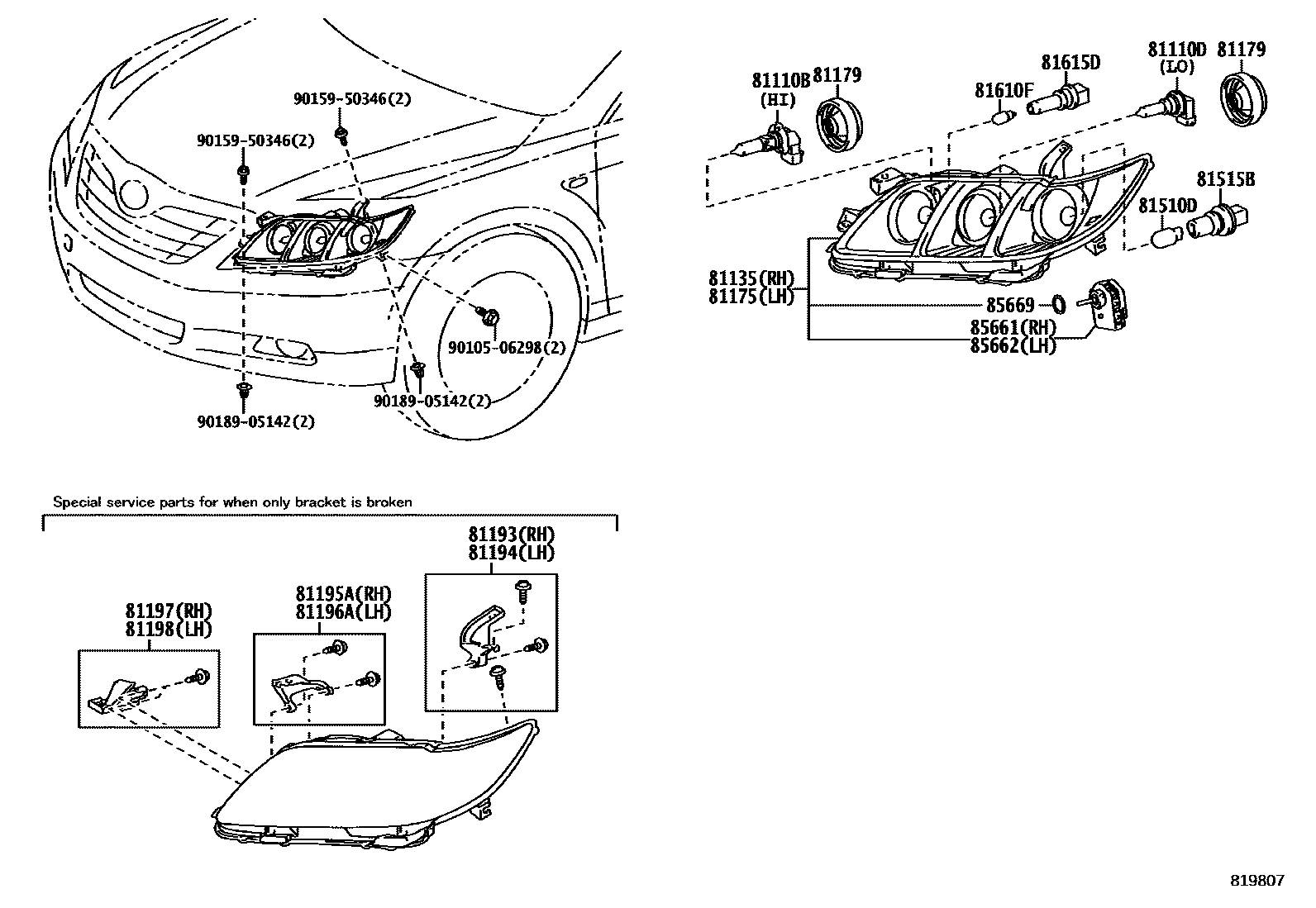

HEADLAMP

0001 1HALOGEN HEADLAMP 0002 1HALOGEN HEADLAMP 0004 1DISCHARGE HEADLAMP 0005 1DISCHARGE HEADLAMP 0007 1HALOGEN HEADLAMP 0009 1DISCHARGE HEADLAMP

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81041×2iACV40,GSV40200601-200612

12V 65W

main90981-13046×2iACV40,GSV40200612-200903

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13075×2iACV40,GSV40..LHD200601-200611

12V 55W,HALOGEN

main90981-13085×2iACV40..LHD200901-201109

12V 55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-33611iACV40,GSV40..LHD..(COMF,LE,XLE)200612-200903

sub81130-33612

main81130-33640iACV40..LHD200901-201109

main81145-33620iACV40,GSV40..RHD200601-200611

main81145-33621iACV40,GSV40..RHD200612-200903

sub81145-33622

main81145-33631iGSV40..PREM200712-200903

sub81145-33632

main81145-33720iACV40,GSV40..RHD200901-201108

main81145-33730iGSV40..LHD200901-201109

VSC-WITH(WITHOUT-CUT OFF SWITCH)&HEADLAMP-DISCHARGE

main81145-33630supersedes 81130-33610iACV40,GSV40..LHD200601-200611

HEADLAMP-HIGH INTENSITY DISCHARGE

81175UNIT ASSY, HEADLAMP, LH

main81170-33611iACV40,GSV40..LHD..(COMF,LE,XLE)200612-200903

sub81170-33612

main81170-33640iACV40..LHD200901-201109

main81185-33620iACV40,GSV40..RHD200601-200611

main81185-33621iACV40,GSV40..RHD200612-200903

sub81185-33622

main81185-33631iGSV40..PREM200712-200903

sub81185-33632

main81185-33720iACV40,GSV40..RHD200901-201108

main81185-33730iGSV40..LHD200901-201109

VSC-WITH(WITHOUT-CUT OFF SWITCH)&HEADLAMP-DISCHARGE

main81185-33630supersedes 81170-33610iACV40,GSV40..LHD200601-200611

HEADLAMP-HIGH INTENSITY DISCHARGE

81179COVER, HEADLAMP SOCKET

main90075-65006×2iACV40,GSV40..RHD200601-200611

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-33050iACV40,GSV40200601-200903

main81193-33060iACV40,GSV40200901-201109

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-33050iACV40,GSV40200601-200903

main81194-33060iACV40,GSV40200901-201109

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-33020iACV40,GSV40200601-200903

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-33020iACV40,GSV40200601-200903

81197BRACKET, HEADLAMP, LOWER RH

main81197-33010iACV40,GSV40200901-201109

81198BRACKET, HEADLAMP, LWR LH

main81198-33010iACV40,GSV40200601-200903

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iACV40,GSV40200601-200611

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iACV40,GSV40200901-201109

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iACV40,GSV40200601-200611

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60077×2iACV40,GSV40200601-200611

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12010iACV40,GSV40..LHD..(COMF,LE,XLE)200612-200903

main85661-12020iACV40..5FC..COMF;ACV40,GSV40..LHD..(LE,XLE)200612-200903

HEADLAMP-HIGH INTENSITY DISCHARGE

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12010iACV40..COMF200601-200903

main85661-12020supersedes 85661-12010iGSV40..PREM200601-200903

HEADLAMP-HIGH INTENSITY DISCHARGE

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2iACV40,GSV40200601-200611

9010506298

main90105-06298

9015950346

main90159-50346

9018905142

main90189-05142

21 parts on this diagram · 6 diagrams in section
