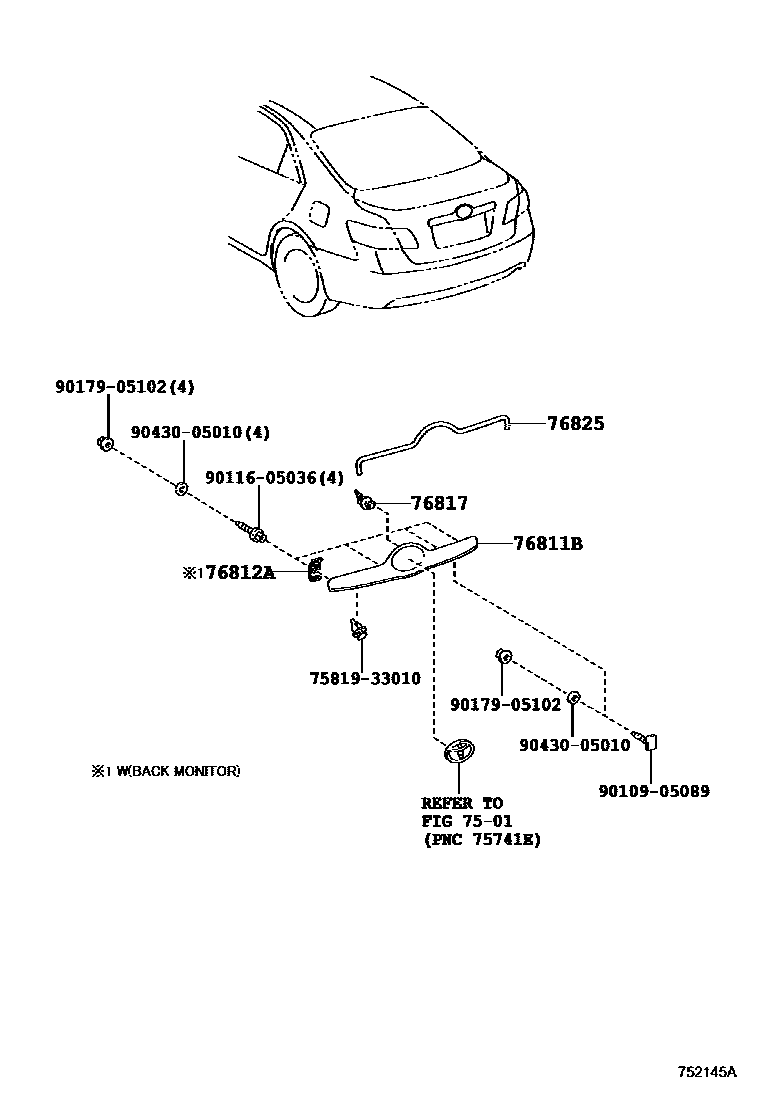

REAR MOULDING

7501

76811BGARNISH, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76811-33170-A0iACV40,GSV40200601-201109

SUPER WHITE 2,040

sub76811-33170

main76811-33170-B0iACV40,GSV40200601-200707

SILVER ME.,1D4

sub76811-33170

main76811-33170-B1iACV40200601-201109

GRAY ME.,1G3

sub76811-33170

main76811-33170-B2iACV40200707-201109

SILVER ME.,1F7

sub76811-33170

main76811-33170-C0iACV40,GSV40200601-201109

BLACK,202

sub76811-33170

main76811-33170-D0iACV40,GSV40200601-201109

RED M.M.,3R3

sub76811-33170

main76811-33170-E0iACV40,GSV40..LE,XLE200601-200901

BEIGE M. M.,4Q2

sub76811-33170

main76811-33170-E1iACV40200901-201109

BEIGE ME.,4T8

sub76811-33170

main76811-33170-G0iACV40200901-201109

DK.GREEN MC.,6V4

sub76811-33170

main76811-33170-H0iACV40,GSV40200601-201109

TURQUOISE M.M.,776

sub76811-33170

main76811-33170-J0iACV40,GSV40..COMF,PREM200601-200901

LT.BLUE ME.,8S4

sub76811-33170

main76811-33170-J1iACV40,GSV40200601-201109

DK.BLUE MC.,8T5

sub76811-33170

main76811-33210iGSV40..XLE200901-201108

PLATED

main76811-33250iGSV40..PREM200903-201109

PLATED

76812AGARNISH, BACK DOOR, OUTSIDE NO.2

main76812-33010iGSV40..PREM200903-201109

76817CLIP, BACK DOOR OUTSIDE GARNISH

main76817-12060iACV40,GSV40200601-201109

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-33040iGSV40200901-201109

BACK MONITOR-WITH

main76825-33060iACV40,GSV40200601-201109

7581933010CLIP, LUGGAGE COMPARTMENT DOOR MOULDING

main75819-33010

9010905089

main90109-05089

9011605036

main90116-05036

9017905102

main90179-05102

9043005010

main90430-05010

10 parts on this diagram · 1 diagram in section
