BATTERY CARRIER

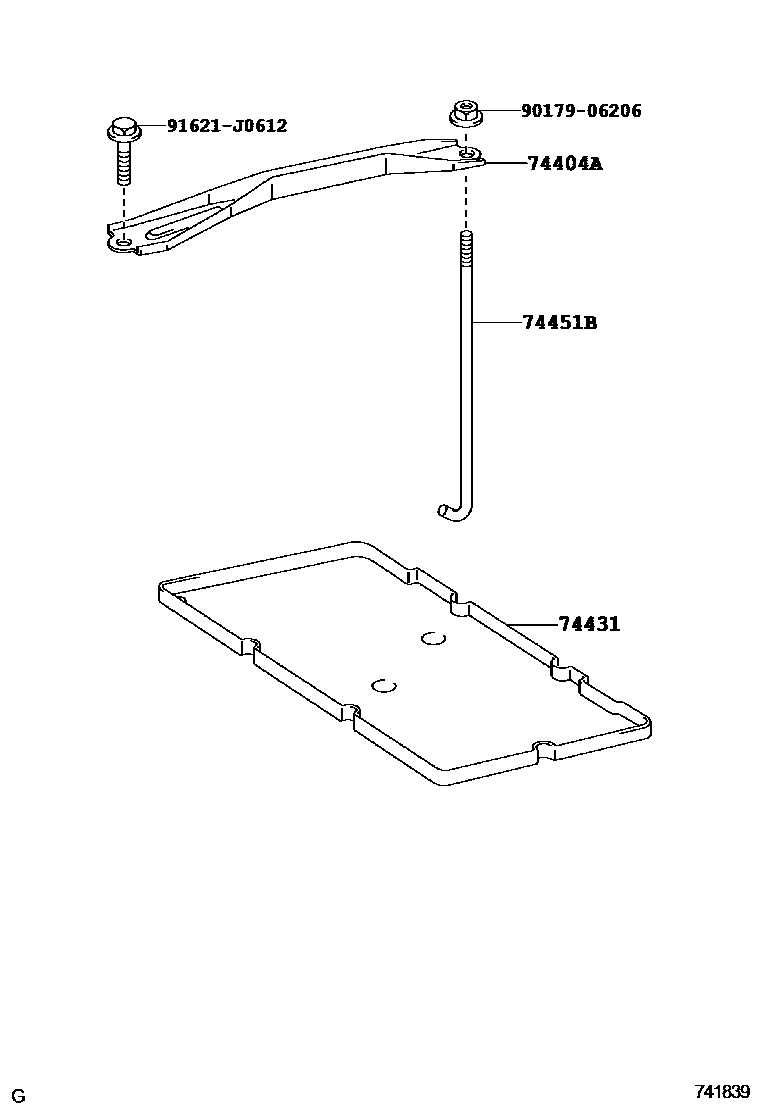

Parts diagram

74404ACLAMP SUB-ASSY, BATTERY

main74404-33100i200601-200903

74431TRAY, BATTERY

main74431-33011i200601-200903

74451BBOLT, BATTERY CLAMP

main74452-33010i200601-200903

9017906206

main90179-06206

91621J0612

main91621-J0612

5 parts on this diagram · 1 diagram in section
