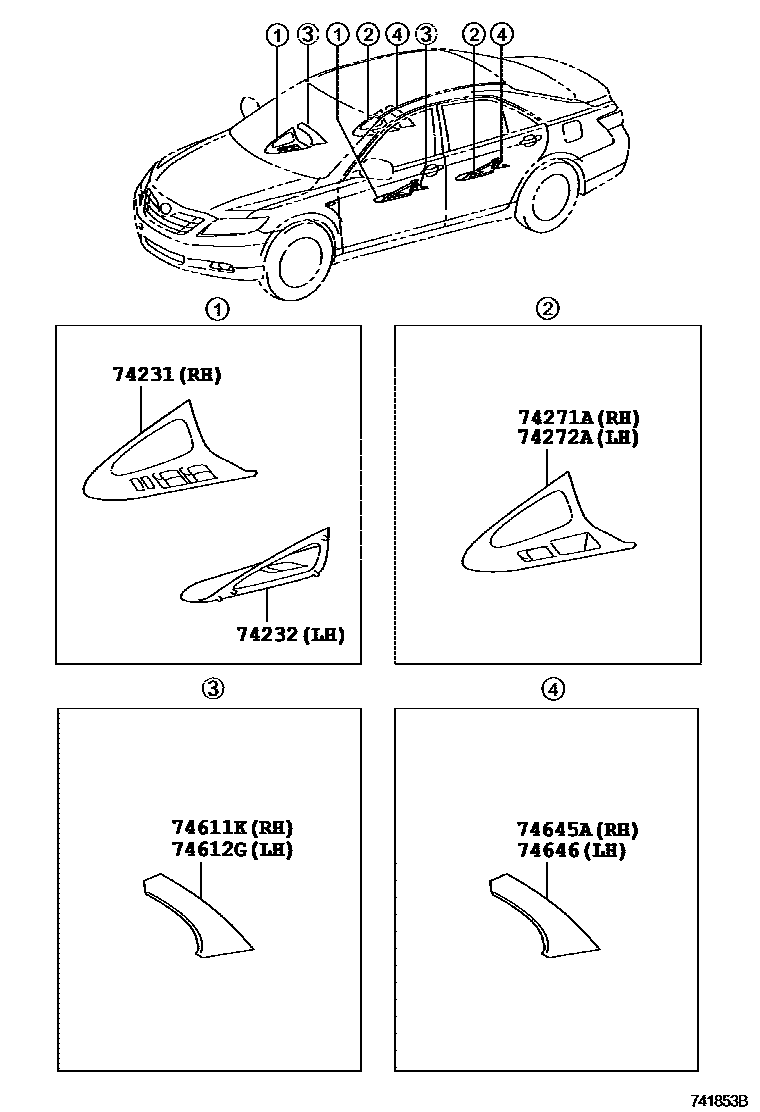

ARMREST & VISOR

0001 1ARMREST 0002 1ARMREST 0003 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-33410-E0iACV40,GSV40..LHD200601-200707

LT.BROWN,TRIM1#,4#

main74231-33411-E1iACV40,GSV40..LHD200707-200903

BROWN,TRIM1#,4#

main74231-33420-E0iACV40,GSV40..RHD200601-200707

LT.BROWN,TRIM1#,4#

main74231-33421-E1iACV40,GSV40..RHD200901-201108

BROWN,TRIM1#,4#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-33290-E0iACV40,GSV40..LHD200901-201109

BROWN,TRIM1#,4#

main74232-33320-E0iACV40,GSV40..LHD200601-200707

LT.BROWN,TRIM1#,4#

main74232-33321-E2iACV40,GSV40..LHD200707-200903

BROWN,TRIM1#,4#

main74232-33340-E0iACV40,GSV40..RHD200601-200707

LT.BROWN,TRIM1#,4#

main74232-33341-E1iACV40,GSV40..RHD200901-201108

BROWN,TRIM1#,4#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-33250-E0iACV40,GSV40200601-200707

LT.BROWN,TRIM1#,4#

main74271-33251-E1iACV40,GSV40200707-200903

BROWN,TRIM1#,4#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-33250-E0iACV40,GSV40200601-200707

LT.BROWN,TRIM1#,4#

main74272-33251-E1iACV40,GSV40200707-200903

BROWN,TRIM1#,4#

74611KCOVER, ASSIST GRIP, RH FRONT SIDE

main74612-33050iACV40,GSV40200601-200903

74612GCOVER, ASSIST GRIP, LH FRONT SIDE

main74611-33040iACV40,GSV40200601-200903

74645ACOVER, DOOR ASSIST GRIP, RH

main74645-33040iACV40,GSV40200601-200903

74646COVER, DOOR ASSIST GRIP, LH

main74646-33040iACV40,GSV40200601-200903

8 parts on this diagram · 3 diagrams in section
