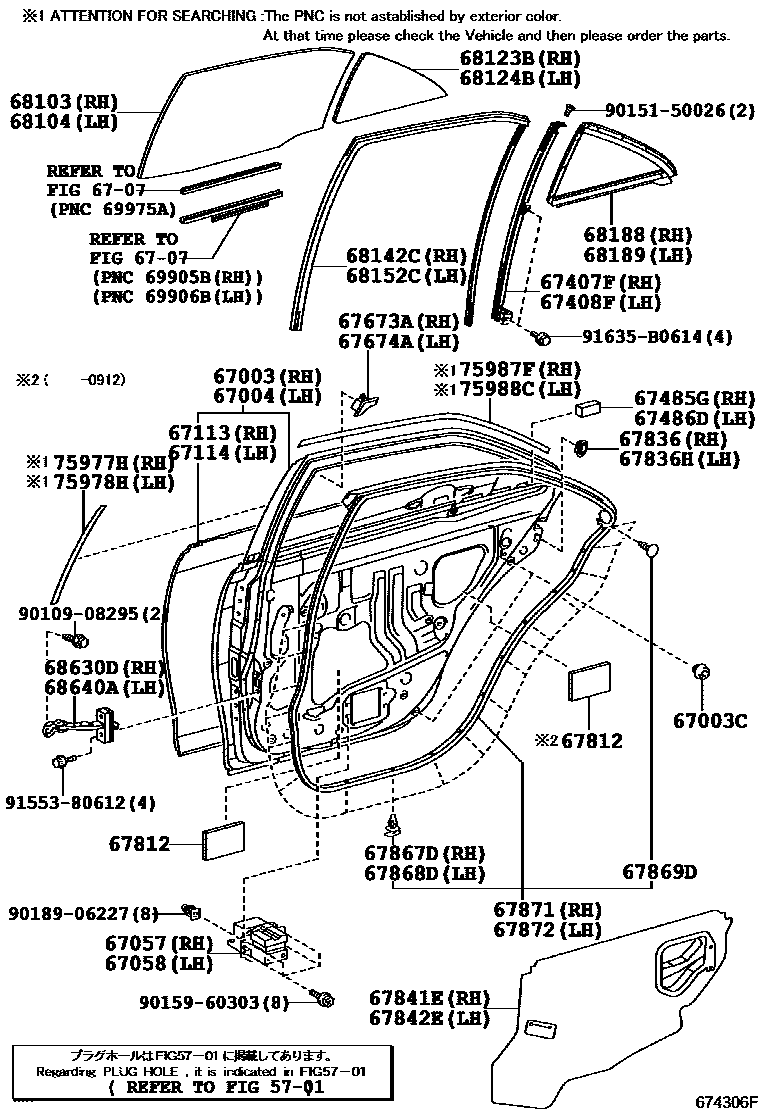

REAR DOOR PANEL & GLASS
5701
67057REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, RH
67058REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, LH
6707
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH
67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH
67485GSEAL, REAR DOOR REAR LOWER FRAME, RH
67486DSEAL, REAR DOOR REAR LOWER FRAME, LH
67673AGARNISH, REAR DOOR FRAME, RH
67674AGARNISH, REAR DOOR FRAME, LH
67812PAD, REAR DOOR SILENCER
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67869DCLIP, DOOR WEATHERSTRIP
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*UVCT,T=4.0,GREEN
68104GLASS SUB-ASSY, REAR DOOR, LH
*UVCT,T=4.0,GREEN
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
*UVCT,T=3.5,GREEN
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
*UVCT,T=3.5,GREEN
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH
75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH
75987FSTRIPE, REAR DOOR, OUTSIDE, RH
75988CSTRIPE, REAR DOOR, OUTSIDE LH
9010908295
main90109-08295
9015150026
main90151-50026
9015960303
main90159-60303
9018906227
main90189-06227
9155380612
main91553-80612
91635B0614
main91635-B0614
45 parts on this diagram · 2 diagrams in section
