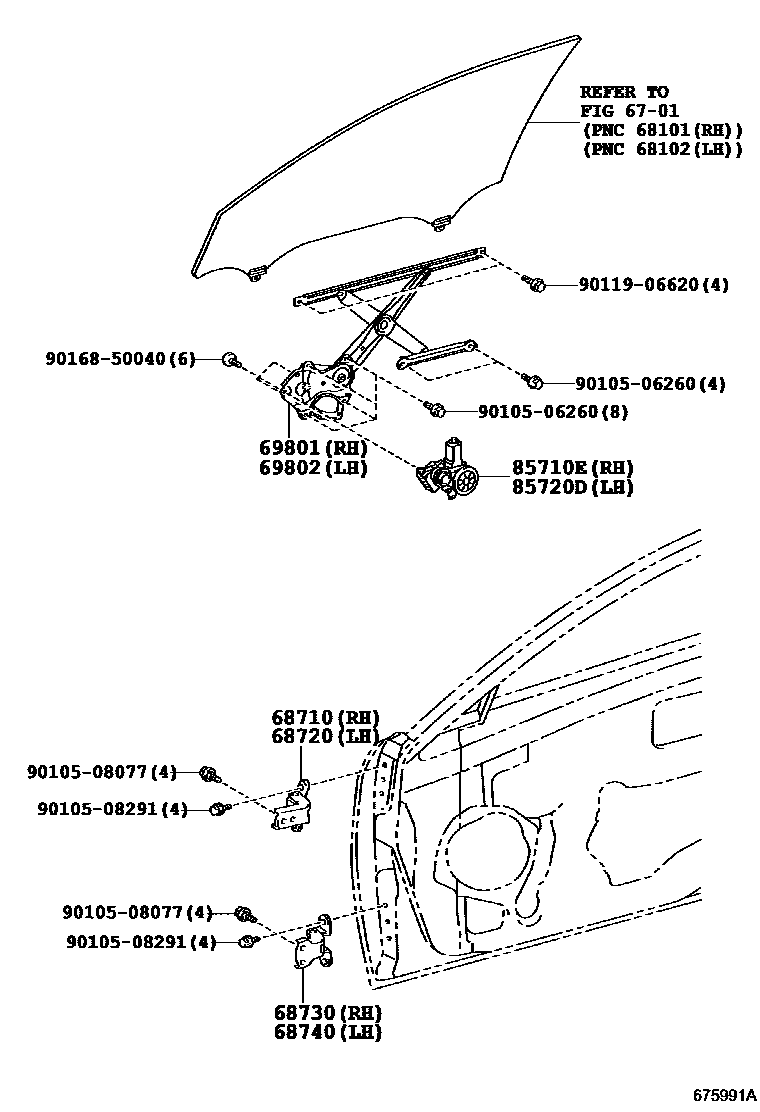

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12150iACV40,GSV40200601-200609

sub68710-12151

main68710-12151iACV40,GSV40200610-201109

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12150iACV40,GSV40200601-200609

sub68720-12151

main68720-12151iACV40,GSV40200610-201109

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-33020iACV40,GSV40200601-200609

sub68730-33021

main68730-33021iACV40,GSV40200610-201109

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-33020iACV40,GSV40200601-200609

sub68740-33021

main68740-33021iACV40,GSV40200610-201109

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-33060iACV40,GSV40200601-201109

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-33050iACV40,GSV40200601-201109

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-33160iACV40,GSV40..RHD200601-200710

sub85710-33161

main85710-33161iACV40,GSV40200711-201109

main85710-35180iACV40,GSV40..LHD200601-200903

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-33160iACV40,GSV40..LHD200601-200710

sub85720-33161

main85720-33161iACV40,GSV40..LHD200711-201109

main85720-35140iACV40,GSV40..RHD200601-201108

9010506260

main90105-06260

9010508077

main90105-08077

9010508291

main90105-08291

9011906620

main90119-06620

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
