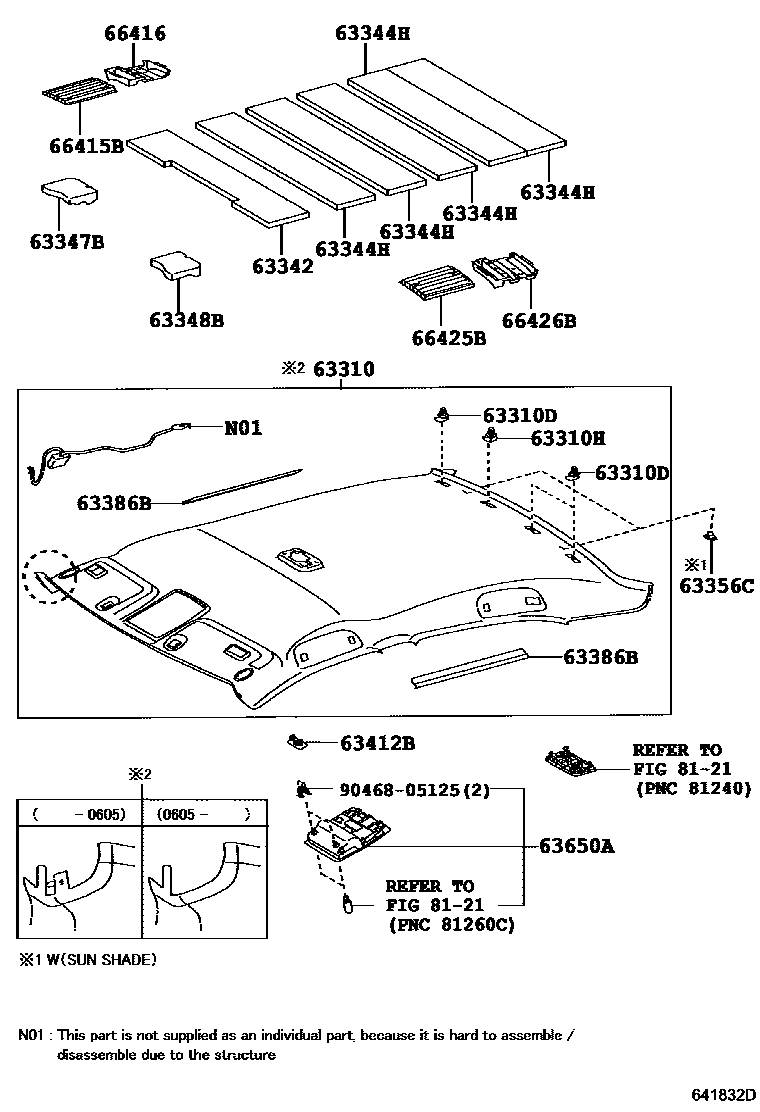

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1W(MOON ROOF) 0003 1 0005 1W(MOON ROOF)

63310HEADLINING ASSY, ROOF

main63310-33490-B0iACV40,GSV40200601-200605

GRAY,TRIM1#

main63310-33490-E0iACV40,GSV40200601-200605

GREGE,TRIM4#

main63310-33491-B0iACV40,GSV40..COMF,LE,XLE200605-200903

GRAY,TRIM1#

sub63310-33600

main63310-33491-E0iACV40,GSV40..COMF,LE,XLE200605-200903

GREGE,TRIM4#

sub63310-33600

main63310-33501-B0iGSV40..PREM200712-200903

GRAY,TRIM1#

sub63310-33610

main63310-33501-E0iGSV40..PREM200712-200903

GREGE,TRIM4#

sub63310-33610

main63310-33600-B0iACV40,GSV40..COMF,LE,XLE200901-201109

GRAY,TRIM1#

main63310-33600-E0iACV40,GSV40..COMF,LE,XLE200901-201109

GREGE,TRIM4#

main63310-33610-B0iGSV40..PREM200903-201109

GRAY,TRIM1#

main63310-33610-E0iGSV40..PREM200903-201109

GREGE,TRIM4#

63310DCLIP, ROOF HEADLINING

main90467-09126iACV40,GSV40200601-201109

main90467-09126iACV40,GSV40..COMF,PREM200601-200903

MOON ROOF-WITH

main90467-09126iACV40,GSV40..COMF,PREM200601-200903

MOON ROOF-WITH&SUN SHADE-WITH

63310HCLIP(FOR ROOF HEADLINING)

main90467-10181iACV40,GSV40200601-201109

main90467-10181iACV40,GSV40..COMF,PREM200601-200903

MOON ROOF-WITH

main90467-10181iACV40,GSV40..COMF,PREM200601-200903

MOON ROOF-WITH&SUN SHADE-WITH

63342PAD, ROOF SILENCER, NO.2

main63342-33080iACV40,GSV40200601-201109

63344HPAD, ROOF SILENCER, NO.4

main63344-33070iACV40,GSV40200601-201109

63347BPAD, ROOF SIDE RAIL SILENCER, RH

main63347-33020iACV40,GSV40200601-201109

63348BPAD, ROOF SIDE RAIL SILENCER, LH

main63348-33020iACV40,GSV40200601-201109

63356CHOLDER, SUNSHADE TRIM

main63356-22010-B2iGSV40..PREM200712-201109

GRAY,TRIM1#

sub63356-22010

main63356-22010-E0iGSV40..PREM200712-201109

GREGE,TRIM4#

sub63356-22010

63386BREINFORCEMENT, ROOF HEADLINING TRIM

main63386-33010iACV40,GSV40..LE,XLE200601-200903

MOON ROOF-WITH

main63386-33010iACV40,GSV40..LE,XLE200601-200903

MOON ROOF-WITH&SUN SHADE-WITH

main63386-33010iACV40,GSV40..LE,XLE200601-201109

63412BRETAINER, ROOF CONSOLE

main63412-33010iACV40,GSV40200601-201109

63650ABOX ASSY, ROOF CONSOLE

main63650-33090-B0iACV40,GSV40..COMF,PREM200903-201109

GRAY,TRIM1#

main63650-33090-E0iACV40,GSV40..COMF,PREM200903-201109

GREGE,TRIM4#

main63650-33220-B0iACV40,GSV40200601-200801

GRAY,TRIM1#

sub63650-33221

main63650-33220-E0iACV40,GSV40200601-200801

GREGE,TRIM4#

sub63650-33221

main63650-33221-B0iACV40,GSV40..LE,XLE200801-201108

GRAY,TRIM1#

main63650-33221-E0iACV40,GSV40..LE,XLE200801-201108

GREGE,TRIM4#

66415BSPACER, SIDE RAIL, REAR NO.2 RH

main66415-33030iACV40,GSV40200601-201109

66416SPACER, SIDE RAIL, REAR NO.3 RH

main66416-33020iACV40,GSV40200601-201109

66425BSPACER, SIDE RAIL, REAR NO.2 LH

main66425-33030iACV40,GSV40200601-201109

66426BSPACER, SIDE RAIL, REAR NO.3 LH

main66426-33020iACV40,GSV40200601-201109

8121

9046805125

main90468-05125

17 parts on this diagram · 4 diagrams in section
