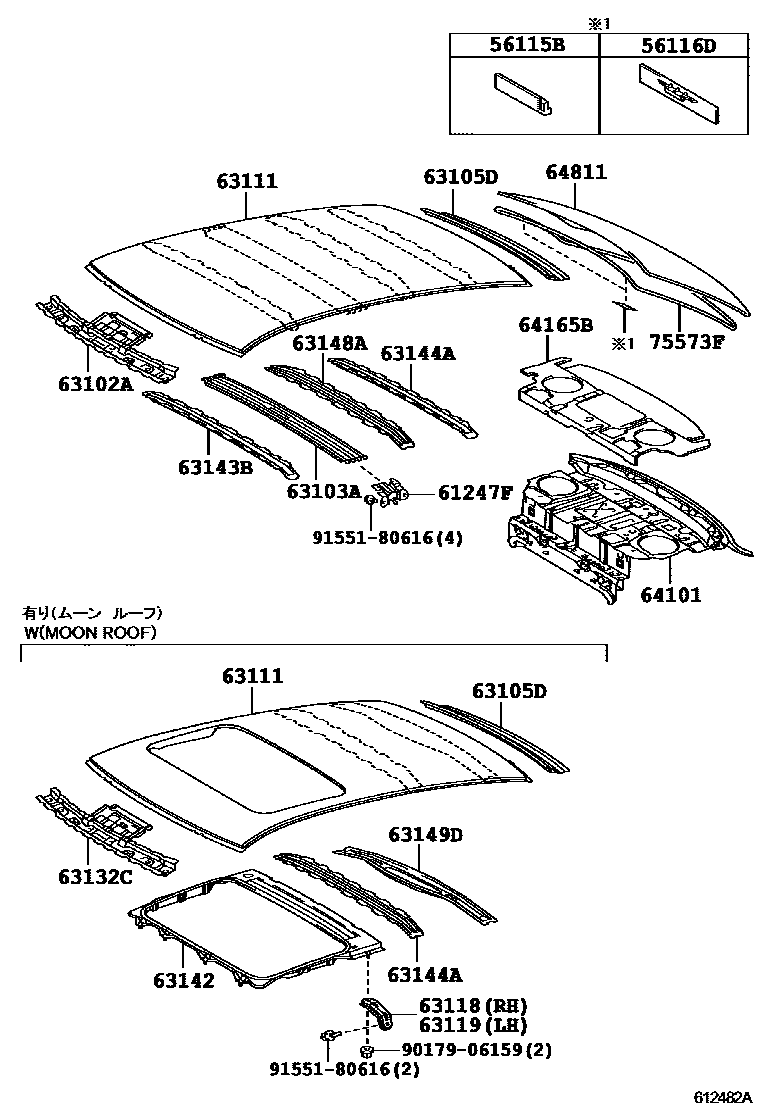

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1SLIDING ROOF

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30120iACV40,GSV40..LE,XLE200601-201108

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050iACV40,GSV40..LE,XLE200601-201108

61247FREINFORCEMENT, ROOF SIDE RAIL, INNER

main61247-33010iACV40,GSV40200601-201109

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-33902iACV40,GSV40200601-201109

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-33010iACV40,GSV40200601-201109

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-33020iACV40,GSV40200601-201109

63111PANEL, ROOF

main63111-33230iACV40,GSV40200601-201109

63118SUPPORT, ROOF PANEL, RH

main63118-33030

63119SUPPORT, ROOF PANEL, LH

main63118-33030

63132CPANEL, WINDSHIELD HEADER, INNER

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-33060

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-33080iACV40,GSV40200601-201109

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-33110iACV40,GSV40200601-201109

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-33030iACV40,GSV40200601-201109

63149DREINFORCEMENT, ROOF PANEL, NO.8

64101PANEL SUB-ASSY, UPPER BACK

main64101-33290iACV40,GSV40200601-201109

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-33070iACV40,GSV40200601-201109

64811GLASS, BACK WINDOW

main64811-06160iACV40,GSV40..LE,XLE200601-201108

*TT,T=3.5,GREEN,(L)

sub64811-33530

main64811-33530iACV40,GSV40200601-201108

*UVCEHT,T=3.5,GREEN,(J)

main64811-33530iACV40,GSV40..COMF,PREM200903-201109

*UVCEHT,T=3.5,GREEN

75573FMOULDING, BACK WINDOW, OUTSIDE

main75573-33020iACV40,GSV40..LE,XLE200601-201108

main75573-33060iACV40,GSV40..COMF,PREM200712-201109

9017906159

main90179-06159

9155180616

main91551-80616

21 parts on this diagram · 2 diagrams in section
