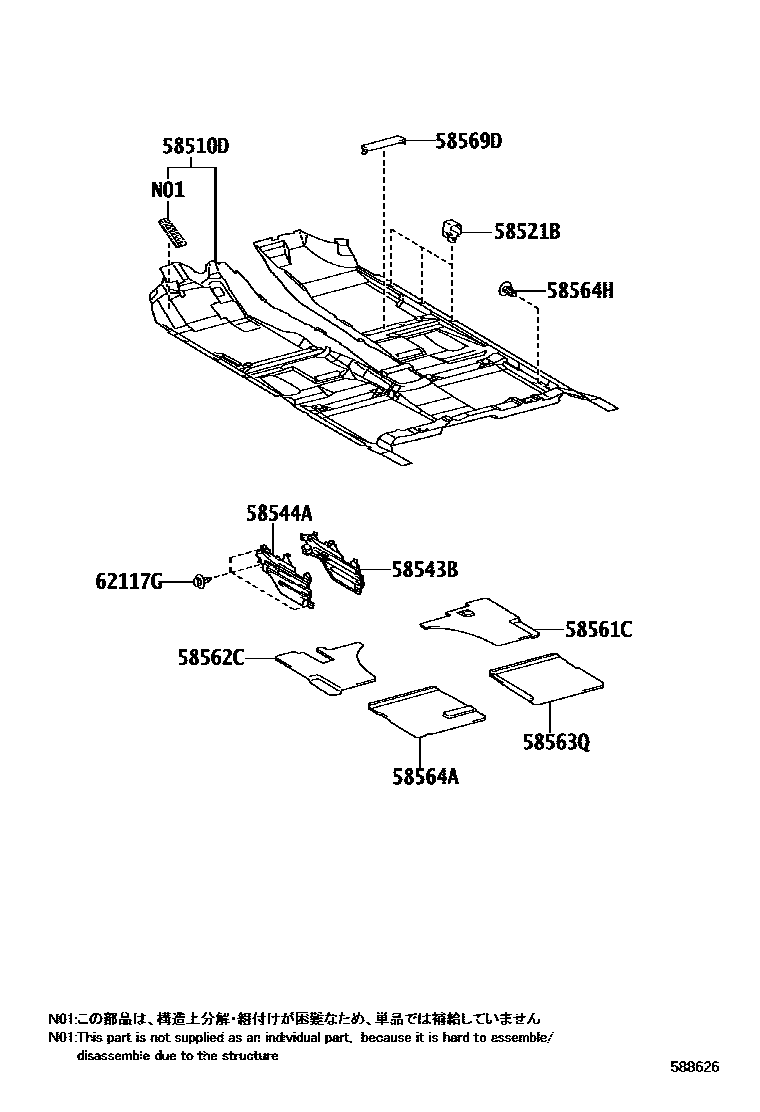

MAT & CARPET
58510DCARPET ASSY, FLOOR, FRONT
DK. GRAY FLOOR CARPET,TRIM1#
GREGE,TRIM4#
DK. GRAY FLOOR CARPET,TRIM1#
GREGE,TRIM4#
DK. GRAY FLOOR CARPET,TRIM1#
GREGE,TRIM4#
DK. GRAY FLOOR CARPET,TRIM1#
GREGE,TRIM4#
58521BHOOK, FLOOR CARPET
58543BBRACKET, FLOOR CARPET, RH
58544ABRACKET, FLOOR CARPET, LH
58561CSILENCER, FRONT FLOOR, NO.1
58562CSILENCER, FRONT FLOOR, NO.2
58563QSILENCER, FRONT FLOOR, NO.3
58564ASILENCER, FRONT FLOOR, NO.4
58564HCLIP(FOR REAR FLOOR CARPET)
58569DCOVER, FRONT FLOOR CAUTION PLATE
62117GCLIP, NO.2(FOR COWL SIDE TRIM)
11 parts on this diagram · 1 diagram in section
