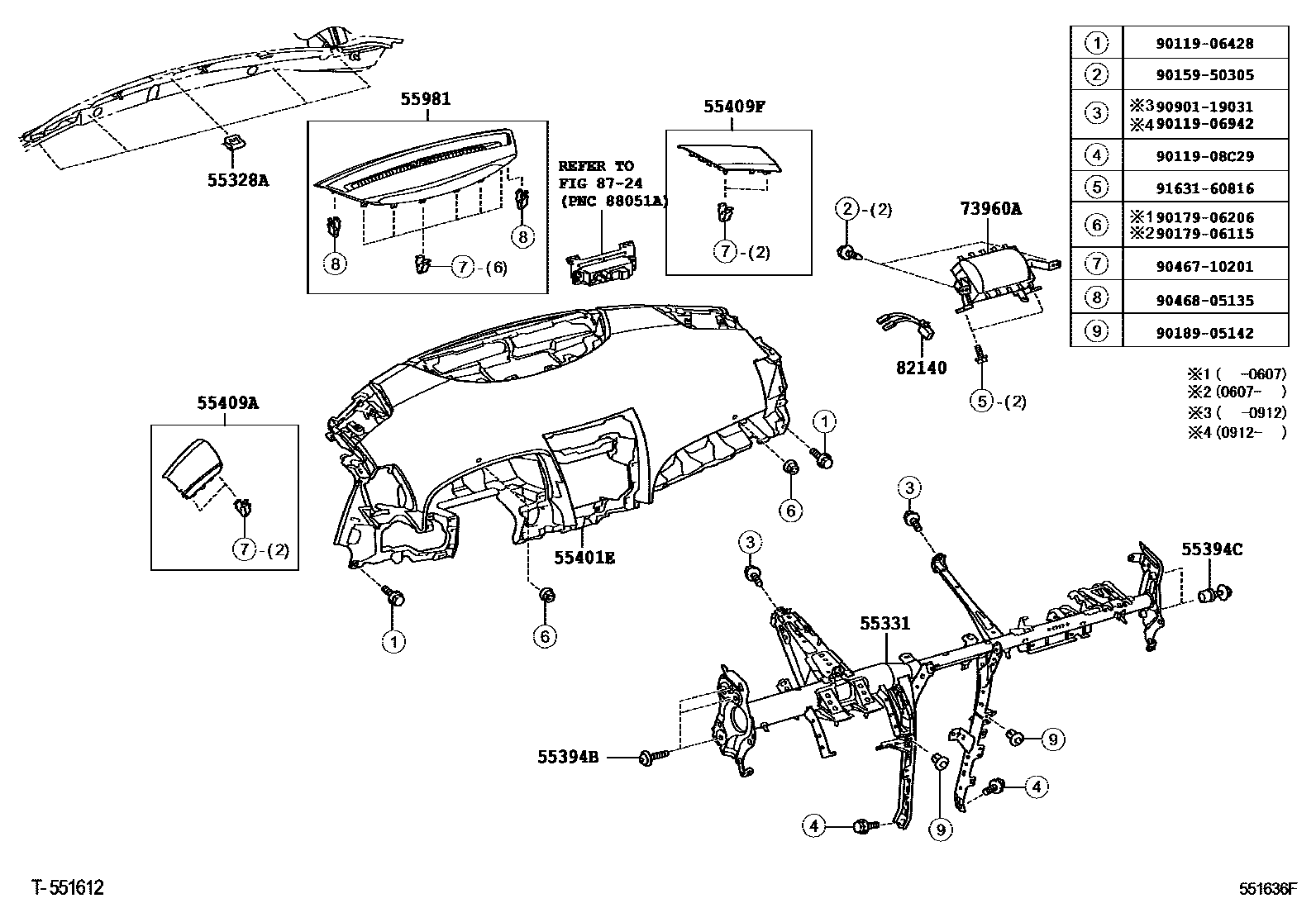

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

55328ASTAY, INSTRUMENT PANEL, NO.3

main55328-30160iACV40,GSV40200601-200703

sub55328-50170

main55328-33120iACV40,GSV40200704-200710

sub55328-50170

main55328-48110iACV40,GSV40..COMF,PREM201105-201109

main55328-50170iACV40,GSV40..LHD200711-201108

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-33320iACV40,GSV40..RHD200601-201108

main55330-33330iACV40,GSV40..LHD200601-200802

sub55330-33331

main55330-33331iACV40,GSV40..LHD200803-200903

main55330-33360iACV40,GSV40..LHD200901-201109

55394BBOLT, INSTRUMENT PANEL

main55394-30020iACV40,GSV40200601-200602

sub55394-30021

main55394-30021iACV40,GSV40200603-201109

55394CBOLT, INSTRUMENT PANEL

main55394-33040iACV40,GSV40200603-200605

sub55394-33041

main55394-33041iACV40,GSV40200606-201109

main55394-51010iACV40,GSV40200601-200603

sub55394-51011

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-33190-B0iACV40,GSV40..RHD200601-200807

DK.GRAY,TRIM1#

sub55401-33191

main55401-33190-E0iACV40,GSV40..RHD200601-200807

ASH BROWN,TRIM4#

sub55401-33191

main55401-33191-B0iACV40,GSV40..RHD200808-201108

DK.GRAY,TRIM1#

main55401-33191-E0iACV40,GSV40..RHD200808-201108

ASH BROWN,TRIM4#

main55401-33200-B0iACV40,GSV40..LHD200601-200807

DK.GRAY,TRIM1#

sub55401-33201

main55401-33200-E0iACV40,GSV40..LHD200601-200807

ASH BROWN,TRIM4#

sub55401-33201

main55401-33201-B0iACV40,GSV40..LHD..(LE,XLE)200808-201109

DK.GRAY,TRIM1#

main55401-33201-E0iACV40,GSV40..LHD200808-201109

ASH BROWN,TRIM4#

main55401-33250-B0iACV40,GSV40..COMF,PREM201105-201109

DK.GRAY,TRIM1#

sub55401-33201

main55401-33250-E0iACV40,GSV40..COMF,PREM201105-201109

ASH BROWN,TRIM4#

sub55401-33201

55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER

main55472-33080-B0iACV40,GSV40200601-201109

DK.GRAY,TRIM1#

main55472-33080-E0iACV40,GSV40200601-201109

ASH BROWN,TRIM4#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55473-33040-B0iACV40,GSV40200601-201109

DK.GRAY,TRIM1#

sub55473-33040

main55473-33040-E0iACV40,GSV40200601-201109

ASH BROWN,TRIM4#

sub55473-33040

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-33110-B0iACV40,GSV40200601-201109

DK.GRAY,TRIM1#

main55981-33110-E0iACV40,GSV40200601-201109

ASH BROWN,TRIM4#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-33120iACV40,GSV40200601-201109

82140WIRE ASSY, INSTRUMENT PANEL

main82140-33010iACV40,GSV40200601-201109

8724

9011906428

main90119-06428

9011906942

main90119-06942

9011908C29

main90119-08C29

9015950305

main90159-50305

9017906115

main90179-06115

9017906206

main90179-06206

9018905142

main90189-05142

9046710201

main90467-10201

9046805135

main90468-05135

9090119031

main90901-19031

9163160816

main91631-60816

22 parts on this diagram · 8 diagrams in section
