FLOOR SIDE MEMBER
51963FHOOK, TRANSPORT
51964FHOOK, TRANSPORT, LH
5701
57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
sub57031-33011
57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
sub57032-33011
57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3
sub57103-33052
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH
57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH
57157AREINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH
57158REINFORCEMENT, FRONT SIDE MEMBER, NO.4 LH
57191AMEMBER, FRONT SIDE, INNER REAR RH
57192AMEMBER, FRONT SIDE, INNER REAR LH
57193CPLATE, FRONT SIDE MEMBER, NO.8 RH
57193DPLATE, FRONT SIDE MEMBER, NO.8 LH
57197BOX, TORQUE, FRONT RH
57198BOX, TORQUE, FRONT LH
57249BRACKET, FLEXIBLE HOSE, NO.1
57249ABRACKET, FREXIBLE HOUSE, NO.1, LH
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57419DREINFORCEMENT, FRONT FLOOR UNDER, REAR RH
57429DREINFORCEMENT, FRONT FLOOR UNDER, REAR LH
57451BMEMBER, FRONT FLOOR CROSS, RH
57452MEMBER, FRONT FLOOR CROSS, LH
57453DMEMBER, FRONT FLOOR CROSS SIDE, RH
57454CMEMBER, FRONT FLOOR CROSS SIDE, LH
57455BRACKET, FRONT SEAT MOUNTING, OUTSIDE RH
57456BRACKET, FRONT SEAT MOUNTING, OUTSIDE LH
57475EPLATE, FRONT FLOOR CROSSMEMBER, RH
57476CPLATE, FRONT FLOOR CROSSMEMBER, LH
57513AREINFORCEMENT, FRONT FLOOR, LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57611AMEMBER, REAR FLOOR SIDE, RH
57612AMEMBER, REAR FLOOR SIDE, LH
57616AMEMBER, REAR FLOOR SIDE, REAR LH
57654CMEMBER, REAR FLOOR CROSS, NO.3
58105EPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

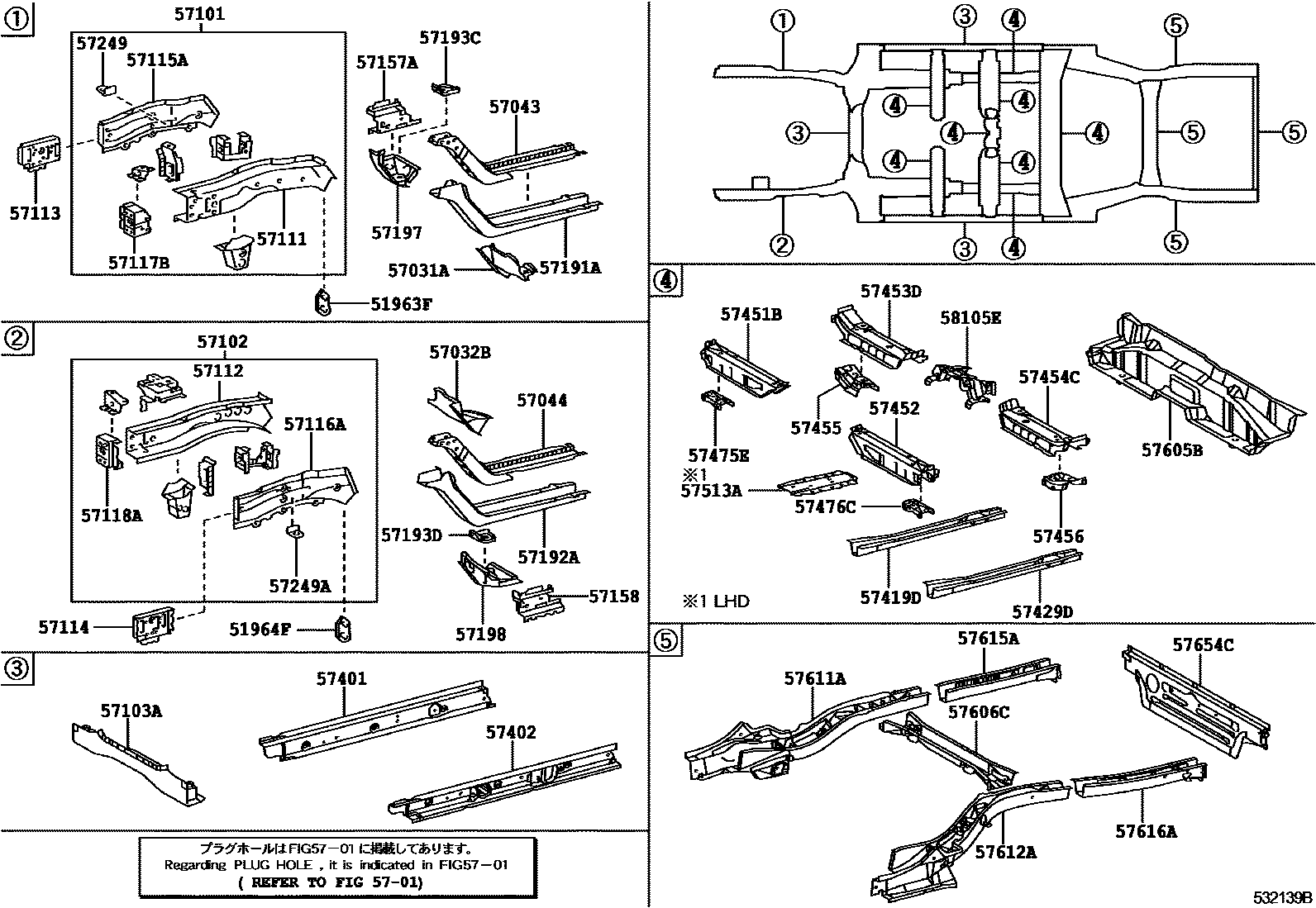

49 parts on this diagram · 1 diagram in section
