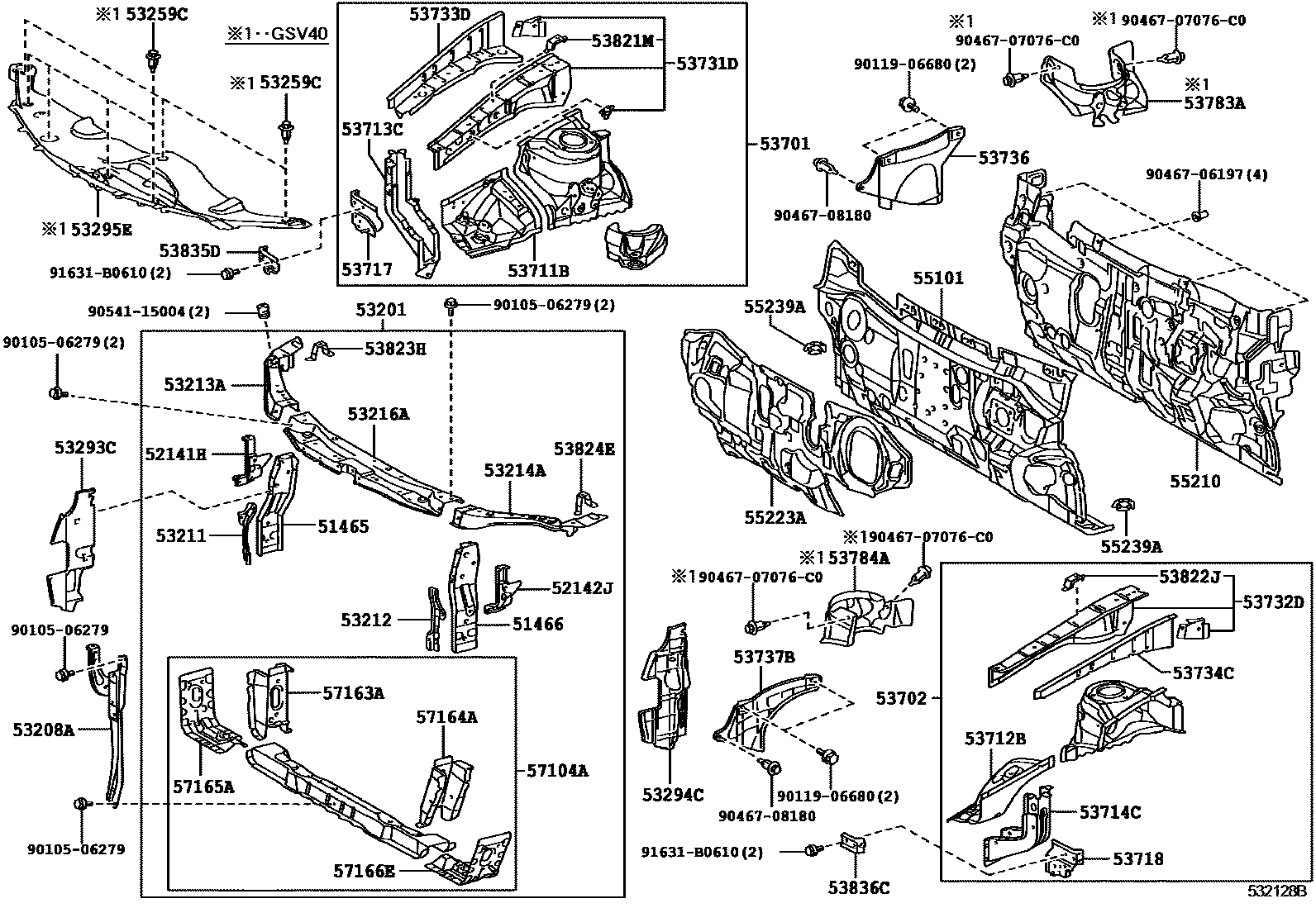

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

51465BRACE, RADIATOR SUPPORT, UPPER RH

main51465-33050iACV40,GSV40200901-201109

51466BRACE, RADIATOR SUPPORT, UPPER LH

main51466-33050iACV40,GSV40200601-200903

52141HARM, FRONT BUMPER, UPPER RH

main52141-33090iACV40,GSV40200601-200903

52142JARM, FRONT BUMPER, UPPER LH

main52142-33070iACV40,GSV40200601-200903

53201SUPPORT SUB-ASSY, RADIATOR

main53201-33160iACV40,GSV40200601-200903

main53201-33161iACV40,GSV40201009-201011

main53201-33162iACV40,GSV40201012-201109

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-33030iACV40,GSV40200601-200903

53211SUPPORT, RADIATOR, RH

main53211-33080iACV40,GSV40200601-200903

main53211-33081iACV40,GSV40201012-201109

53212SUPPORT, RADIATOR, LH

main53212-33080iACV40,GSV40200601-200903

main53212-33081iACV40,GSV40201012-201109

53213ASUPPORT, RADIATOR, UPPER RH

main53213-33030iACV40,GSV40200601-200903

53214ASUPPORT, RADIATOR, UPPER LH

main53214-33030iACV40,GSV40200601-200903

53216ASUPPORT, RADIATOR, UPPER

main53216-33130iACV40,GSV40200601-200903

53259CCLIP, RADIATOR SUPPORT TO FRAME SEAL

main90467-07211×7iGSV40200601-200903

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-33030iACV40,GSV40200601-200903

main53293-33050iACV40,GSV40200901-201109

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-33030iACV40,GSV40200601-200903

main53294-33050iACV40,GSV40200901-201109

53295ESEAL, COOL AIR INTAKE DUCT

main53295-33040iGSV40200601-200903

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-33150iACV40,GSV40200601-200903

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-33110iACV40,GSV40200601-200903

53711BAPRON, FRONT FENDER, FRONT RH

main53711-33070iACV40,GSV40200601-200903

53712BAPRON, FRONT FENDER, FRONT LH

main53712-33040iACV40,GSV40200601-200903

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-33020iACV40,GSV40200601-200903

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-33020iACV40,GSV40200601-200903

53717PLATE, FENDER APRON, RH

main53717-33050iACV40,GSV40200601-200903

53718PLATE, FENDER APRON, LH

main53718-33040iACV40,GSV40200601-200903

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-33901iACV40,GSV40200601-200903

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-33901iACV40,GSV40200601-200903

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-33040iACV40,GSV40200601-200903

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-33040iACV40,GSV40200601-200903

53736SEAL, FRONT FENDER APRON, RH

main53736-33040iACV40,GSV40200901-201109

53737BSEAL, FRONT FENDER APRON, LH

main53737-28020iACV40..5F200601-200903

main53737-33020iACV40,GSV40..ATM200601-200903

53783AINSULATOR, APRON FRONT FENDER, RH

main53783-33010iGSV40200601-200903

53784AINSULATOR, APRON FRONT FENDER, LH

main53784-33010iGSV40..LHD200601-200903

main53784-33020iGSV40..RHD200901-201108

53821MBRACKET, FRONT FENDER, REAR NO.1 RH

main53821-33030iACV40,GSV40200901-201109

53822JBRACKET, FRONT FENDER, REAR NO.1 LH

main53822-33020iACV40,GSV40200901-201109

53823HGUSSET, FRONT FENDER, RH

main53823-33010iACV40,GSV40200601-200903

53824EGUSSET, FRONT FENDER, LH

main53824-33010iACV40,GSV40200601-200903

53835DBRACKET, FRONT SIDE PANEL, RH

main53835-33060iACV40,GSV40200601-200903

53836CBRACKET, FRONT SIDE PANEL, LH

main53836-33040iACV40,GSV40200601-200903

55101PANEL SUB-ASSY, DASH

main55101-33270iACV40,GSV40..LHD..ATM200901-201109

main55101-33350iACV40..LHD..5F200901-201109

main55101-33360iACV40,GSV40..RHD..ATM200601-200901

main55101-33370iACV40..RHD..5F200901-201108

55210INSULATOR ASSY, DASH PANEL

main55210-33150iACV40,GSV40..LHD200601-200903

main55210-33151iACV40,GSV40..LHD..(LE,XLE)201001-201108

main55210-33160iACV40,GSV40..RHD200901-201108

55223AINSULATOR, DASH PANEL, OUTER

main55223-33120iACV40,GSV40..LHD..(5F,6FC)200601-200903

sub55223-33121

main55223-33130iACV40..LHD..5FC200901-201109

main55223-33150iACV40,GSV40..RHD..(5F,6FC)200901-201108

main55223-33160iACV40..RHD..5FC200901-201108

55239APLATE, DASH PANEL INSULATOR, NO.3

main55239-33020×2iACV40,GSV40200601-200903

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-33050iACV40,GSV40200601-200903

main57104-33051iACV40,GSV40201009-201109

sub57104-33052

57163AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH

main57163-33040iACV40,GSV40200601-200903

57164AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH

main57164-33040iACV40,GSV40200601-200903

57165AREINFORCEMENT, FRONT CROSSMEMBER, NO.2

main57165-33020iACV40,GSV40200601-200903

main57165-33021iACV40,GSV40201009-201109

57166EREINFORCEMENT, FRONT CROSSMEMBER, NO.2 LH

main57166-33020iACV40,GSV40200601-200903

main57166-33021iACV40,GSV40201009-201109

9010506279

main90105-06279

9011906680

main90119-06680

9046706197

main90467-06197

9046707076C0

main90467-07076C0

9046708180

main90467-08180

9054115004

main90541-15004

91631B0610

main91631-B0610

53 parts on this diagram · 2 diagrams in section
