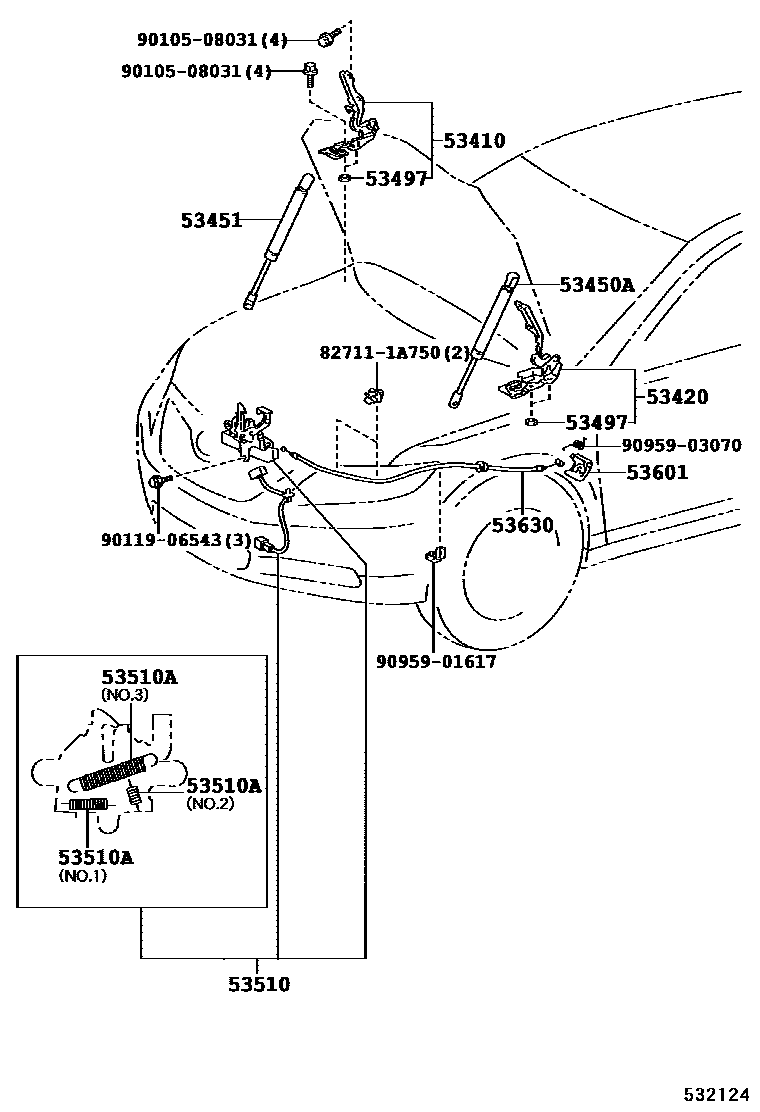

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-33180iACV40,GSV40200601-201109

53420HINGE ASSY, HOOD, LH

main53420-33180iACV40,GSV40200601-201109

53450ASUPPORT ASSY, HOOD, LH

main53450-06040iACV40,GSV40200601-201010

sub53450-06041

main53450-06041iACV40,GSV40201011-201109

sub53450-06042

53451ROD, HOOD SUPPORT

main53440-06050iACV40,GSV40200601-201010

sub53440-06051

main53440-06051iACV40,GSV40201011-201109

sub53440-06052

53497PAD, HOOD HINGE, NO.1

main53497-20070iACV40,GSV40200601-201109

T=2.0

main53497-42010iACV40,GSV40200601-201109

T=0.5

53510LOCK ASSY, HOOD

main53510-33310iACV40,GSV40..LHD200601-201002

sub53510-33311

main53510-33311iACV40,GSV40..LHD201003-201109

sub53510-33390

main53510-33330iACV40,GSV40..RHD200601-201105

sub53510-33331

main53510-33331iACV40,GSV40..RHD201106-201108

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iACV40,GSV40..RHD200601-201109

WD=0.9,CW=21,NO.1

main90506-12063iACV40,GSV40..RHD200601-201109

WD=1.2,CW=8.5,NO.2

main90506-18067iACV40,GSV40..RHD200601-201109

WD=1.8,CW=13,NO.3

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53611-12040-B5iACV40,GSV40..LHD200601-201109

DK.GRAY,TRIM1#

sub53611-12040

main53611-12040-E2iACV40,GSV40..LHD200601-201109

GREGE,TRIM4#

sub53611-12040

main53611-22010-B5iACV40,GSV40..RHD200601-201108

DK.GRAY,TRIM1#

sub53611-22010

main53611-22010-E4iACV40,GSV40..RHD200601-201108

GREGE,TRIM4#

sub53611-22010

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-33140iACV40,GSV40200601-201109

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750

9010508031

main90105-08031

9011906543

main90119-06543

9095901617

main90959-01617

9095903070

main90959-03070

14 parts on this diagram · 2 diagrams in section
