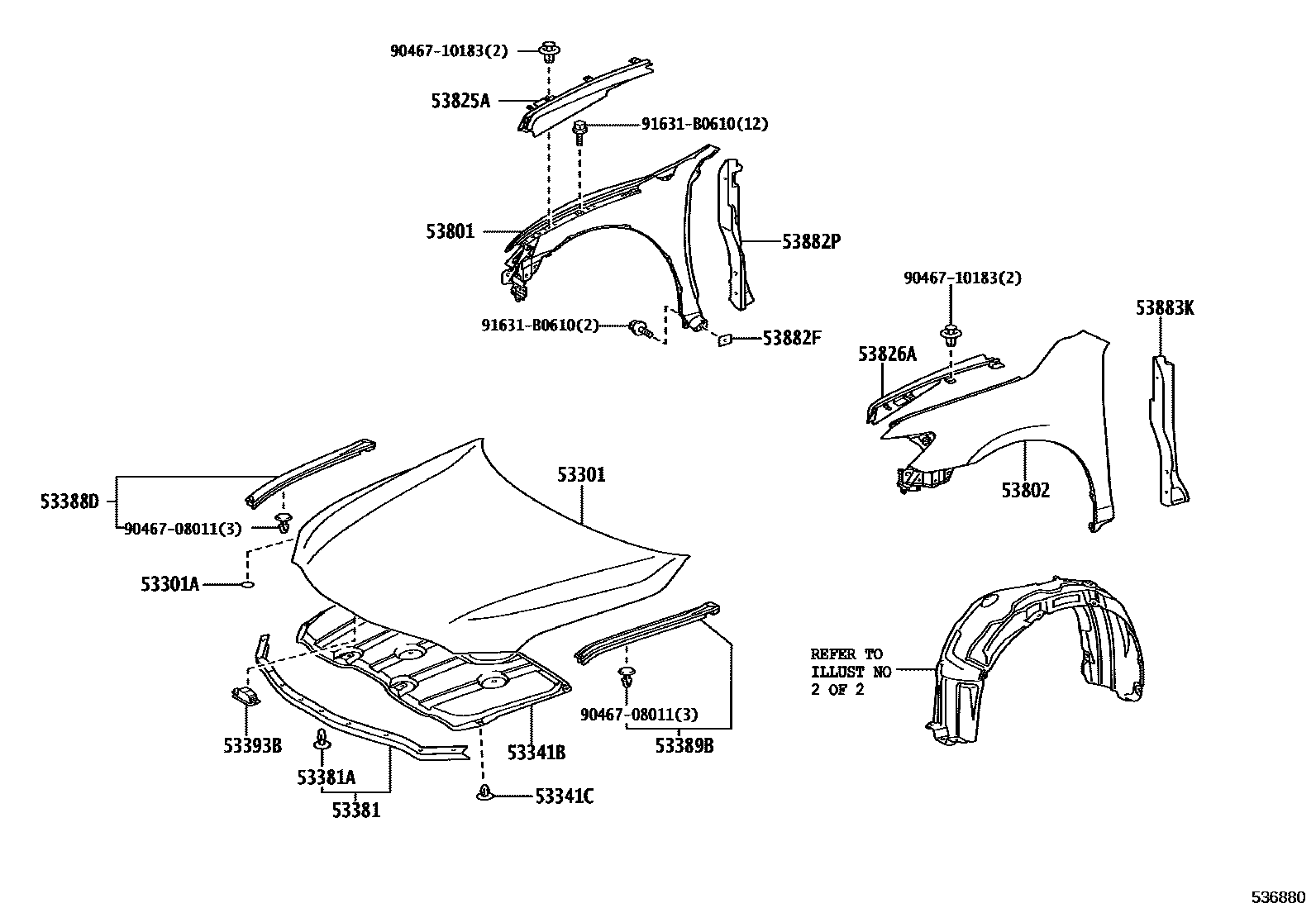

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
53301APLUG, HOLE(FOR HOOD)
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53393BPROTECTOR, HOOD, FRONT
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53825APROTECTOR, FRONT FENDER, UPPER RH
53826APROTECTOR, FRONT FENDER, UPPER LH
53882FSEAL, FRONT FENDER
9046708011
main90467-08011
9046710183
main90467-10183
91631B0610
main91631-B0610
19 parts on this diagram · 2 diagrams in section
