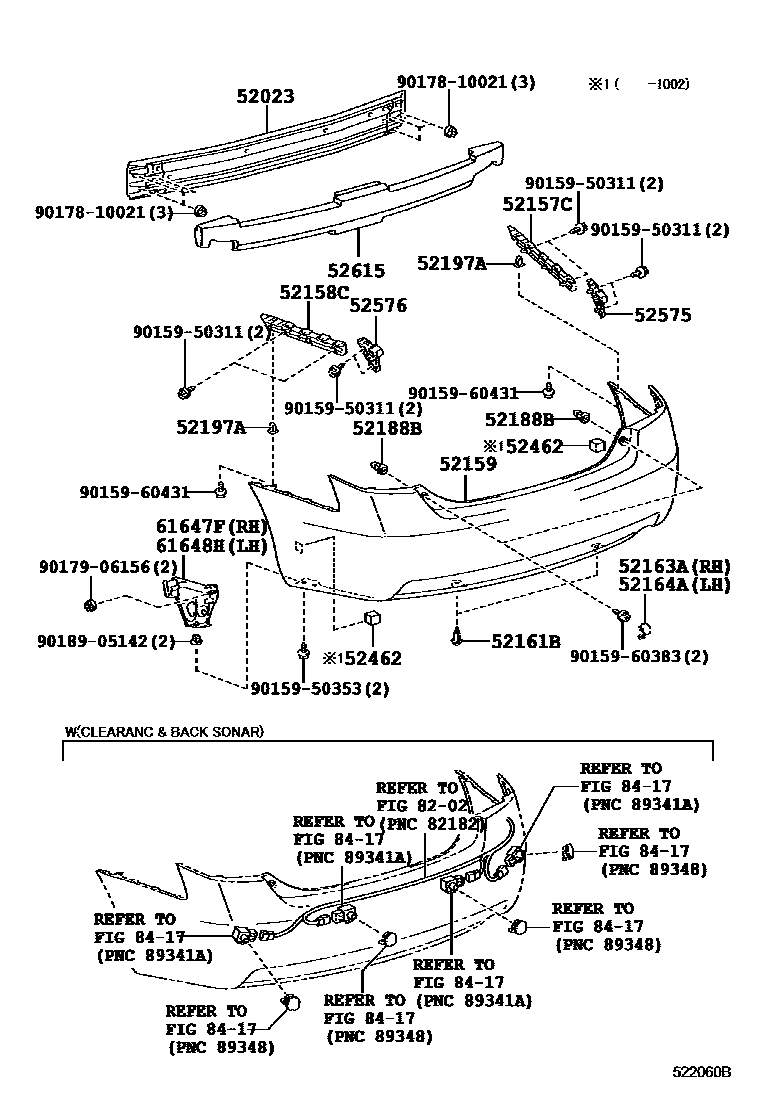

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
52161BPIECE, REAR BUMPER
sub52161-0K040
52163APLATE, REAR BUMPER, RH
52164APLATE, REAR BUMPER, LH
52188BSPACER, REAR BUMPER MOUNTING
52197ABRACKET, REAR BUMPER SEAL, RH
52462PAD, REAR BUMPER, RH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52615ABSORBER, REAR BUMPER ENERGY
61647FREINFORCEMENT, WHEEL HOUSE, RH
61648HREINFORCEMENT, WHEEL HOUSE, LH
8202
8417
9015950311
main90159-50311
9015950353
main90159-50353
9015960383
main90159-60383
9015960431
main90159-60431
9017810021
main90178-10021
9017906156
main90179-06156
9018905142
main90189-05142
24 parts on this diagram · 1 diagram in section
