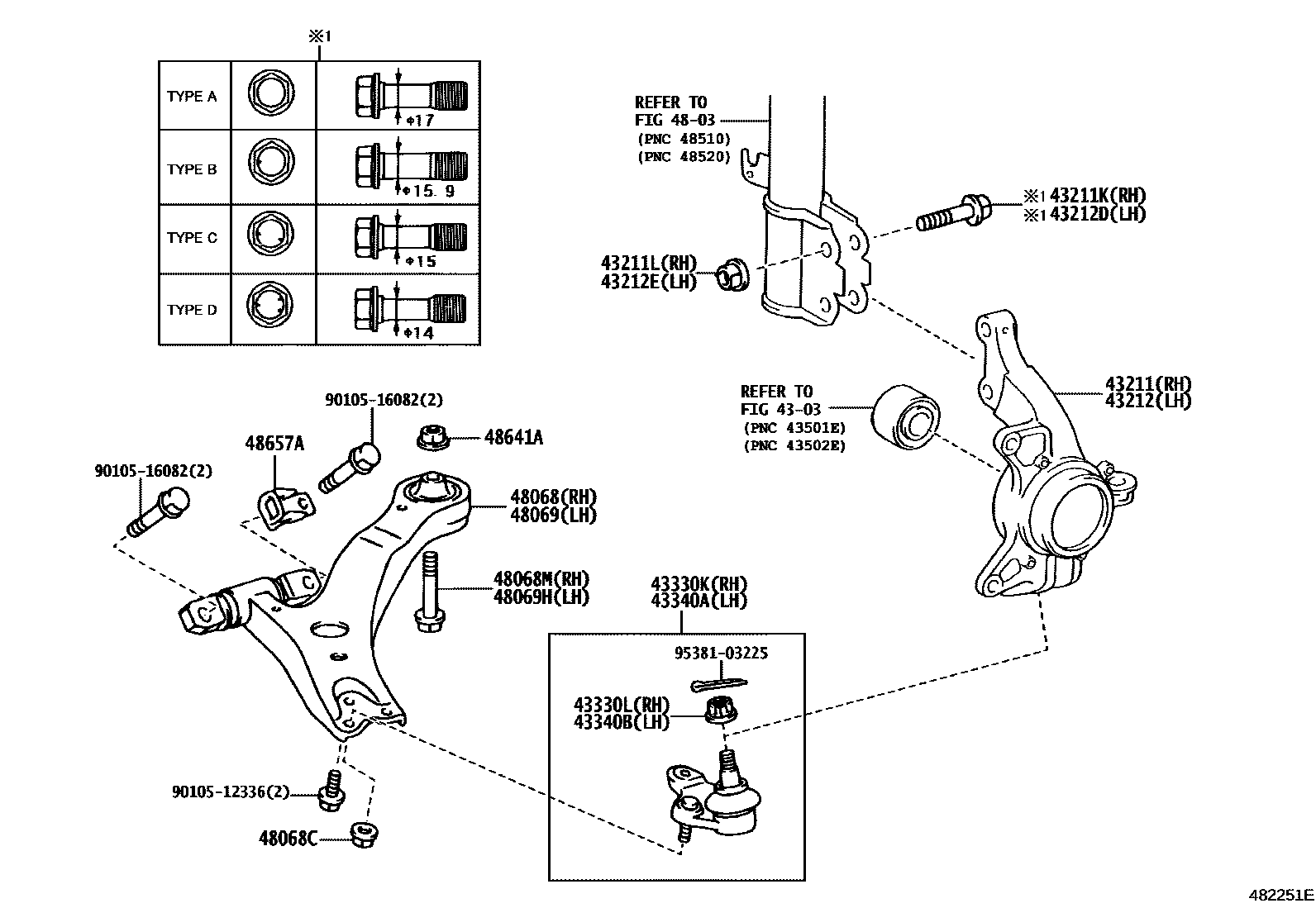

FRONT AXLE ARM & STEERING KNUCKLE

4303

43211KNUCKLE, STEERING, RH

main43211-58010iACV40,GSV40200601-201109

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17012iACV40,GSV40200601-201109

OD=17,TYPE A:REFER ILLUST.

main90105-17013iACV40,GSV40200601-201109

OD=15.9,TYPE B:REFER ILLUST.

main90105-17014iACV40,GSV40200601-201109

OD=15,TYPE C:REFER ILLUST.

main90105-17015iACV40,GSV40200601-201109

OD=14,TYPE D:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002iACV40,GSV40200601-201109

43212KNUCKLE, STEERING, LH

main43212-58010iACV40,GSV40200601-201109

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17012iACV40,GSV40200601-201109

OD=17,TYPE A:REFER ILLUST.

main90105-17013iACV40,GSV40200601-201109

OD=15.9,TYPE B:REFER ILLUST.

main90105-17014iACV40,GSV40200601-201109

OD=15,TYPE C:REFER ILLUST.

main90105-17015iACV40,GSV40200601-201109

OD=14,TYPE D:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002iACV40,GSV40200601-201109

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-39775iACV40,GSV40200601-201102

sub43330-39845

main43330-39845iACV40,GSV40201107-201109

main43330-39855iACV40,GSV40201103-201106

sub43330-39845

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iACV40,GSV40200601-201109

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-39545iACV40,GSV40200601-201102

sub43340-39605

main43340-39605iACV40,GSV40201107-201109

main43340-39615iACV40,GSV40201103-201106

sub43340-39605

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iACV40,GSV40200601-201109

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-33060iACV40,GSV40200601-201102

sub48068-33070

main48068-33070iACV40,GSV40201103-201109

48068CNUT(FOR FRONT SUSPENSION LOWER ARM)

main90178-12015iACV40,GSV40200601-201109

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14116iACV40,GSV40200601-200909

sub90119-14142

main90119-14142iACV40,GSV40200910-201010

sub90119-14146

main90119-14146iACV40,GSV40201011-201109

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-33060iACV40,GSV40200601-201102

sub48069-33070

main48069-33070iACV40,GSV40201103-201109

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14116iACV40,GSV40200601-200909

sub90119-14142

main90119-14142iACV40,GSV40200910-201010

sub90119-14146

main90119-14146iACV40,GSV40201011-201109

48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)

main90179-14068iACV40,GSV40200601-201109

48657ASTOPPER, FRONT LOWER ARM BUSH

main48657-28010iACV40,GSV40200601-201109

9010512336

main90105-12336

9010516082

main90105-16082

9538103225

main95381-03225

22 parts on this diagram · 1 diagram in section
