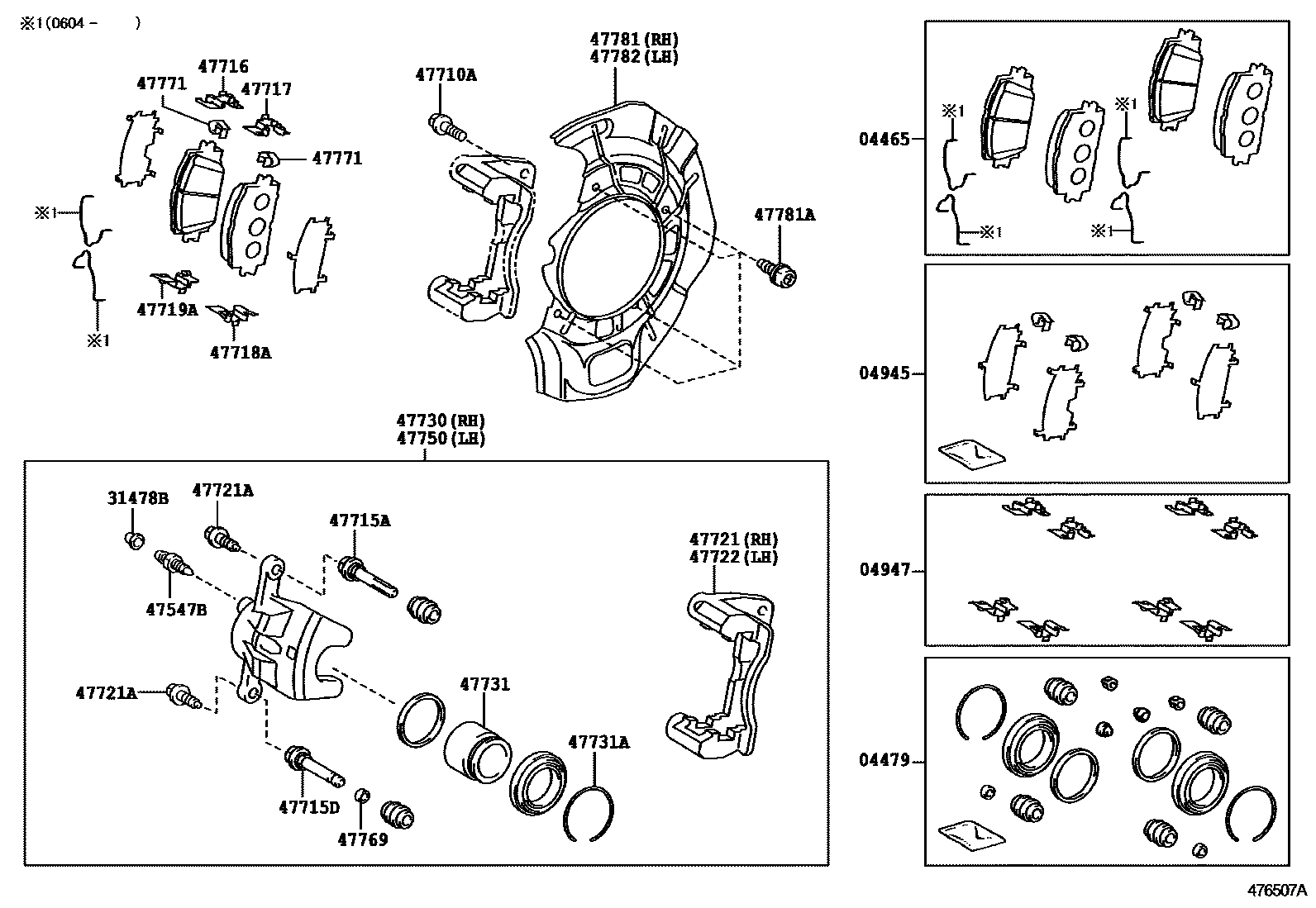

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-33440iACV40,GSV40¥13,400200601-200604

MARK NBK PN562H

sub04465-33450¥11,600

main04465-33450iACV40,GSV40¥11,600200604-200903

MARK NBK PN562H

main04465-33470iACV40,GSV40..COMF,PREM200901-201109

MARK NBK D6911H

sub04465-33471¥10,500

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-33100iACV40,GSV40¥1,800200601-200705

main04478-33130iACV40,GSV40¥1,800200706-201109

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-33260iACV40,GSV40¥1,660200601-201109

04947FITTING KIT, DISC BRAKE, FRONT

main04947-33220iACV40,GSV40¥3,330200601-200606

sub04947-33240¥2,750

main04947-33240iACV40,GSV40¥2,750200606-201109

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iACV40,GSV40¥160200601-201109

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iACV40,GSV40¥200200601-201109

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iACV40,GSV40¥160200601-201109

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52190iACV40,GSV40¥360200601-201109

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-33340iACV40,GSV40¥490200601-201109

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-33340iACV40,GSV40¥260200601-200606

main47718-33340iACV40,GSV40¥360200606-201109

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-33340iACV40,GSV40¥260200601-200606

main47719-33340iACV40,GSV40¥360200606-201109

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47718-33340iACV40,GSV40¥360200601-201109

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47719-33340iACV40,GSV40¥360200601-201109

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-33340iACV40,GSV40¥8,400200601-201109

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iACV40,GSV40¥90200601-201109

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-33340iACV40,GSV40¥8,400200601-201109

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-33340iACV40,GSV40¥47,200200601-201109

47731PISTON, FRONT DISC BRAKE

main47731-33340iACV40,GSV40¥2,680200601-201109

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-76002iACV40,GSV40¥210200601-201109

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-33340iACV40,GSV40¥47,200200601-201109

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iACV40,GSV40¥50200601-201109

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-53060iACV40,GSV40¥200200601-201109

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-33040iACV40,GSV40¥1,980200601-201109

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iACV40,GSV40¥90200601-201109

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-33040iACV40,GSV40¥1,980200601-201109

25 parts on this diagram · 2 diagrams in section
