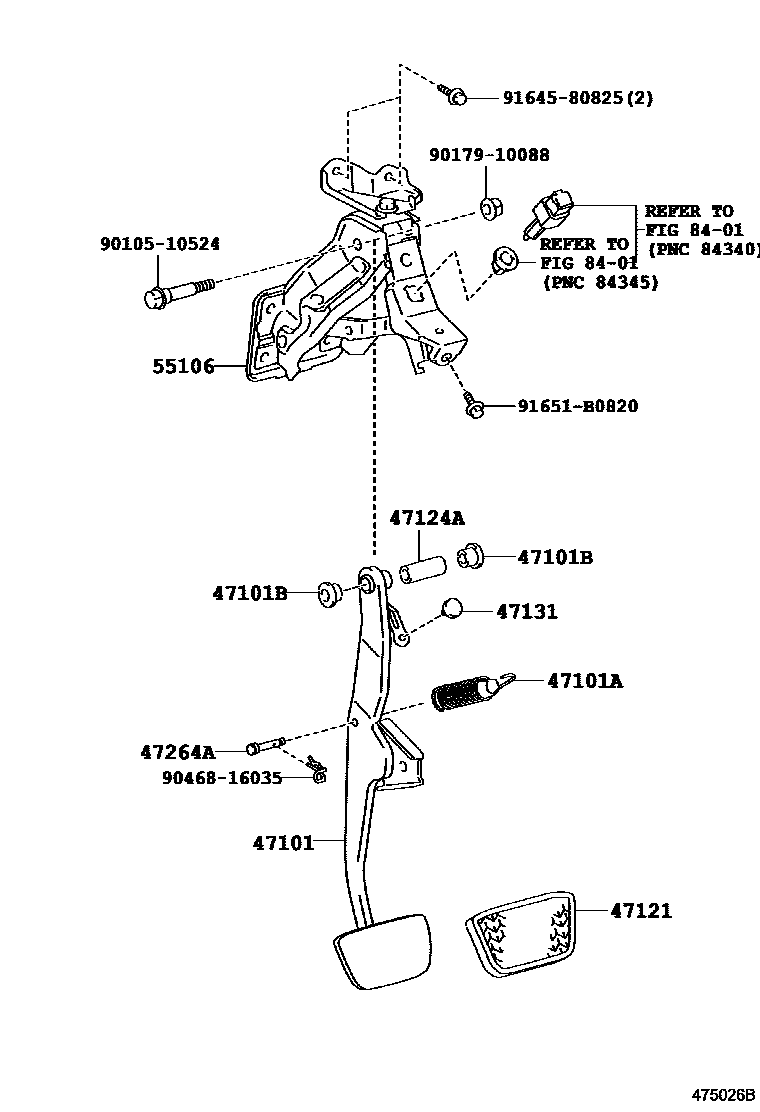

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-33100iACV40,GSV40..LHD..ATM200601-201109

main47101-33110iACV40..LHD..5F200601-201109

main47101-33120iACV40,GSV40..RHD..ATM200601-201108

main47101-33130iACV40..RHD..5F200601-201108

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14036iACV40,GSV40200601-201109

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iACV40,GSV40200601-201109

47121PAD, BRAKE PEDAL

main31321-52010iACV40..5F200601-201109

main47121-50020iACV40,GSV40..ATM200601-201109

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iACV40,GSV40200601-201109

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iACV40,GSV40200601-201109

47264APIN(FOR PUSH ROD)

main47148-33011iACV40,GSV40200601-201109

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-33120iACV40,GSV40..LHD200601-201109

main55106-33130iACV40,GSV40..RHD200601-201108

8401

9010510524

main90105-10524

9017910088

main90179-10088

9046816035

main90468-16035

9164580825

main91645-80825

91651B0820

main91651-B0820

14 parts on this diagram · 1 diagram in section
