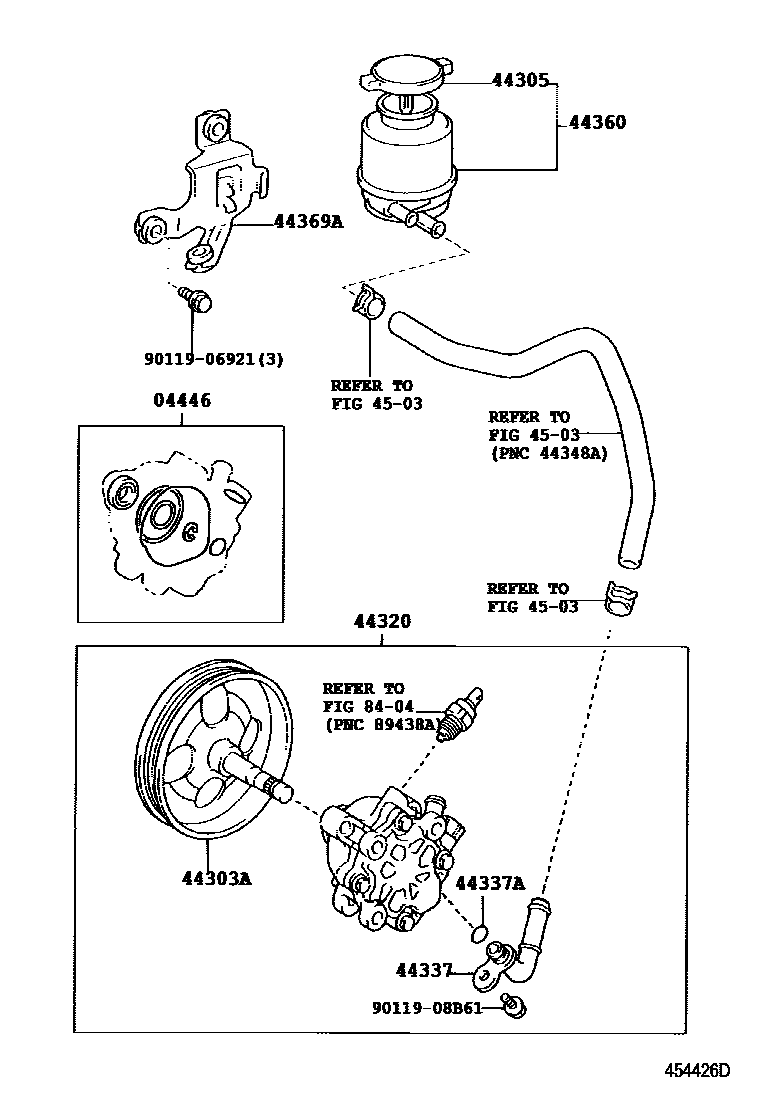

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-32050iACV40,GSV40200601-201109

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-28010iACV40,GSV40200601-201109

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-28030iACV40,GSV40200601-200801

sub44305-28060

main44305-28060iACV40,GSV40200802-201109

sub44305-28061

44320PUMP ASSY, VANE

main44310-33170iGSV40200601-201109

main44310-33180iACV40200601-201109

44337UNION, POWER STEERING SUCTION PORT

main44337-32110iACV40200601-201109

main44337-58010iGSV40200601-201109

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11020iACV40,GSV40200601-201109

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-33040iACV40,GSV40200601-201109

44369ABRACKET, OIL RESERVOIR, NO.1

main44390-33020iACV40,GSV40200601-200809

sub44390-33021

main44390-33021iACV40,GSV40200810-201109

4503

8404

9011906921

main90119-06921

9011908B61

main90119-08B61

12 parts on this diagram · 2 diagrams in section
