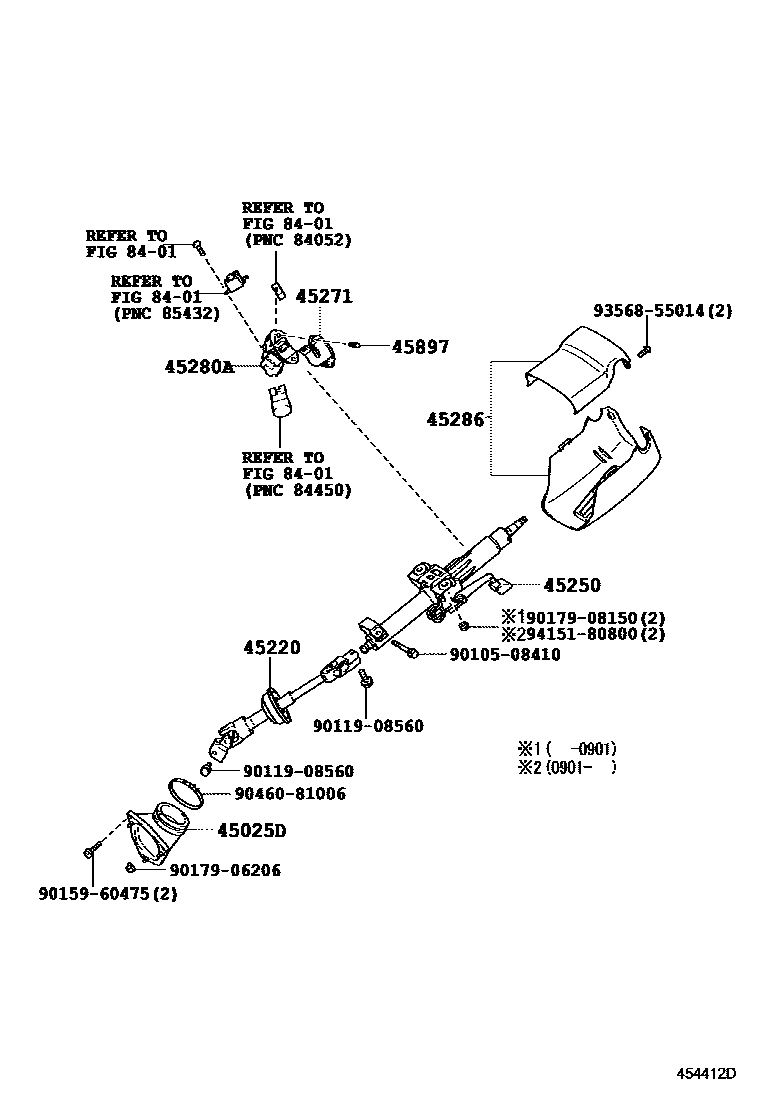

STEERING COLUMN & SHAFT

0001 1 0003 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-33100iACV40,GSV40..RHD200601-201108

main45025-33110iACV40,GSV40..LHD200601-201109

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-33180iACV40,GSV40..RHD200601-201108

main45220-33190iACV40,GSV40..LHD200601-200708

main45220-33280iACV40,GSV40..LHD200709-200807

sub45220-33281

main45220-33281iACV40,GSV40..LHD200808-201109

45250COLUMN ASSY, STEERING

main45250-33660iACV40,GSV40200601-201109

main45250-33670iGSV40200901-201109

45271CLAMP, STEERING COLUMN, UPPER

main45271-22020iACV40,GSV40200810-201109

main45271-33050iACV40,GSV40200601-200810

sub45271-22020

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-22510iACV40,GSV40..ATM200601-201109

main45280-52090iACV40..5F200601-201109

sub45280-22510

45286COVER, STEERING COLUMN

main45286-33932-B1iACV40,GSV40200601-200810

DK.GRAY,TRIM1#

sub45286-33936

main45286-33932-E2iACV40,GSV40200601-200810

ASH BROWN,TRIM4#

sub45286-33936

main45286-33936-B1iACV40,GSV40200810-201004

DK.GRAY,TRIM1#

main45286-33936-E2iACV40200810-201004

ASH BROWN,TRIM4#

main45286-33937-B1iGSV40200901-201004

DK.GRAY,TRIM1#

main45286-33937-E2iGSV40200901-201004

ASH BROWN,TRIM4#

main45286-33939-B1iACV40201004-201109

DK.GRAY,TRIM1#

main45286-33939-E2iACV40201004-201109

ASH BROWN,TRIM4#

main45286-33940-B0iGSV40201004-201109

DK.GRAY,TRIM1#

main45286-33940-E0iGSV40201004-201109

ASH BROWN,TRIM4#

45897BOLT, STEERING LOCK SET

main45897-12020iACV40,GSV40200601-201109

8401

9010508410

main90105-08410

9011908560

main90119-08560

9015960475

main90159-60475

9017906206

main90179-06206

9017908150

main90179-08150

9046081006

main90460-81006

9356855014

main93568-55014

9415180800

main94151-80800

16 parts on this diagram · 2 diagrams in section
