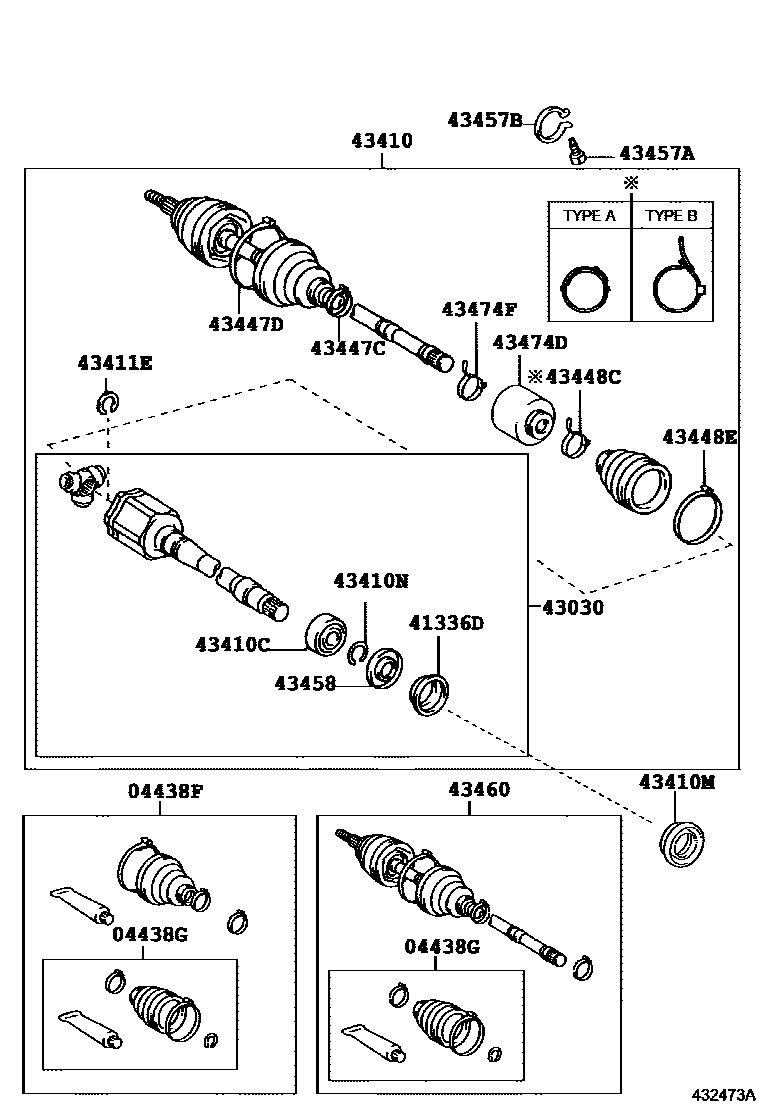

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1RH 0004 1RH 0005 1RH 0006 1LH 0007 1LH 0008 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-06290iACV40..COMF200712-201109

main04427-06300iGSV40200601-200811

sub04427-0E030

main04427-0E030iGSV40200811-200903

sub04428-0E060¥10,800

main04427-44040iACV40..LE¥10,800200606-201108

sub04427-44041¥9,000

main04428-0E060iGSV40¥10,800200901-201004

main04428-0W070iGSV40201004-201109

main04428-42070iACV40..5FC..LE¥10,800200601-200903

sub04428-42071¥10,800

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-06110iGSV40200601-200808

sub04438-08130¥5,500

main04438-07010iACV40..COMF¥6,700200712-201109

sub04438-06400¥6,700

main04438-08130iGSV40¥5,500200808-201109

main04438-42180iACV40..LE¥5,500200601-201108

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-06020iACV40,GSV40..COMF,PREM,XLE¥890200601-201109

main41336-12020iACV40..LE¥330200601-201108

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-06190iACV40..5FC..LE200608-200903

(L)

main43030-06280iACV40..COMF200712-201109

main43030-0W040iGSV40¥29,000200601-201109

main43030-33051iACV40..LE¥35,900200601-200903

(J)

main43030-33051iACV40..LE¥35,900200901-201108

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-06670iACV40..5FC..LE200608-200901

(L)

main43410-06680iACV40..COMF200712-201109

main43410-0W180iGSV40200601-201109

sub43410-06780

main43410-33290iACV40..5FC¥82,800200601-201108

main43410-33290iACV40..5FC..LE¥82,800200608-200901

(J)

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90080-36133iACV40,GSV40..COMF,PREM,XLE¥2,750200601-201109

main90363-41003iACV40..LE¥2,750200901-201108

main90363-41003iACV40..LE¥2,750200601-200903

(J)

main90363-C0001iACV40..5FC..LE200608-200903

(L)

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40029iGSV40¥400200601-201109

sub90311-40038¥400

main90311-40030iACV40..5F¥310200601-201102

sub90311-40036¥310

main90311-40031iACV40..5FC..COMF¥470200601-201109

main90311-40036iACV40..5F¥310201102-201109

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90080-52013iACV40,GSV40..COMF,PREM,XLE¥140200601-201109

main90520-38015iACV40..LE¥100200601-201108

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-08040iGSV40¥60200601-201109

main43425-28010iACV40..LE¥40200601-201108

main90080-52118iACV40..COMF¥160200712-201109

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-04030iACV40,GSV40..COMF,PREM,XLE¥190200601-201109

main42345-42100iACV40..LE¥220200601-201108

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-06080iACV40..COMF¥440200712-201109

main42345-06250iGSV40¥800200601-201109

main42345-42090iACV40..LE¥340200601-201108

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-07020iACV40..COMF¥320200712-201109

main42345-08070iGSV40¥360200601-201109

main42345-42010iACV40..LE¥200200601-201108

TYPE A:REFER ILLUST.

main90949-01559iACV40..LE¥320200601-201108

TYPE B:REFER ILLUST.

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-06240iGSV40¥430200601-201109

main42345-07010iACV40..COMF¥480200712-201109

main42345-12160iACV40..5FC..LE¥300200601-201108

43457BRACKET, DRIVE SHAFT BEARING

main43457-33020iACV40..5FC¥6,200200601-201109

main43457-33030iGSV40¥4,270200601-201109

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461iACV40,GSV40¥200200601-201109

*10-1.25PX19.8-8.3

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-78002iACV40,GSV40¥160200601-201109

43458COVER, FRONT DRIVE SHAFT DUST

main43458-06020iACV40,GSV40..COMF,PREM,XLE¥650200601-201109

main43458-12010iACV40..LE¥910200601-201108

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09M20iGSV40200601-201109

main43470-09V10iACV40..COMF200712-201109

main43470-39545iACV40..5FC¥48,600200601-201108

main43470-39545iACV40..5FC..LE¥48,600200608-200801

(J)

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-06140iACV40..5FC..LE200608-200903

(L)

sub43474-06500

main43474-0W030iACV40,GSV40..COMF,PREM,XLE¥3,940200601-201109

main43474-48020iACV40..LE¥3,940200901-201108

sub43474-48080¥2,480

main43474-48020iACV40..LE¥3,940200601-200903

(J)

sub43474-48080¥2,480

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-06100iACV40,GSV40..COMF,PREM,XLE¥200200601-201109

main42345-06420iACV40..5FC..LE200608-200903

(L)

main42345-14010iACV40..LE¥700200601-200903

(J)

main42345-14010iACV40..LE¥700200901-201108

20 parts on this diagram · 8 diagrams in section
