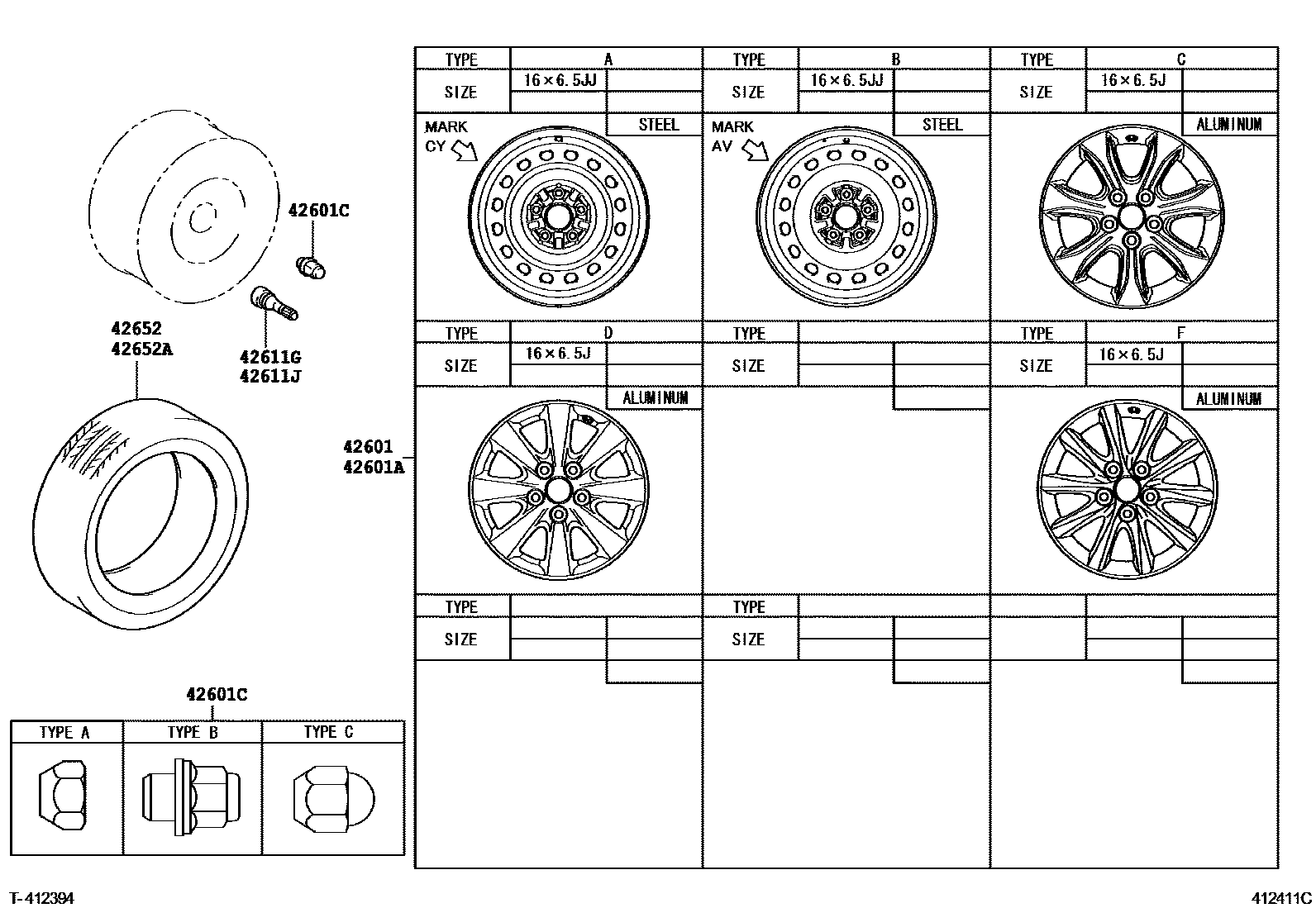

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
16X6.5JJ, #,TYPE A:REFER ILLUST.
16X6.5J,#,ARGENTINA SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM E,TYPE D:REFER ILLUST.
sub42611-33531
16X6.5J,#,INDIA SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5J INDIA SPEC ALUMINUM,TYPED:REFER ILLUST.
sub42611-33531
16X6.5J,#,TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM,TYPE D:REFER ILLUST.
sub42611-33531
16X6.5J,#,CHILE SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM E,TYPE D:REFERILLUST.
sub42611-33531
16X6.5J,#,TURKEY SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM E,TYPE D:REFERILLUST.
sub42611-33531
16X6.5J,#,HONG KONG SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM E,TYPE D:REFER ILLUST.
sub42611-33531
16X6.5J,#,TURKEY SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM E,TYPE D:REFERILLUST.
sub42611-33620
16X6.5J,#,INDIA SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5J INDIA SPEC ALUMINUM,TYPED:REFER ILLUST.
sub42611-33620
16X6.5J,#,TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM,TYPE D:REFER ILLUST.
sub42611-33620
16X6.5J,#,CHILE SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM E,TYPE D:REFERILLUST.
sub42611-33620
16X6.5J,#,HONG KONG SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM E,TYPE D:REFER ILLUST.
sub42611-33620
16X6.5J,#,ARGENTINA SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM E,TYPE D:REFER ILLUST.
sub42611-33620
16X6.5JJ,#,TYPE B:REFER ILLUST.
16X6.5J,#,TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM,TYPE F:REFER ILLUST.
sub42611-33770
16X6.5J,#,HONG KONG SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM,TYPE F:REFER ILLUST.
sub42611-33770
16X6.5J,#,INDIA SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5J INDIA SPEC ALUMINUM,TYPEF:REFER ILLUST.
sub42611-33770
42601AWHEEL, DISC (FOR SPARE)
16X6.5JJ, #,TYPE A:REFER ILLUST.
16X6.5J,#,TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM,TYPE D:REFER ILLUST.
sub42611-33531
16X6.5J,#,INDIA SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5J INDIA SPEC ALUMINUM,TYPED:REFER ILLUST.
sub42611-33531
16X6.5J,#,CHILE SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM E,TYPE D:REFERILLUST.
sub42611-33531
16X6.5J,#,TURKEY SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM E,TYPE D:REFERILLUST.
sub42611-33531
16X6.5J,#,HONG KONG SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM E,TYPE D:REFER ILLUST.
sub42611-33531
16X6.5J,#,ARGENTINA SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM E,TYPE D:REFER ILLUST.
sub42611-33531
16X6.5J,#,INDIA SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5J INDIA SPEC ALUMINUM,TYPED:REFER ILLUST.
sub42611-33620
16X6.5J,#,TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM,TYPE D:REFER ILLUST.
sub42611-33620
16X6.5J,#,CHILE SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM E,TYPE D:REFERILLUST.
sub42611-33620
16X6.5J,#,TURKEY SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM E,TYPE D:REFERILLUST.
sub42611-33620
16X6.5J,#,HONG KONG SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM E,TYPE D:REFER ILLUST.
sub42611-33620
16X6.5J,#,ARGENTINA SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM E,TYPE D:REFER ILLUST.
sub42611-33620
16X6.5JJ,#,TYPE B:REFER ILLUST.
16X6.5J,#,HONG KONG SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM,TYPE F:REFER ILLUST.
sub42611-33770
16X6.5J,#,INDIA SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5J INDIA SPEC ALUMINUM,TYPEF:REFER ILLUST.
sub42611-33770
16X6.5J,#,TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM,TYPE F:REFER ILLUST.
sub42611-33770
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM E,TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM,TYPE B:REFER ILLUST.
TIRE & DISK WHEEL-215/60R16 95V 6.5J INDIA SPEC ALUMINUM,TYPE B:REFER ILLUST.
TYPE C:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42652TIRE
215/60R16 95V,*Y/H
215/60R16 95V,*Y/H
215/60R16 95V,*Y/H,HONG KONG SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5JJ E
215/60R16 95V,*Y/H,HONG KONG SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM E
215/60R16 95V,*Y/H,ARGENTINA SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5JJ E
215/60R16 95V,*Y/H,ARGENTINA SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM E
215/60R16 95V,*Y/H,CHILE SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5JJ E
215/60R16 95V,*Y/H,CHILE SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM E
215/60R16 95V,*Y/H,TURKEY SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5JJ E
215/60R16 95V,*Y/H,TURKEY SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM E
215/60R16 95V,*Y/H
42652ATIRE (FOR SPARE)
215/60R16 95V,*Y/H
215/60R16 95V,*Y/H
215/60R16 95V,*Y/H,HONG KONG SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5JJ E
215/60R16 95V,*Y/H,HONG KONG SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM E
215/60R16 95V,*Y/H,TURKEY SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM E
215/60R16 95V,*Y/H,ARGENTINA SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5JJ E
215/60R16 95V,*Y/H,ARGENTINA SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM E
215/60R16 95V,*Y/H,CHILE SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5JJ E
215/60R16 95V,*Y/H,CHILE SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM E
215/60R16 95V,*Y/H,TURKEY SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5JJ E
215/60R16 95V,*Y/H
7 parts on this diagram · 3 diagrams in section
