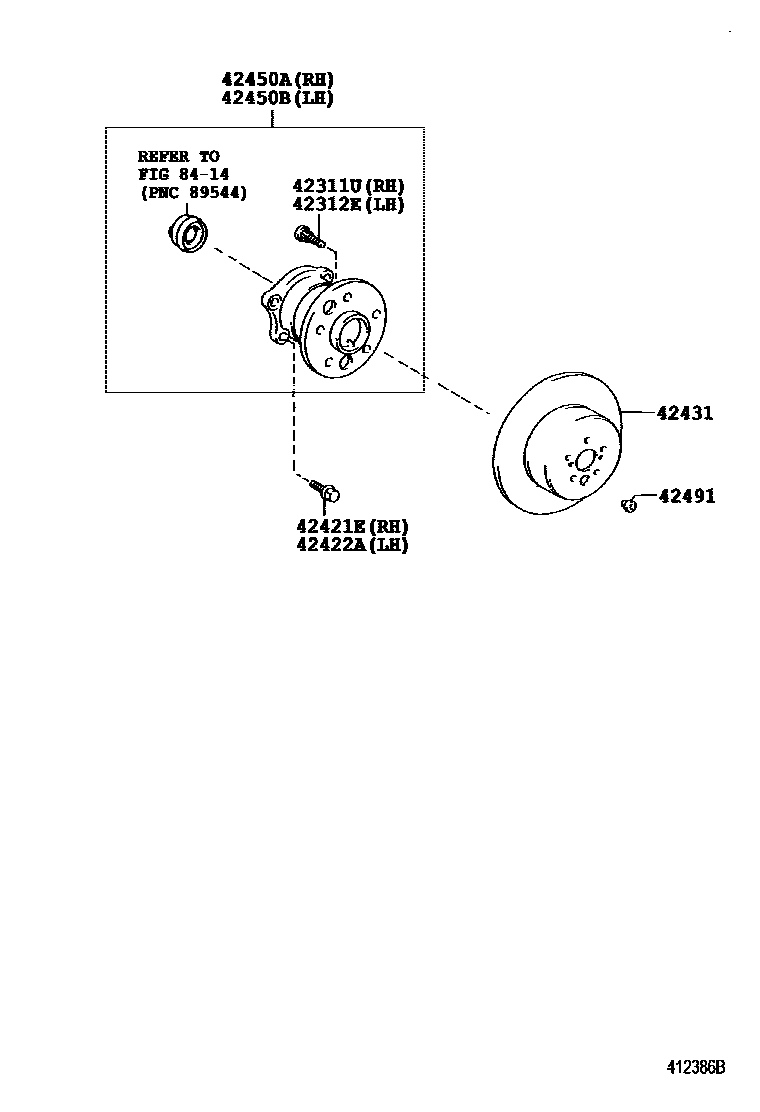

REAR AXLE SHAFT & HUB

0001 1 0002 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iACV40,GSV40¥240200601-201109

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iACV40,GSV40¥240200601-201109

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-10510iACV40,GSV40¥140200601-201109

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-10510iACV40,GSV40¥140200601-201109

42431DISC, REAR

main42431-33130iACV40,GSV40¥8,200200601-201109

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-48011iACV40,GSV40¥36,100200601-201109

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42460-48011iACV40,GSV40¥36,100200601-201109

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iACV40,GSV40¥140200601-201109

8414

9 parts on this diagram · 2 diagrams in section
