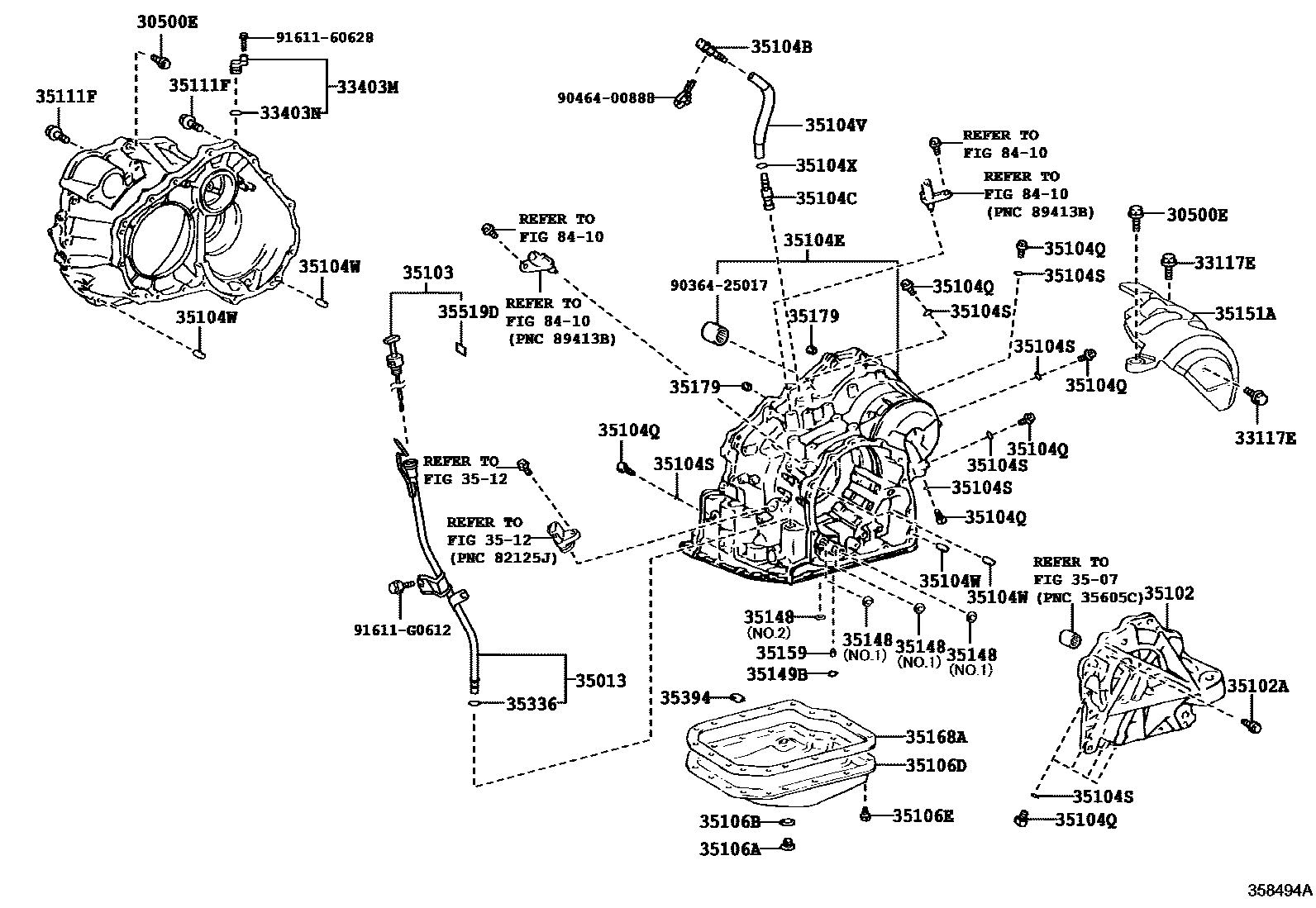

TRANSMISSION CASE & OIL PAN (ATM)
30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)
*12-1.25PX17.5
*10-1.25PX41-28,NO.3
*12-1.25PX55-30
*12-1.25PX55-30,NO.1
*12-1.25PX50-30,NO.2
*10-1.25PX50-30
*10-1.25PX65-30
33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)
33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)
33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)
35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER
3507
35102COVER SUB-ASSY, TRANSAXLE REAR
sub35102-33061
35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)
*8-1.25PX30-25
*8-1.25PX28-22,NO.1
*8-1.25PX28-22,NO.2
35104BPLUG, BREATHER, NO.1 (ATM)
35104CPLUG, BREATHER, NO.2 (ATM)
35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE
sub35104-28093
sub35104-33081
sub35422-33040
sub82123-28431
sub82715-44520
sub90105-08066
sub90119-08868
sub90301-19016
sub90301-30007
sub35141-33071
35104QPLUG, NO.1 (FOR TRANSAXLE CASE)
35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)
35104XRING, O (FOR BREATHER PLUG)
35106APLUG SUB-ASSY, DRAIN (ATM)
35106BGASKET, DRAIN PLUG (ATM)
35106EBOLT (FOR TRANSAXLE OIL PAN)
35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
*6-1.00PX50-25
*8-1.25PX42-30
*8-1.25PX50-30
*8-1.25PX45-22,NO.1
*8-1.25PX45-22,NO.2
3512
35148GASKET, GOVERNOR APPLY, NO.1
NO.2
NO.1
35149BGASKET, TRANSAXLE CASE 2ND BRAKE
35151ACOVER, TRANSAXLE CASE, UPPER
35159GASKET, BRAKE DRUM
35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN
35179GASKET, OVERDRIVE BRAKE
35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION
8410
9036425017
main90364-25017
9046400888
main90464-00888
9161160628
main91611-60628
91611G0612
main91611-G0612
37 parts on this diagram · 2 diagrams in section
