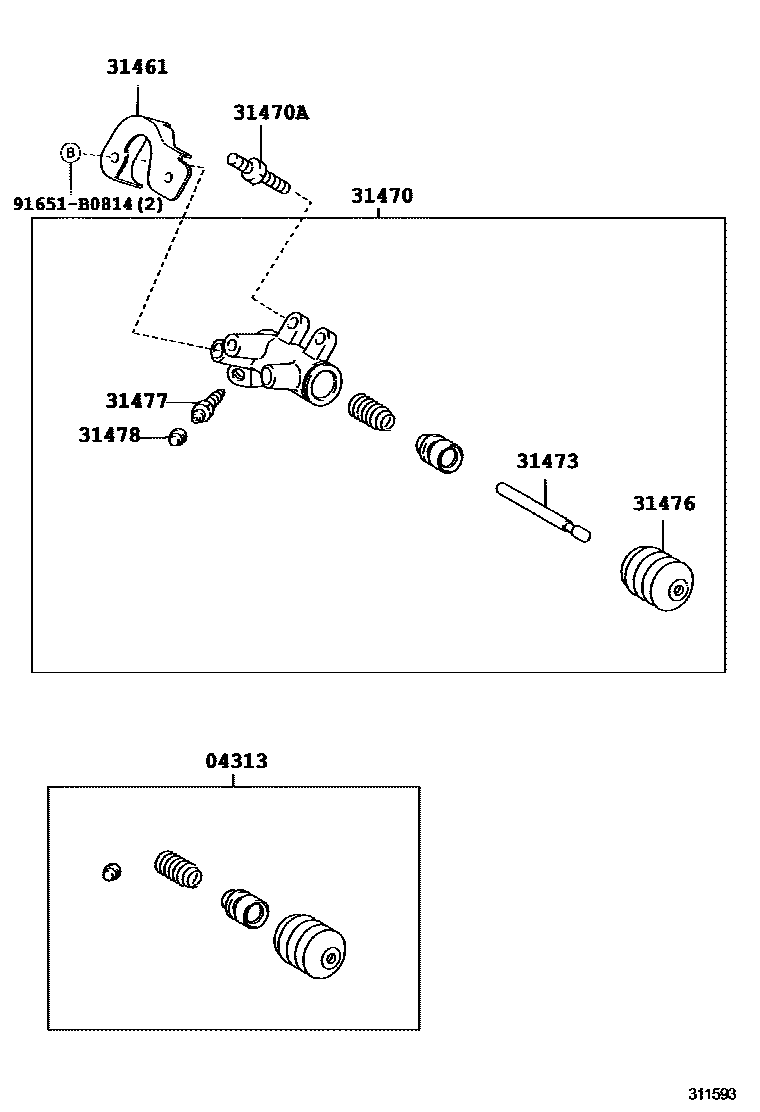

CLUTCH RELEASE CYLINDER
04313CYLINDER KIT, CLUTCH RELEASE
31461INSULATOR, RELEASE CYLINDER HEAT
31470CYLINDER ASSY, CLUTCH RELEASE
31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
*8-1.25PX25-20.1
31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31476BOOT, CLUTCH RELEASE CYLINDER
31477PLUG, BLEEDER(FOR RELEASE CYLINDER)
31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
91651B0814
main91651-B0814
9 parts on this diagram · 1 diagram in section
