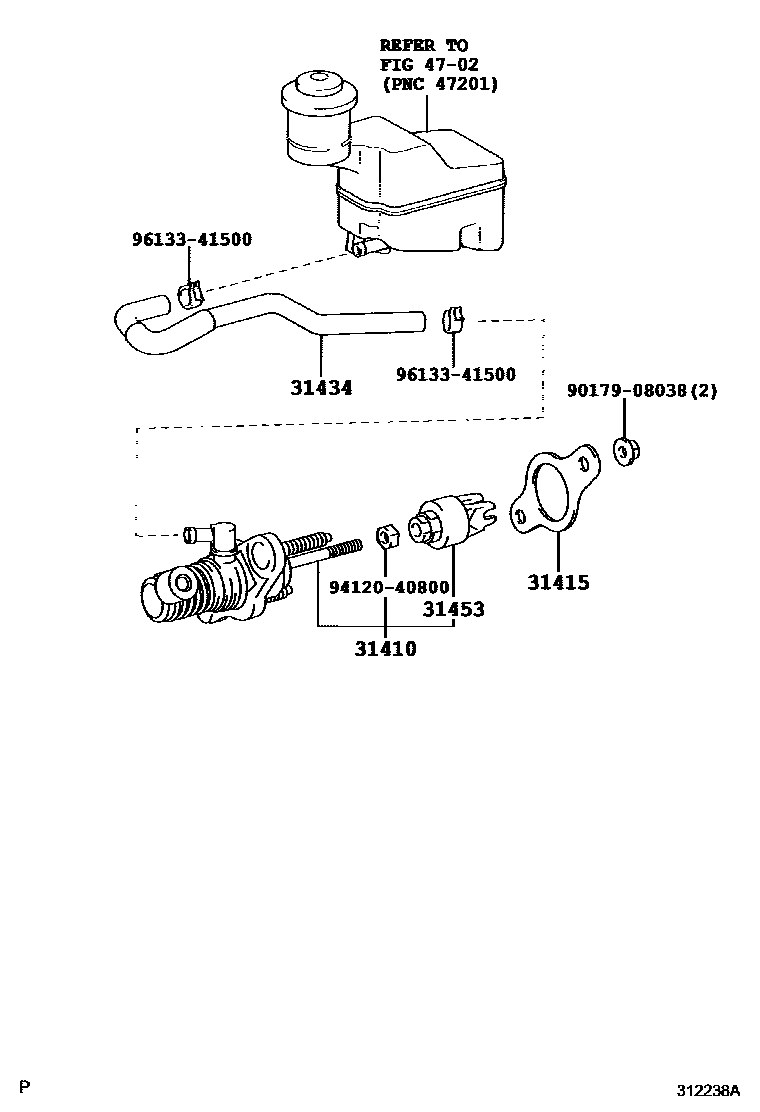

CLUTCH MASTER CYLINDER

31410CYLINDER ASSY, CLUTCH MASTER

main31420-33030iACV40..5F200601-201109

31415GASKET, CLUTCH MASTER CYLINDER

main31415-60020iACV40..5F200601-201109

31434TUBE, CLUTCH RESERVOIR

main31434-33060iACV40..RHD..5F200601-201108

main31434-33070iACV40..LHD..5F200601-201109

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-52010iACV40..5F200601-201109

4702

9017908038

main90179-08038

9412040800

main94120-40800

9613341500

main96133-41500

8 parts on this diagram · 1 diagram in section
