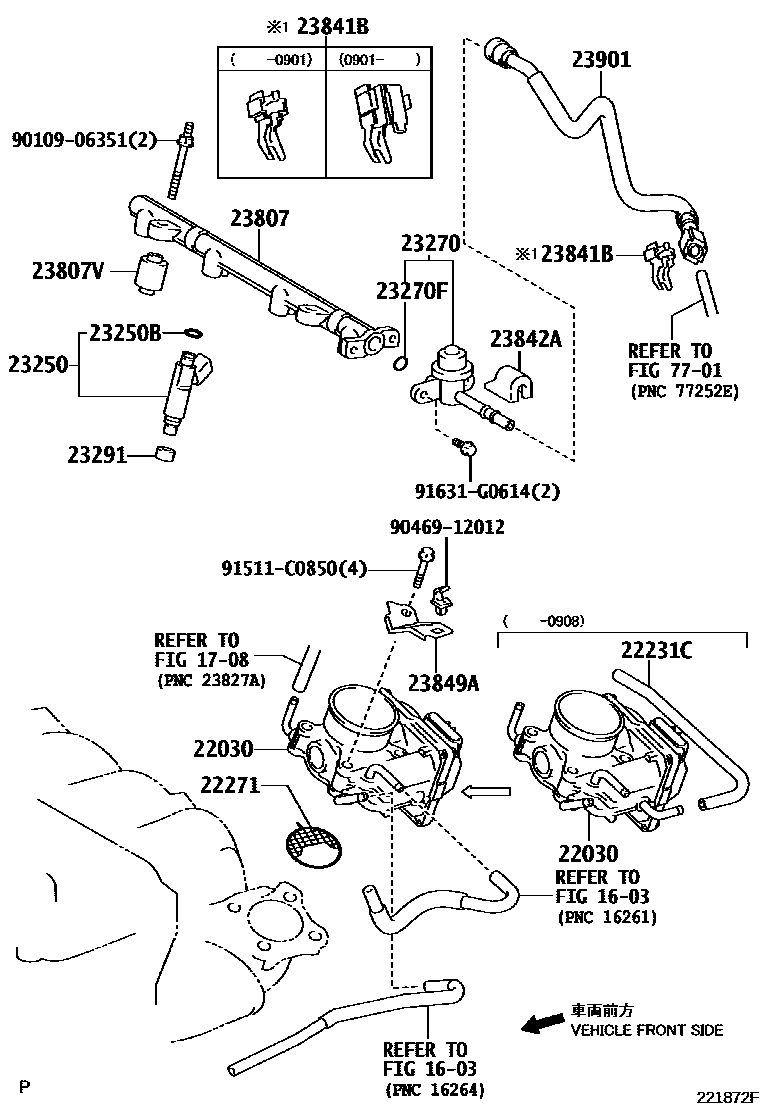

FUEL INJECTION SYSTEM

0001 1 0002 1

1603

1708

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-28070i2AZFE..ACV40200901-200907

main22030-28071i2AZFE..ACV40200908-201109

main22030-31030i2GRFE..GSV40200601-200903

22231CHOSE, THROTTLE BODY, NO.1

main22231-28060i2AZFE..ACV40200601-200903

22271GASKET, THROTTLE BODY

main22271-31040i2GRFE..GSV40200601-200903

main22271-75031i2AZFE..ACV40200901-201109

23250INJECTOR ASSY, FUEL

main23209-28080×4i2AZFE..ACV40200601-200903

*195

main23209-31050×6i2GRFE..GSV40200901

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024×4i2AZFE..ACV40200601-200607

*195

main90301-07033×6i2GRFE..GSV40200901

main90301-07037×4i2AZFE..ACV40200607-200903

*195

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-28050i2AZFE..ACV40200601-200702

main23270-28051i2AZFE..ACV40200702-200801

main23270-28052i2AZFE..ACV40200801-200903

main23270-31010i2GRFE..GSV40200601-200708

sub23270-31080

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i2AZFE..ACV40200601-200903

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×6i2GRFE..GSV40200901

main23291-41010×4i2AZFE..ACV40200901

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-31040i2GRFE..GSV40200601-200708

main23807-31090i2GRFE..GSV40200708-200903

main23814-28031i2AZFE..ACV40200601-200903

sub23814-28060

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08053×2i2AZFE..ACV40200601-200903

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i2AZFE..ACV40200607-200903

main23841-28010i2AZFE..ACV40200601-200606

main23841-31070i2AZFE..ACV40200901

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i2AZFE..ACV40200601-200903

main23842-31040i2GRFE..GSV40200601-200903

23849ASUPPORT, FUEL PIPE

main23849-28050i2AZFE..ACV40200601-200903

23901TUBE SUB-ASSY, FUEL

main23901-28320i2AZFE..ACV40200601-200903

main23901-31060i2GRFE..GSV40200601-200903

7701

9010906351

main90109-06351

9046912012

main90469-12012

91511C0850

main91511-C0850

91631G0614

main91631-G0614

21 parts on this diagram · 2 diagrams in section
