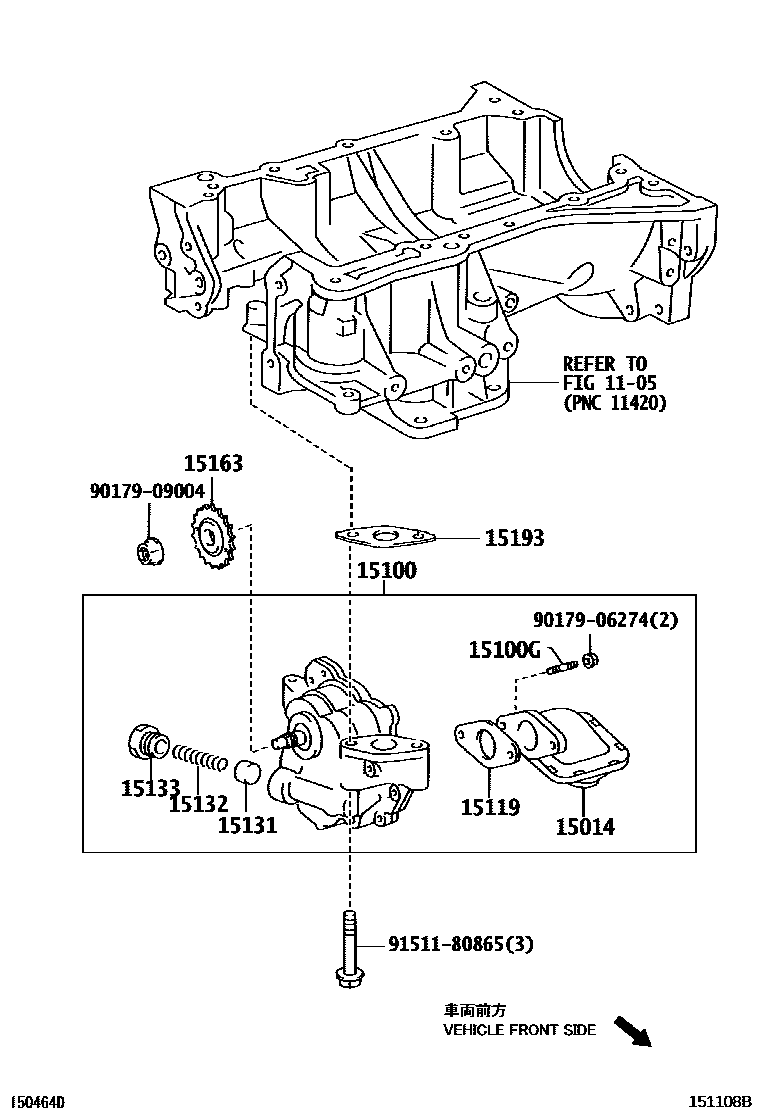

ENGINE OIL PUMP

0001 1 0002 1

1105

15014STRAINER SET, OIL PUMP

main15014-28020i2AZFE..ACV40¥2,170200901-201109

main15014-28020i2AZFE..ACV40¥2,170200601-200903

*195

15100PUMP ASSY, OIL

main15100-28020i2AZFE..ACV40¥16,800200601-200903

*195

main15100-28020i2AZFE..ACV40¥16,800200901-201109

15100GBOLT,STUD(FOR OIL PUMP)

main15183-28020i2AZFE..ACV40¥280200601-200903

*195

main15183-28020i2AZFE..ACV40¥280200901-201109

15119GASKET, OIL PUMP COVER

main15119-28020i2AZFE..ACV40¥580200601-200903

*195

main15119-28020i2AZFE..ACV40¥580200901-201109

15131VALVE, OIL PUMP RELIEF

main15131-17010i2GRFE..GSV40¥360200601-201109

main15131-46040i2AZFE..ACV40¥310200901-201109

main15131-46040i2AZFE..ACV40¥310200601-200903

*195

15132SPRING, OIL PUMP RELIEF VALVE

main15132-46020i2GRFE..GSV40¥210200601-200903

*195

main15132-46020i2AZFE..ACV40¥210200901-201109

15133PLUG, OIL PUMP RELIEF VALVE

main15133-28020i2AZFE..ACV40¥260200601-200903

*195

main15133-28020i2AZFE..ACV40¥260200901-201109

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-28010i2AZFE..ACV40¥390200601-200903

*195

main15163-28010i2AZFE..ACV40¥390200901-201109

15193GASKET, OIL PUMP

main15193-28010i2AZFE..ACV40¥700200601-200903

*195

main15193-28010i2AZFE..ACV40¥700200901-201109

main15193-31020i2GRFE..GSV40¥220200601-201109

9017906274

main90179-06274¥70

9017909004

main90179-09004¥90

9151180865

main91511-80865¥130

13 parts on this diagram · 2 diagrams in section
