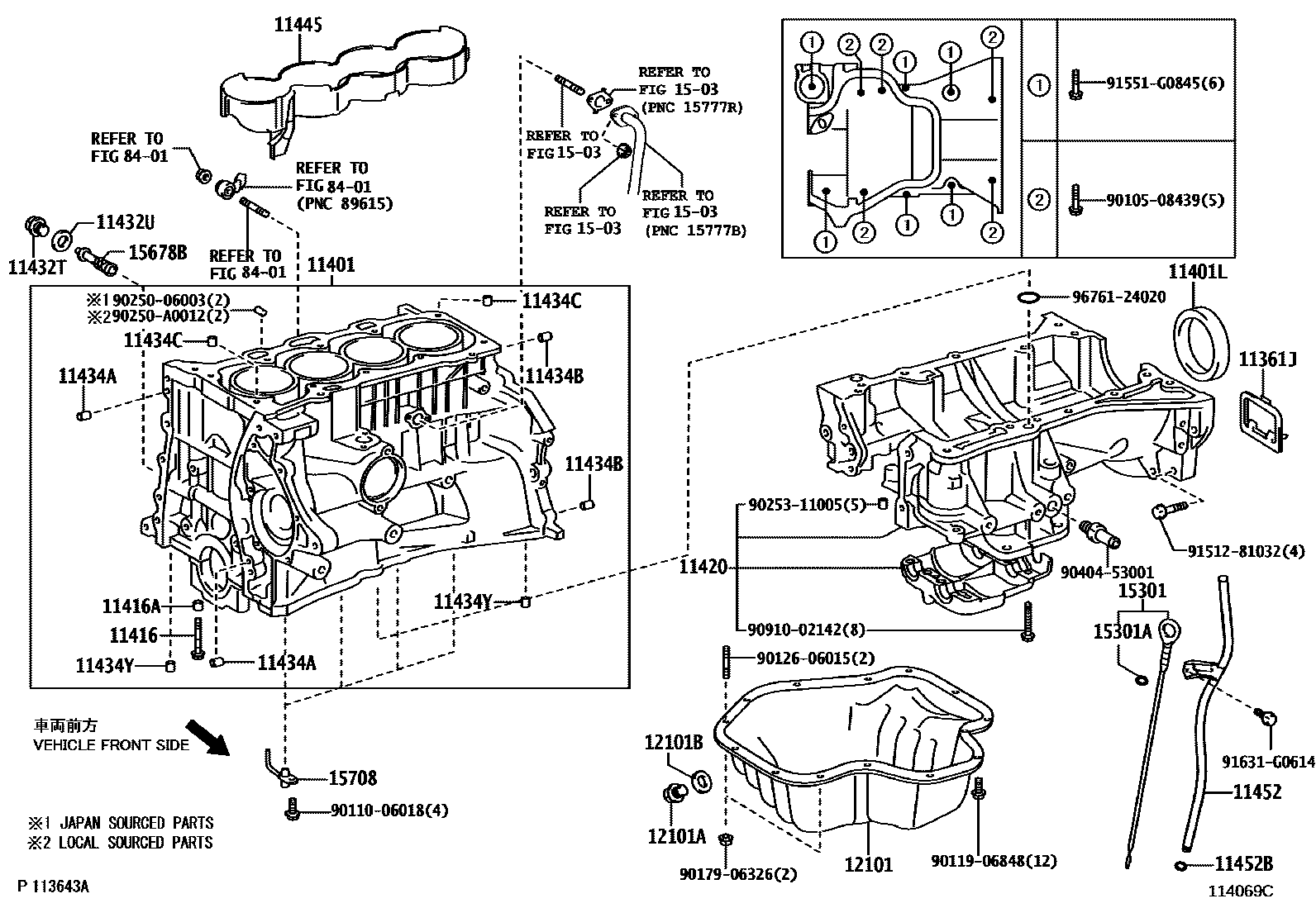

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11401LSEAL, ENGINE REAR OIL
sub90311-89007
11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)
(J)
11420CRANKCASE ASSY, STIFFENING
(L)
(J)
11432TPLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR CYLINDER BLOCK)
11432UGASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=12,OD=4.0
L=18,OD=8
11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)
L=22,OD=10
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=18,OD=8
L=12,OD=14
11434YPIN, STRAIGHT(FOR OIL PAN)
11445SPACER, CYLINDER BLOCK WATER JACKET
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
1503
15301ARING, O(FOR OIL LEVEL GAGE)
15678BFILTER, OIL CONTROL VALVE
8401
9010508439
main90105-08439
9011006018
main90110-06018
9011906848
main90119-06848
9012606015
main90126-06015
9017906326
main90179-06326
9025006003
main90250-06003
90250A0012
main90250-A0012
9025311005
main90253-11005
9040453001
main90404-53001
9091002142
main90910-02142
9151281032
main91512-81032
91551G0845
main91551-G0845
91631G0614
main91631-G0614
9676124020
main96761-24020
38 parts on this diagram · 2 diagrams in section
