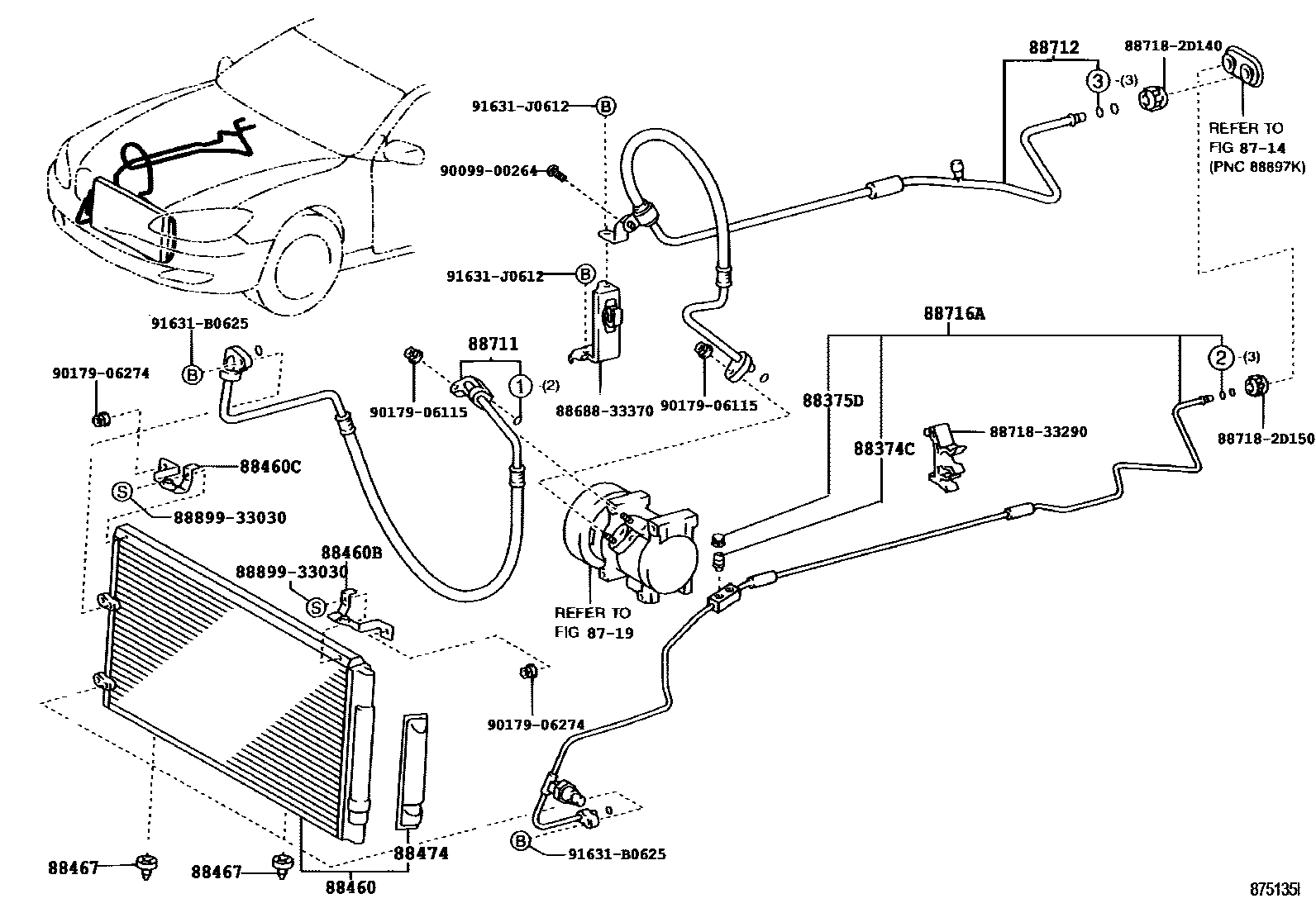

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1O-RING

8714

8719

88374CVALVE, SERVICE, NO.2

main88374-30010iACV3#,MCV30..LHD200108-200406

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iACV3#,MCV30..LHD200108-200406

88460CONDENSER ASSY, COOLER

main88460-06140iACV3#,MCV30..LHD200108-200406

main88460-0W020iACV3#,MCV30..RHD200109-200312

main88460-0W040iACV3#,MCV30..RHD200312-200406

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-06120iACV3#,MCV30200108-200601

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-06140iACV3#,MCV30200108-200601

88467CUSHION, COOLER CONDENSER, NO.1

main88467-06060iACV3#,MCV30..LHD200108-200406

main88467-33050iACV3#,MCV30..LHD200406

88474DRYER, COOLER

main88474-47010iACV3#,MCV30200108-200406

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-33160iMCV30200108-200406

main88711-33170iACV3#..RHD200109-200406

main88711-33180iACV3#..LHD200108-200406

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-33260iMCV30..RHD200109-200406

main88704-33270iMCV30..LHD200108-200406

main88704-33280iACV3#..RHD200109-200406

main88704-33290iACV3#..LHD200108-200406

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88710-33260iACV3#,MCV30..LHD200108-200406

main88716-33370iACV3#,MCV30..RHD200109-200406

8868833370BRACKET, COOLER DIAPHRAGM

main88688-33370

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8871833290PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33290

8889933030COVER, EVAPORATOR

main88899-33030

9009900264

main90099-00264

9017906115

main90179-06115

9017906274

main90179-06274

91631B0625

main91631-B0625

91631J0612

main91631-J0612

22 parts on this diagram · 7 diagrams in section
