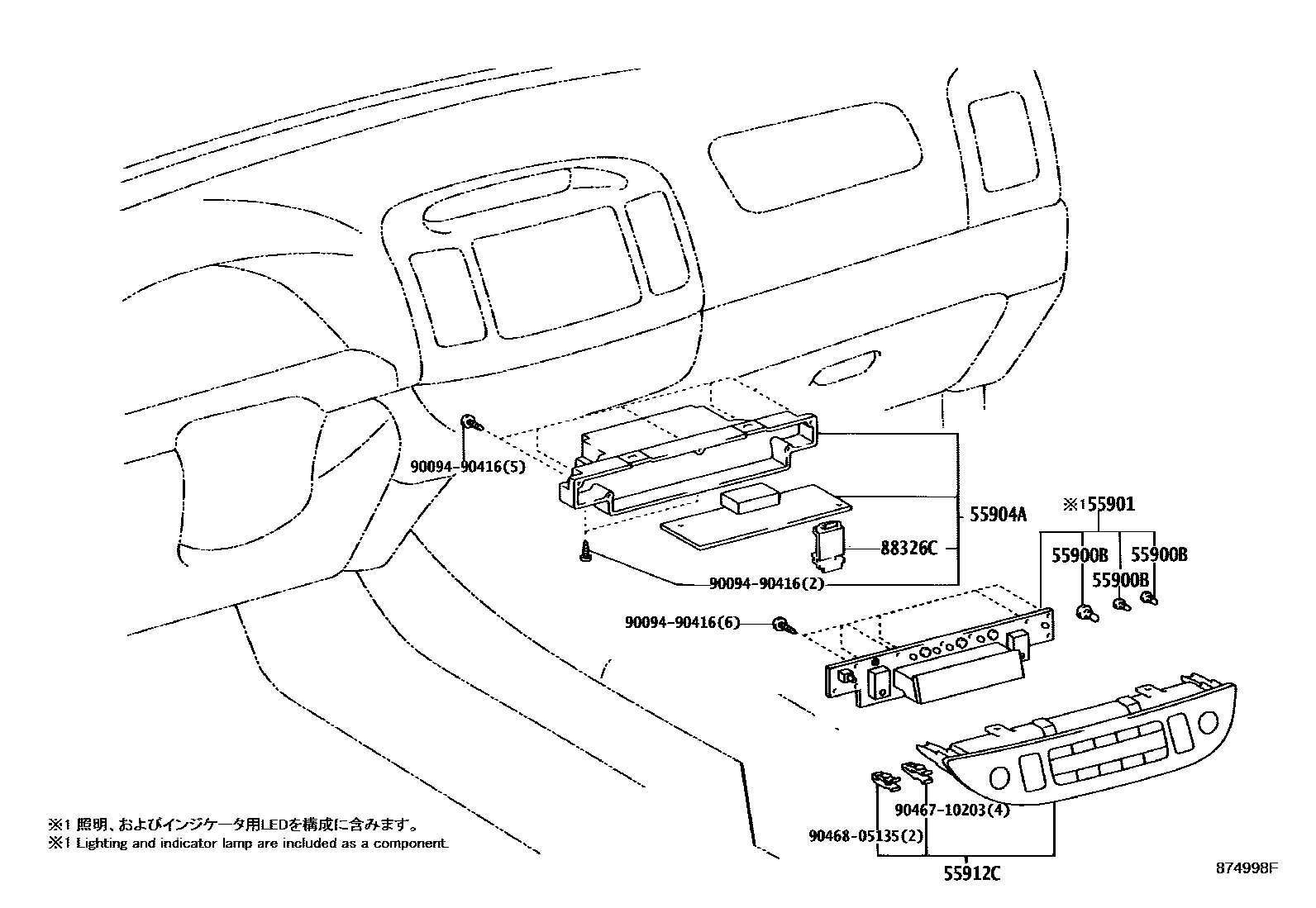

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTOROL PANEL 0002 1AIR DUCT 0003 1AIR DUCT 0004 1SENSOR

55900BBULB, AIR CONDITIONER CONTROL

main90010-03054iACV3#,MCV30200108-200601

14V 0.84W,HAZARD(ILLUMINATION)

main90010-03055iACV3#,MCV30200108-200601

14V 0.84W,W(CAP),SWITCH ILLUMINATION

main90010-03056iACV3#,MCV30200108-200601

14V 1.4W,W(CAP),FOR LCD ILLUMINATION

55901BASE SUB-ASSY, HEATER CONTROL

main55901-33010iACV3#,MCV30..LHD200108-200406

main55901-33020iACV31..RHD200109-200406

HONG KONG SPEC

main55901-33020iACV3#,MCV30..RHD200406

main55901-33030iACV31..RHD200109-200208

SINGAPORE SPEC

55904AHOUSING SUB-ASSY, HEATER CONTROL

main55904-33100iACV3#,MCV30200108-200406

55912CHOUSING, HEATER CONTROL

main55912-33070iACV3#,MCV30..LHD200108-200406

main55912-33080iACV31..RHD200109-200406

HONG KONG SPEC

sub55912-33240

main55912-33080iACV3#,MCV30..RHD200406

sub55912-33240

main55912-33090iACV30,MCV30..RHD..ATM200109-200208

SINGAPORE SPEC

88326CPLATE, COVER

main88326-63010iACV3#,MCV30200108-200406

9009490416

main90094-90416

9046710203

main90467-10203

9046805135

main90468-05135

8 parts on this diagram · 4 diagrams in section
