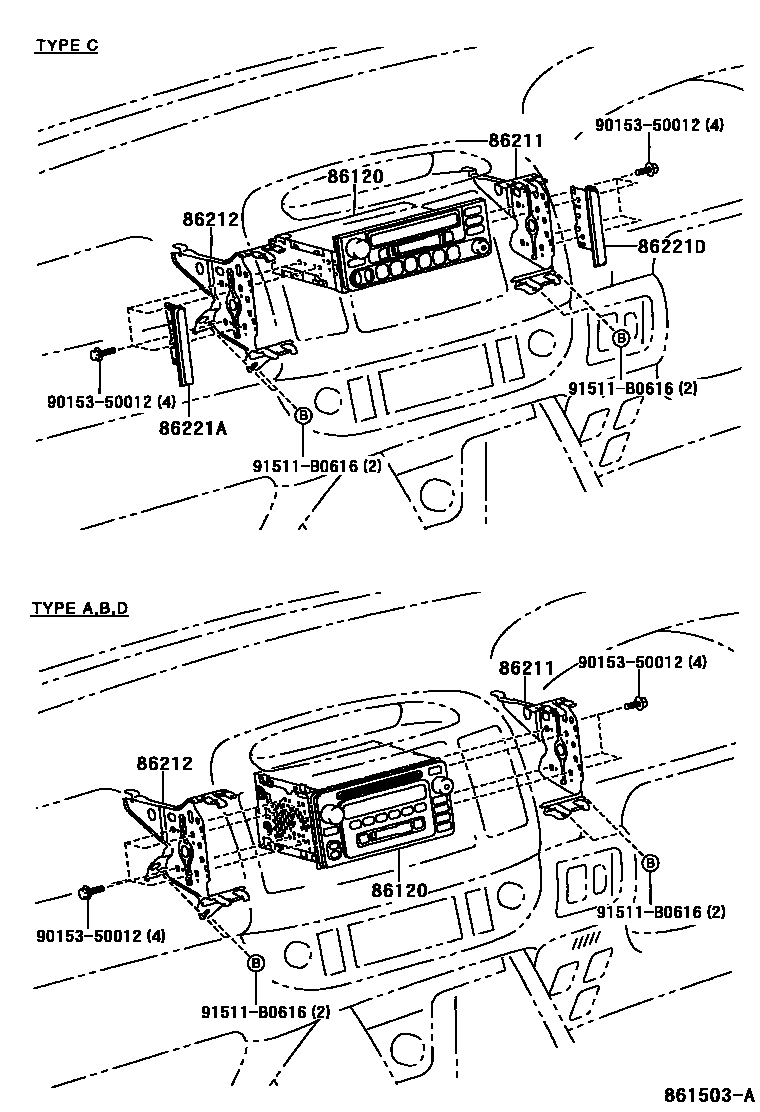

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-28351iACV30,MCV30200108-200307

FUJITSU TEN,ID=18303,TYPE A:REFER TO ILLUSTRATION

main86120-28382iACV30,MCV30200108-200406

MATSUSHITA, ID=58805,TYPE B:REFER TO ILLUSTRATION

main86120-28470iACV30,MCV30..LHD..ATM200406

MATSUSHITA, ID=58809,TURKEY SPEC

main86120-33440iACV30,MCV30200406

MATSUSHITA,ID=57413,10KILOHERTS STEP;TYPE D:REFER TO ILLUSTRATION

main86120-33440iACV30,MCV30200108-200406

MATSUSHITA,ID=57413,10KILOHERTS STEP;TYPE C:REFER TO ILLUSTRATION

main86120-33450iACV30,MCV30200108-200406

FUJITSU TEN,ID=17808,10KILOHERTS STEP;TYPE D:REFER TO ILLUSTRATION

main86120-33460iACV30..RHD..MTM200108-200406

MATSUSHITA,ID=57412,9KILOHERTS STEP;TYPE C:REFER TO ILLUSTRATION

main86120-33470iACV30..LHD..MTM;ACV3#,MCV30..ATM200108-200406

FUJITSU TEN,ID=17809,9KILOHERTS STEP;TYPE D:REFER TO ILLUSTRATION

main86120-33470iACV30..RHD..MTM200208-200406

FUJITSU TEN,ID=17809,INDIA SPEC

main86120-33690iACV30,MCV30200406

FUJITSU TEN,ID=17827,10KILOHERTS STEP;TYPE D:REFER TO ILLUSTRATION

main86120-33700iACV31..RHD;ACV30,MCV30200406

FUJITSU TEN,ID=17828,9KILOHERTS STEP;TYPE D:REFER TO ILLUSTRATION

main86120-44090iACV30,MCV30200307-200406

FUJITSU TEN,ID=18305,TYPE A:REFER TO ILLUSTRATION

86211BRACKET, RADIO, NO.1

main86211-33160iACV3#,MCV30200108-200601

86212BRACKET, RADIO, NO.2

main86212-33160iACV3#,MCV30200108-200601

86221APANEL, RADIO RECEIVER

main86221-52050iACV3#,MCV30200108-200406

86221DPANEL, RADIO RECEIVER

main86221-52060iACV3#,MCV30200108-200406

9015350012

main90153-50012

91511B0616

main91511-B0616

7 parts on this diagram · 3 diagrams in section
