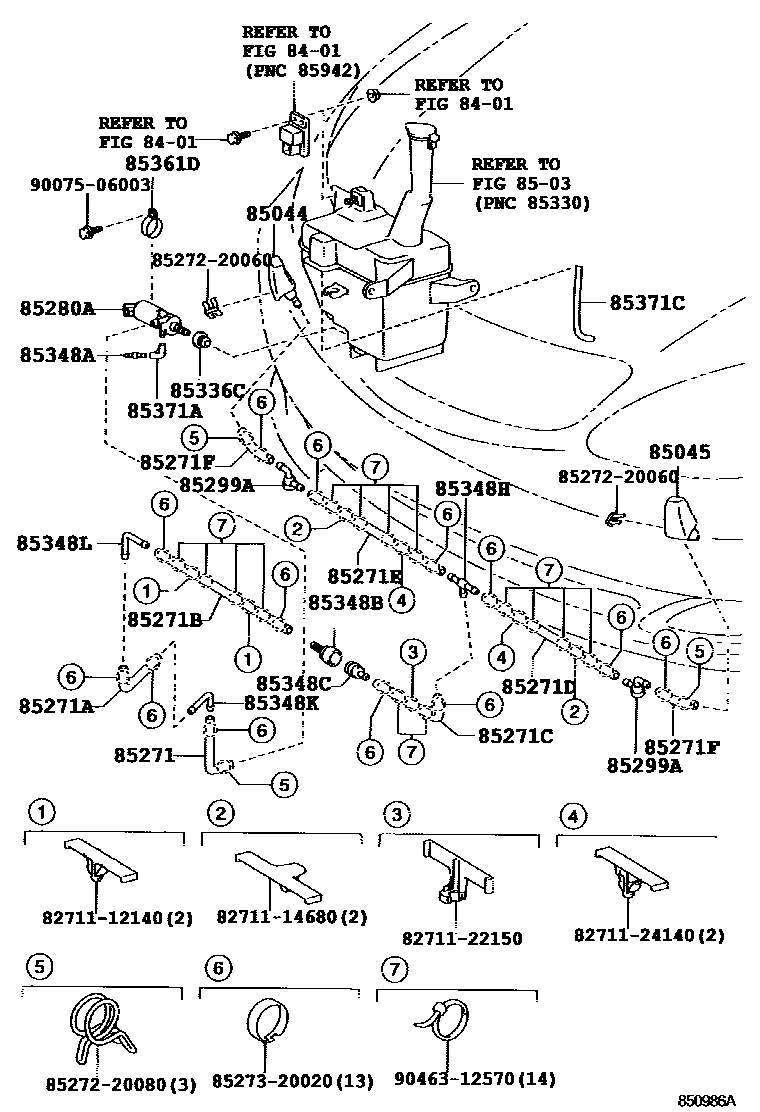

HEADLAMP CLEANER
8401
8503
85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH
85271HOSE, HEADLAMP CLEANER, NO.1
sub85275-44050
85271BHOSE, HEADLAMP CLEANER, NO.3
85271CHOSE, HEADLAMP CLEANER, NO.4
85271DHOSE, HEADLAMP CLEANER, NO.5
L=680
L=610
85271EHOSE, HEADLAMP CLEANER, NO.6
L=570
L=640
85271FHOSE, HEADLAMP CLEANER, NO.7
L=45
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85299AVALVE ASSY, CHECK
85336CPACKING, HEADLAMP CLEANER MOTOR
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
85348HJOINT, HEADLAMP CLEANER HOSE, NO.4
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
85361DBRACKET, HEADLAMP CLEANER, NO.2
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
L=15
85371CHOSE, HEADLAMP CLEANER, NO.1
L=275
8271112140WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12140
8271114680WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14680
8271122150WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-22150
8271124140WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-24140
8527220060CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-20060
8527220080CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-20080
8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH
main85273-20020
9007506003
main90075-06003
9046312570
main90463-12570
32 parts on this diagram · 1 diagram in section
