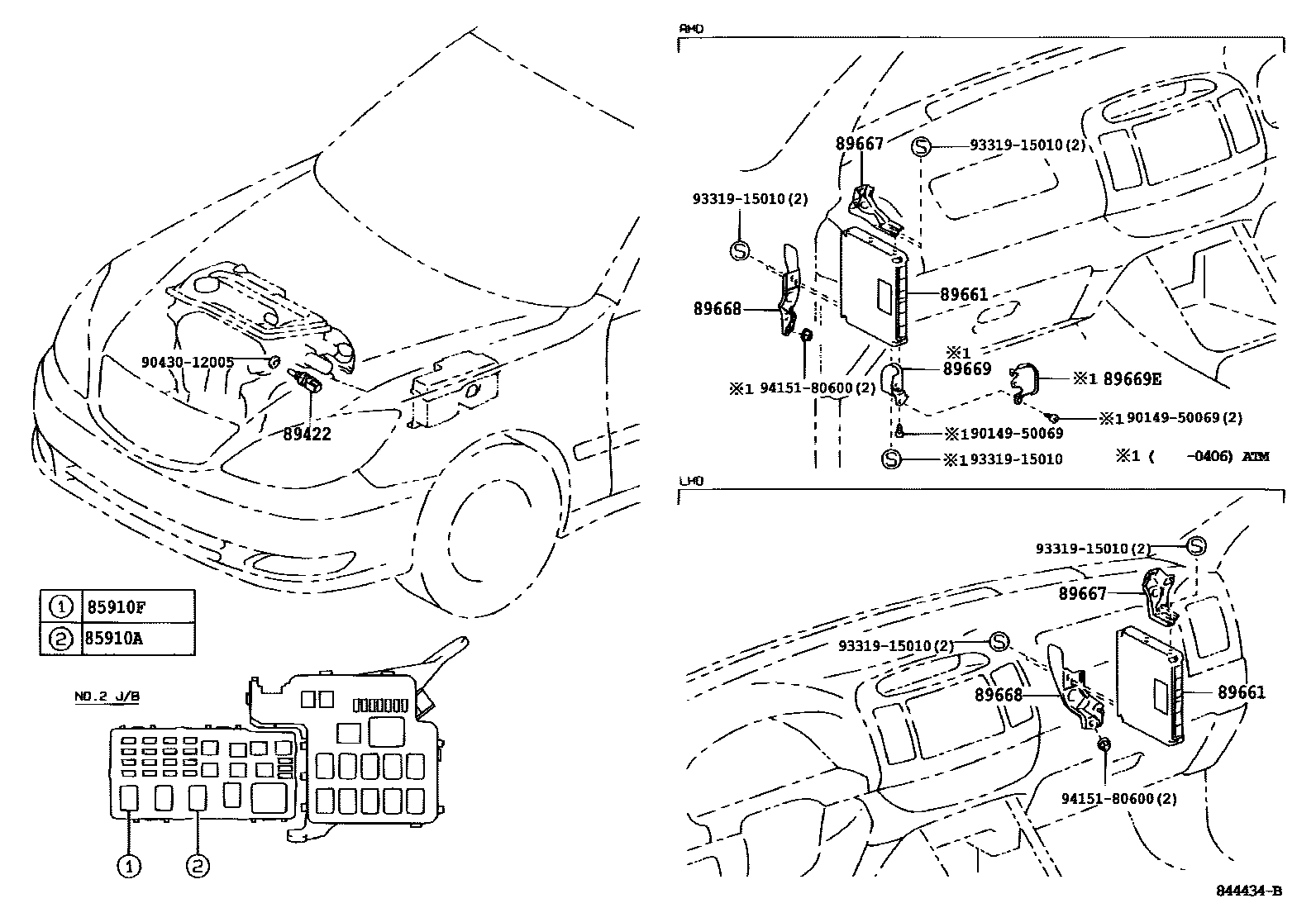

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iACV3#,MCV30200108-200303

main90987-02027iACV3#,MCV30200303-200406

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iACV3#,MCV30200108-200303

main90987-02027iACV3#,MCV30200303-200406

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-06010iACV3#200208-200406

(L)

main89422-16010iACV3#200108-200208

main89422-33020iMCV30200108-200406

P/N LABEL=8942233020

main89422-33030iACV3#200208-200406

(J)

main89422-35010iMCV30200108-200406

P/N LABEL=8942235010

89661COMPUTER, ENGINE CONTROL

main89661-33D30iACV31..LHD200506

main89661-33D40iACV30..LHD..ATM200506

main89661-3T560iACV30..MTM200108-200406

PART NUMBER LABEL=89661-3T560

main89661-3T570iACV30..LHD..ATM200108-200406

PART NUMBER LABEL=89661-3T570

main89661-3T580iACV30..ATM200108-200406

PART NUMBER LABEL=89661-3T580

main89661-3T590iACV30..RHD..ATM200108-200406

PART NUMBER LABEL=89661-3T590

main89661-3T610iACV30..MTM200108-200406

PART NUMBER LABEL=89661-3T610

main89661-3T640iACV31..RHD200108-200506

PART NUMBER LABEL=89661-3T640

main89661-3T650iACV31..RHD200208-200406

PART NUMBER LABEL=89661-3T650

main89661-3T670iMCV30..LHD200108-200202

PART NUMBER LABEL=89661-3T670

main89661-3T671iMCV30..LHD200202-200303

PART NUMBER LABEL=89661-3T671

sub89661-3T673

main89661-3T673iMCV30..LHD200303-200406

PART NUMBER LABEL=89661-3T673

main89661-3T690iMCV30200108-200202

PART NUMBER LABEL=89661-3T690

main89661-3T691iMCV30200202-200406

PART NUMBER LABEL=89661-3T691

main89661-3T700iMCV30..RHD200109-200202

PART NUMBER LABEL=89661-3T700

main89661-3T701iMCV30..RHD200202-200303

PART NUMBER LABEL=89661-3T701

sub89661-3T703

main89661-3T703iMCV30..RHD200303-200406

PART NUMBER LABEL=89661-3T703

main89661-3T710iMCV30200108-200202

PART NUMBER LABEL=89661-3T710

main89661-3T711iMCV30200202-200303

PART NUMBER LABEL=89661-3T711

sub89661-3T712

main89661-3T712iMCV30..RHD200303-200406

PART NUMBER LABEL=89661-3T712

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-33120iACV30,MCV30..LHD200108-200505

main89667-33130iACV3#,MCV30..RHD200109-200406

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-33140iACV31..LHD200108-200505

main89668-33150iACV3#,MCV30..RHD200109-200406

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-33010iACV30,MCV30..RHD200109-200406

89669EBRACKET, ENGINE CONTROL COMPUTER, NO.4

main89669-33020iACV30,MCV30..RHD200109-200406

9014950069

main90149-50069

9043012005

main90430-12005

9331915010

main93319-15010

9415180600

main94151-80600

12 parts on this diagram · 2 diagrams in section
